Place of Origin:
original
Brand Name:
STMICROELECTRONICS
Model Number:
VNH5180A
Contact Us

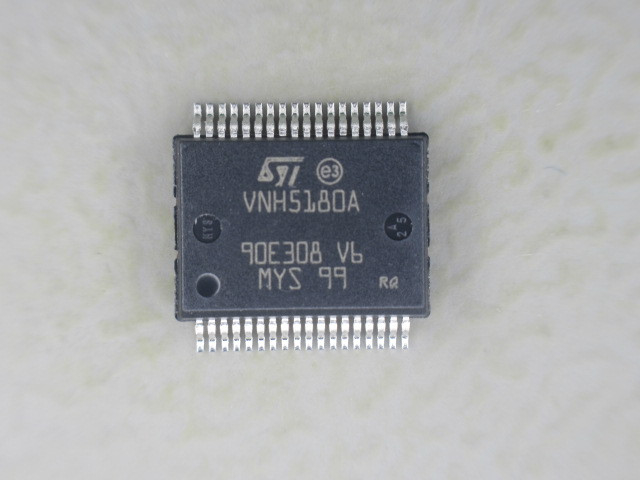

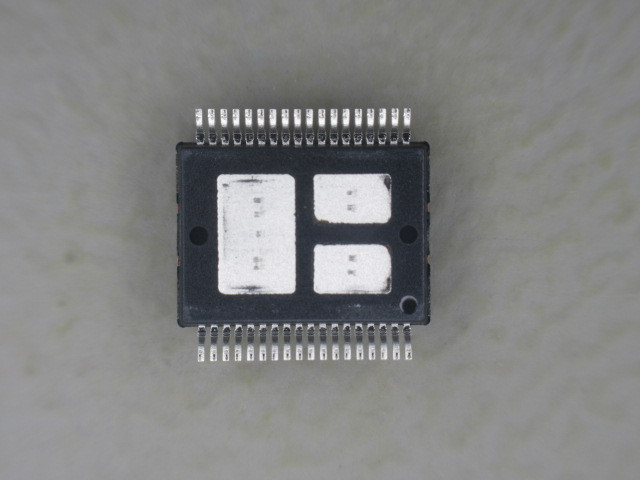

The h-bridge VNH5180ATR-E stepper motor driver, developed by STMicroelectronics, can help you automate different machines such as hydraulic pumps and linear actuators. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This motor controller has a minimum operating temperature of -40 °C and a maximum of 150 °C. This device has a minimum operating supply voltage of 5.5 V and a maximum of 18 V.
| Product Technical Specifications | |
| EU RoHS | Compliant with Exemption |
| ECCN (US) | EAR99 |
| Part Status | Active |
| HTS | 8542.39.00.01 |
| SVHC | Yes |
| SVHC Exceeds Threshold | Yes |
| Automotive | Yes |
| PPAP | Unknown |
| Type | Motor Driver |
| Output Configuration | H-Bridge |
| Minimum Operating Supply Voltage (V) | 5.5 |
| Operating Supply Voltage (V) | 5.5 to 18 |
| Maximum Operating Supply Voltage (V) | 18 |
| Maximum Operating Current (mA) | 6 |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Temperature (°C) | 150 |
| Packaging | Tape and Reel |
| Mounting | Surface Mount |
| Package Height | 2.4(Max) |
| Package Width | 7.6(Max) |
| Package Length | 10.5(Max) |
| PCB changed | 36 |
| Standard Package Name | SOP |
| Supplier Package | PowerSSO EP |
| Pin Count | 36 |
| Lead Shape | Gull-wing |
