Place of Origin:
original
Brand Name:
SANKEN
Certification:
ISO 9001
Model Number:
STA408A
Contact Us

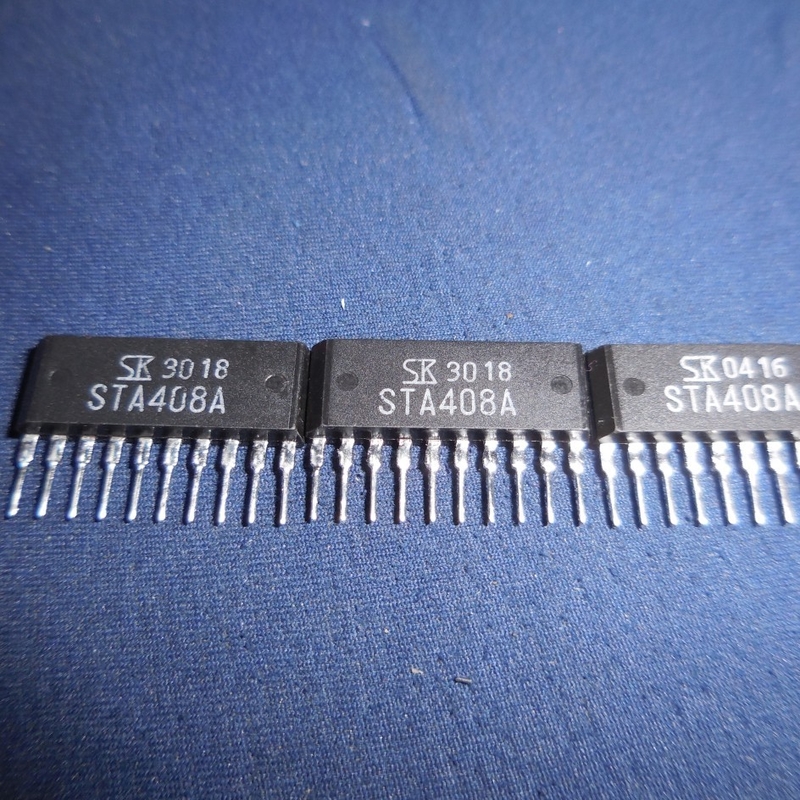

Integrated Circuit Chip IC Microcontroller Brand New Original Unused
| EAR99 | |
| Part Status | Obsolete |
| Automotive | No |
| PPAP | No |
| Type | PNP |
| Configuration | Quad |
| Number of Elements per Chip | 4 |
| Maximum Collector-Emitter Voltage (V) | 120 |
| Maximum Collector Base Voltage (V) | 120 |
| Maximum Emitter Base Voltage (V) | 6 |
| Maximum Base Emitter Saturation Voltage (V) | 2.5@4mA@2A |
| Maximum Continuous DC Collector Current (A) | 4 |
| Maximum Collector Cut-Off Current (uA) | 10 |
| Maximum Collector-Emitter Saturation Voltage (V) | 1.5@4mA@2A |
| Minimum DC Current Gain | 2000@2A@4V |
| Maximum Power Dissipation (mW) | 4000 |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Temperature (°C) | 150 |
| Mounting | Through Hole |
| Package Height | 9 |
| Package Width | 4 |
| Package Length | 25.25 |
| PCB changed | 10 |
| Standard Package Name | SIP |
| Supplier Package | SIP |
| Pin Count | 10 |
| Lead Shape | Through Hole |
