Place of Origin:
original
Brand Name:
INFINEON
Model Number:

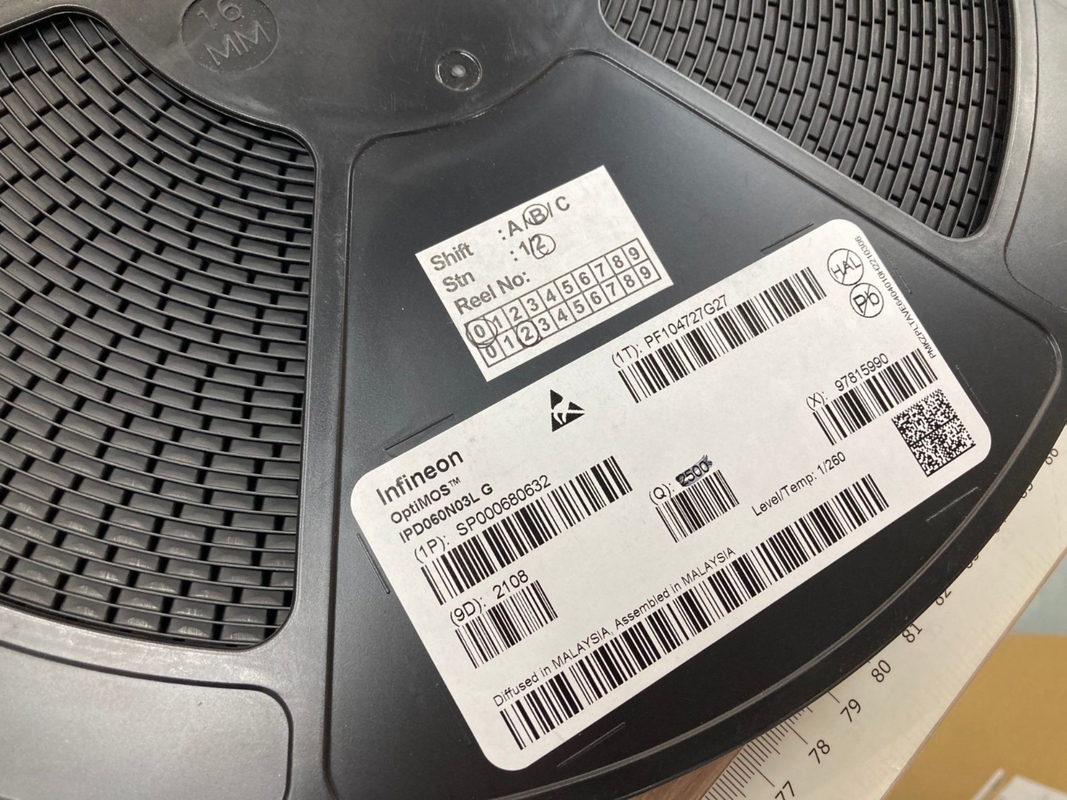

IPD060N03LG
Contact Us
Application:
Battery protection circuit
DC-DC converter
motor drive
Conclusion:
Low conduction resistance
High temperature stability and reliability
Low quiescent current in linear mode
Equipped with anti reverse polarity protection
Parameters:
Conduction resistance: 6 m Ω (maximum)
Static leakage current: 10 μ A (maximum value)
Static leakage current: 100 μ A (maximum value)
Threshold voltage: 2.5V
Maximum dissipation power: 180W
Working temperature: -55 ℃~175 ℃
Packaging:
D2PAK (TO-252) packaging
| Product Technical Specifications | |
| EU RoHS | Compliant with Exemption |
| ECCN (US) | EAR99 |
| Part Status | Unconfirmed |
| SVHC | Yes |
| SVHC Exceeds Threshold | Yes |
| Automotive | No |
| PPAP | No |
| Product Category | Power MOSFET |
| Configuration | Single |
| Process Technology | OptiMOS |
| Channel Mode | Enhancement |
| Channel Type | N |
| Number of Elements per Chip | 1 |
| Maximum Drain Source Voltage (V) | 30 |
| Maximum Gate Source Voltage (V) | ±20 |
| Maximum Continuous Drain Current (A) | 50 |
| Maximum Drain Source Resistance (mOhm) | 6@10V |
| Typical Gate Charge @ Vgs (nC) | 10.8@4.5V|22@10V |
| Typical Gate Charge @ 10V (nC) | 22 |
| Typical Input Capacitance @ Vds (pF) | 1700@15V |
| Maximum Power Dissipation (mW) | 56000 |
| Typical Fall Time (ns) | 3 |
| Typical Rise Time (ns) | 3 |
| Typical Turn-Off Delay Time (ns) | 20 |
| Typical Turn-On Delay Time (ns) | 5 |
| Minimum Operating Temperature (°C) | -55 |
| Maximum Operating Temperature (°C) | 175 |

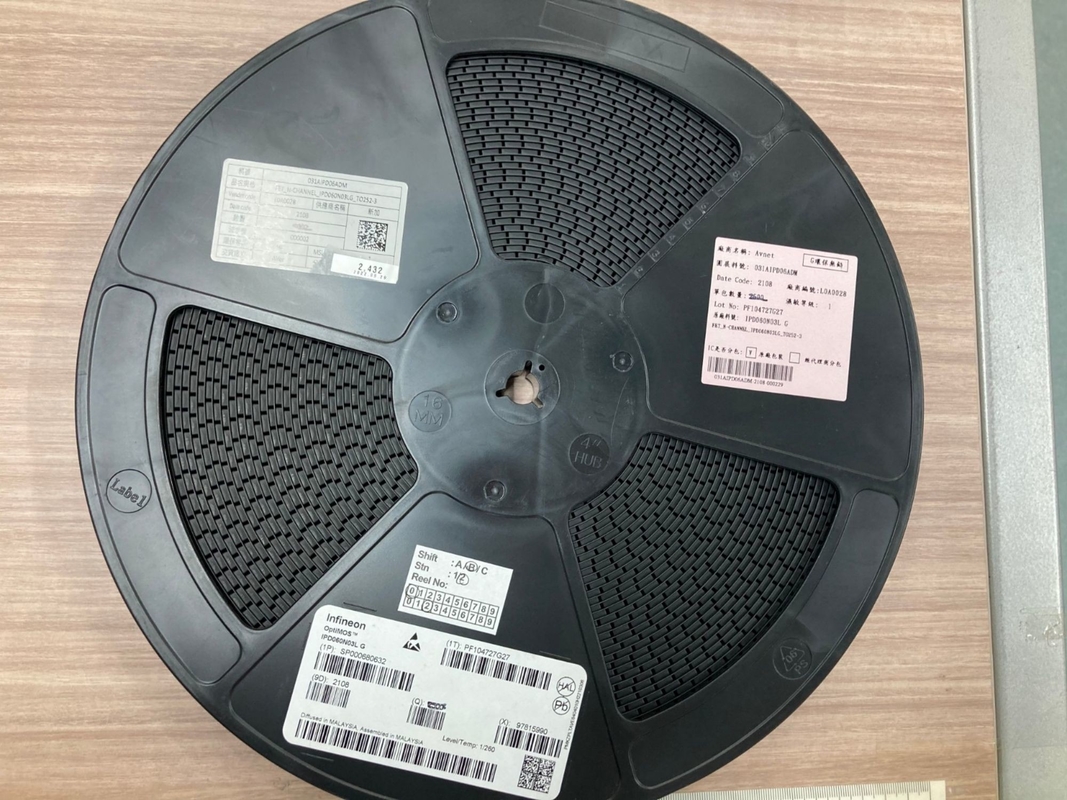

| Packaging | Tape and Reel |
| Mounting | Surface Mount |
| Package Height | 2.3 |
| Package Width | 6.22 |
| Package Length | 6.5 |
| PCB changed | 2 |
| Tab | Tab |

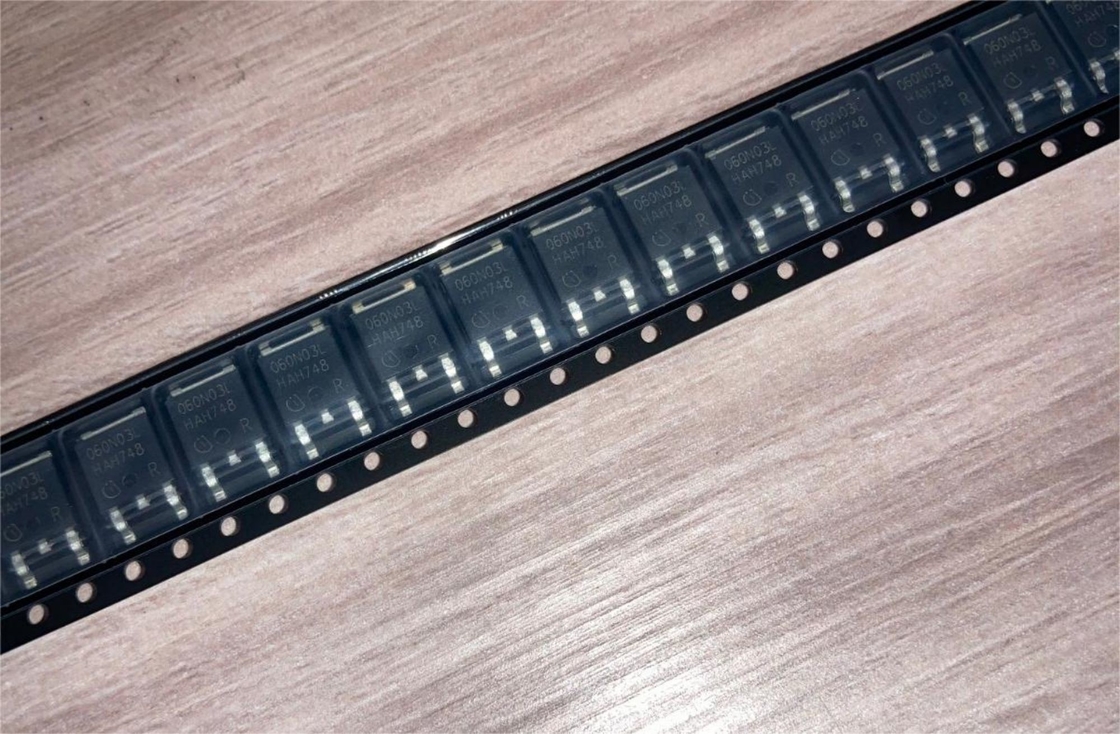

| Standard Package Name | TO-252 |
| Supplier Package | DPAK |
| Pin Count | 3 |
| Tab | Tab |
| Standard Package Name | TO-252 |
| Supplier Package | DPAK |
| Pin Count | 3 |
| Supplier Package | DPAK |
| Pin Count | 3 |
| Lead Shape | Gull-wing |
