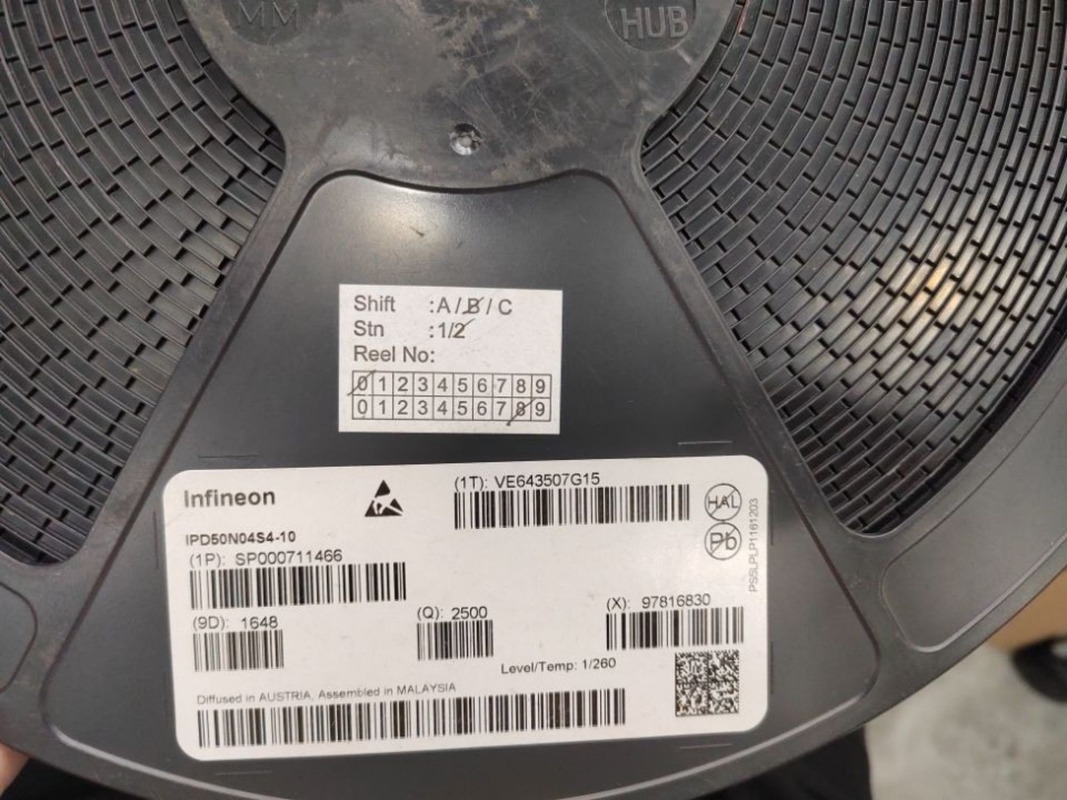

Name: IPD50N04S4-10 TO-252 Integrated circuit chip IC brand new original unused
Brand: HK LIANYIXIN INDUSTRIAL CO., LIMITED
SKU: IPD50N04S4-10
Price: Negotiable USD
Availability: InStock

Home > Products > Ic Integrated Circuit >

IPD50N04S4-10 TO-252 Integrated circuit chip IC brand new original unused

Place of Origin:

original

Brand Name:

INFINEON

Model Number:

IPD50N04S4-10

Request A Quote

Product Details

Quality：:

Brand New Unused

Package / Box::

TO-252

Payment & Shipping Terms

Minimum Order Quantity

1pcs

Price

Negotiate

Packaging Details

4000

Delivery Time

Stock

8000+

Payment Terms

D/A, L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

97830pcs

BSP613PH6327 SOT223 Integrated Circuit Ic Chip

Get Best Price

Video

IPD100N04S402ATMA1 Integrated Power Ic TO-252

Get Best Price

Video

IPD320N20N3G Ic Integrated Circuit TO-252

Get Best Price

Video

IPD90P04P4L-04 TO-252 Ic Integrated Circuit In Motor Drivers

Get Best Price

+8613380499166

kezhiwei@lianyixinic.com

Contact Now

Product Description

ISO9001.pdf

Application: IPD50N04S4-10 is an N-channel MOSFET transistor commonly used in high-performance power switch and motor driver applications.
Conclusion: IPD50N04S4-10 has the characteristics of low leakage current, low conduction resistance, and high temperature stability, which can provide high efficiency and reliability.
Parameters:
Rated voltage: 40V
Rated current: 50A
Conduction resistance: 10m Ω
Constrained capacitance: 1900pF
Maximum working temperature: 175 ℃
Packaging: TO-252-3 (DPAK)

Product Technical Specifications

EU RoHS	Compliant with Exemption聽
ECCN (US)	EAR99
Part Status	Unconfirmed
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	Yes
PPAP	Unknown
Product Category	Power MOSFET
Configuration	Single
Process Technology	OptiMOS
Channel Mode	Enhancement
Channel Type	N
Number of Elements per Chip	1
Maximum Drain Source Voltage (V)	40
Maximum Gate Source Voltage (V)	卤20
Maximum Continuous Drain Current (A)	50
Maximum Drain Source Resistance (mOhm)	9.3@10V
Typical Gate Charge @ Vgs (nC)	14@10V
Typical Gate Charge @ 10V (nC)	14
Typical Input Capacitance @ Vds (pF)	1100@25V
Maximum Power Dissipation (mW)	41000
Typical Fall Time (ns)	5
Typical Rise Time (ns)	7
Typical Turn-Off Delay Time (ns)	4
Typical Turn-On Delay Time (ns)	5
Minimum Operating Temperature (掳C)	-55
Maximum Operating Temperature (掳C)	175
Supplier Temperature Grade	Automotive
Packaging	Tape and Reel
Mounting	Surface Mount
Package Height	2.3
Package Width	6.22
Package Length	6.5
PCB changed	2
Tab	Tab
Standard Package Name	TO-252
Supplier Package	DPAK
Pin Count	3
