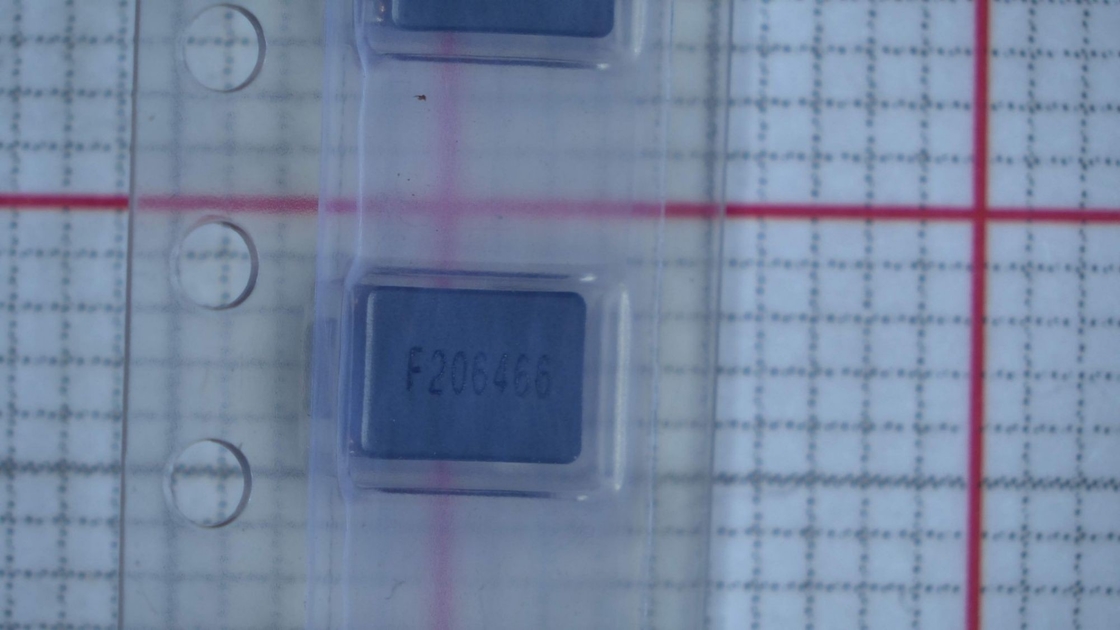

Name: ACT45B-220-2P-TL003 SMD Integrated circuit chip IC brand new original unused
Brand: TDK
SKU: ACT45B-220-2P-TL003
Rating: 4.7 (117 reviews)

Home > Products > Ic Integrated Circuit >

ACT45B-220-2P-TL003 SMD Integrated circuit chip IC brand new original unused

Place of Origin:

original

Brand Name:

TDK

Model Number:

ACT45B-220-2P-TL003

Request A Quote

Product Details

Quality：:

Brand New Unused

Package / Box::

SMD

Payment & Shipping Terms

Minimum Order Quantity

1pcs

Price

Negotiate

Packaging Details

2000

Delivery Time

Stock

8000+

Payment Terms

D/A, L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

27830pcs

BSP613PH6327 SOT223 Integrated Circuit Ic Chip

Get Best Price

Video

IPD100N04S402ATMA1 Integrated Power Ic TO-252

Get Best Price

Video

IPD320N20N3G Ic Integrated Circuit TO-252

Get Best Price

Video

IPD90P04P4L-04 TO-252 Ic Integrated Circuit In Motor Drivers

Get Best Price

+8613380499166

kezhiwei@lianyixinic.com

Contact Now

Product Description

ISO9001.pdf

Model: ACT45B-220-2P-TL003
Brand: TDK
Packaging: 1812
Description: Number of lines: 2 Impedance @ Frequency: 1.2k Ω @ 10MHz Inductance @ Frequency: 22uH@100kHz DC resistance (DCR): 1 Ω chip common mode filter inductance

Product Technical Specifications

EU RoHS	Compliant聽
ECCN (US)	EAR99
Part Status	Active
HTS	8504.50.80.00
Automotive	Yes
PPAP	Unknown
Type	Signal Line
Configuration	Dual
Number of Lines	2
Inductance (H)	11u
Leakage Inductance (H)	50n
Impedance (Ohm)	600@10MHz
Test Frequency (Hz)	100k
Maximum DC Current (A)	0.25
Maximum DC Resistance (Ohm)	0.6
Minimum Insulation Resistance (Ohm)	10M
Voltage Rating	50VDC
Mounting	Surface Mount
Minimum Operating Temperature (掳C)	-40
Maximum Operating Temperature (掳C)	150
Packaging	Tape and Reel
Product Length (mm)	4.7
Product Depth (mm)	3.4
Product Height (mm)	3
