Place of Origin:
original
Brand Name:
TI
Model Number:
TLVH431BQDBZ
Contact Us
Even in the event of large power supply variations, this TLVH431BQDBZR voltage reference power management device from Texas Instruments can produce and maintain a precise DC voltage. With an output that has a voltage of 1.24 to 18 V, this is power management at its best. Supply your circuit with sufficient power by implementing this, which does not exceed 20 V. It has an initial accuracy of 0.5%. This voltage reference circuit supports shunt topology. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This voltage reference circuit has a minimum operating temperature of -40 °C and a maximum of 125 °C.
| EU RoHS | Compliant |
| ECCN (US) | EAR99 |
| Part Status | Active |
| HTS | 8542.39.00.01 |
| Automotive | No |
| PPAP | No |
| Reference Type | Adjustable |
| Topology | Shunt |
| Initial Accuracy | 0.50% |
| Maximum Temperature Coefficient | 138ppm/°C |
| Output Voltage (V) | 1.24 to 18 |
| Maximum Input Voltage (V) | 20 |
| Maximum Output Current (mA) | 80 |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Temperature (°C) | 125 |

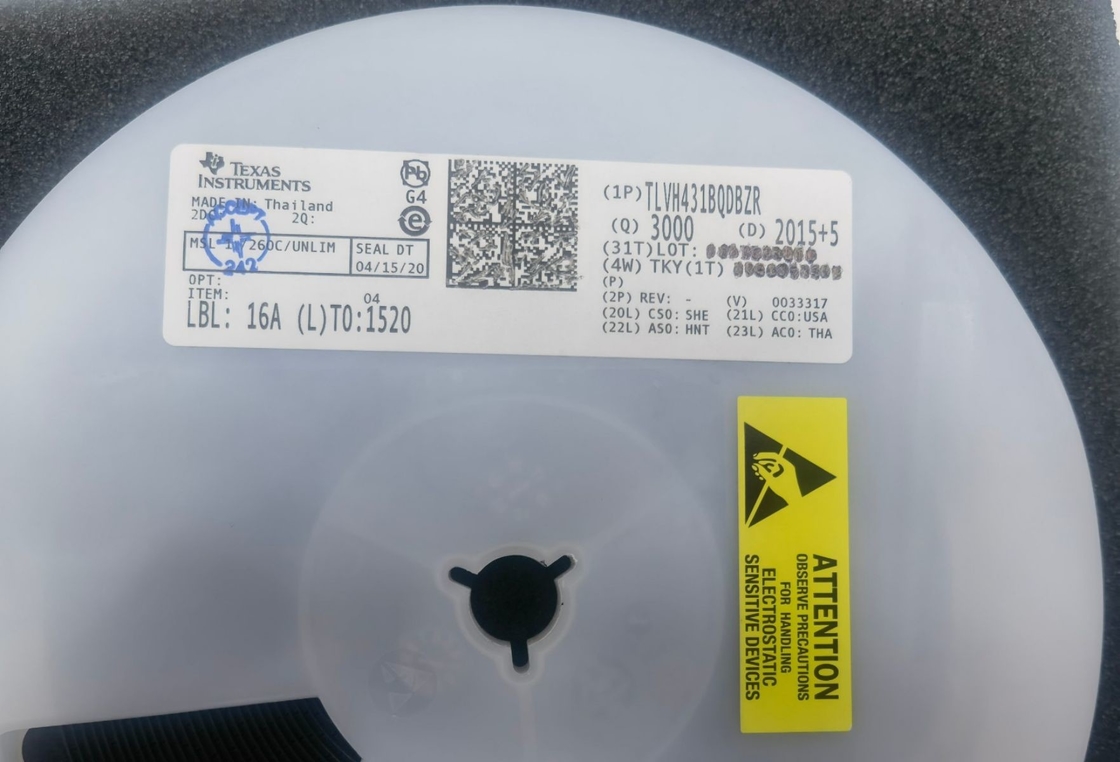

| Packaging | Tape and Reel |
| Mounting | Surface Mount |
| Package Height | 0.95 |
| Package Width | 1.4(Max) |
| Package Length | 3.04(Max) |
| PCB changed | 3 |
| Standard Package Name | SOT |
| Supplier Package | SOT-23 |
| Pin Count | 3 |
| Lead Shape | Gull-wing |
