Place of Origin:
original
Brand Name:
TI
Model Number:
DAC7731E
Contact Us

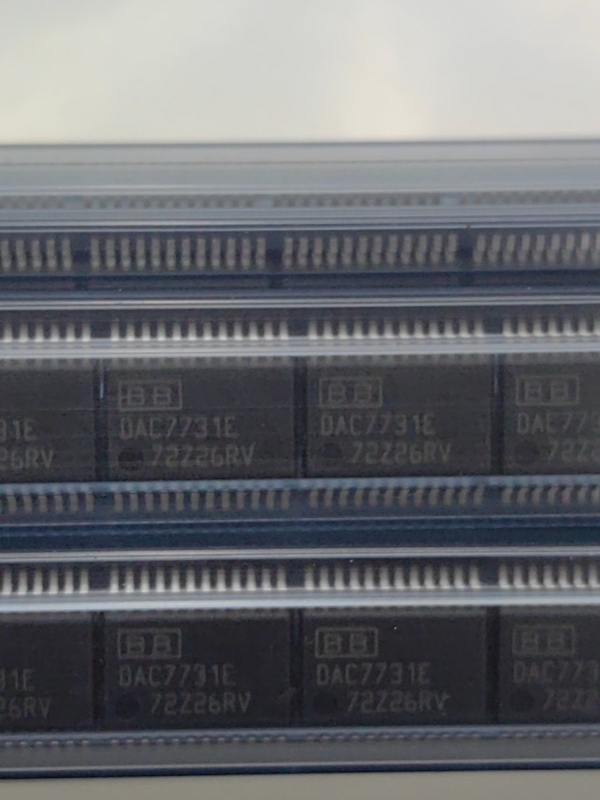

DAC7731E DAC converter, you'll easily be able to convert computerized digital information and translate it into perceptible analog data. This device is based on R-2R architecture. It has a voltage output. This device's digital interface is serial (3-wire, spi). This DAC has a resolution of 16bit. Its typical dual supply voltage is ±15 V, with a minimum of -4.75/11.4 V and maximum of ±15.75 V. This DAC has a minimum operating temperature of -40 °C and a maximum of 85 °C. This device comes in tube packaging. This device uses dual power supplies.
| EU RoHS | Compliant |
| ECCN (US) | EAR99 |
| Part Status | Active |
| HTS | 8542.39.00.01 |
| Automotive | No |
| PPAP | No |
| Converter Type | General Purpose |
| Architecture | R-2R |
| Resolution | 16bit |
| Conversion Rate | 172ksps |
| Number of DAC Channels | 1 |
| Number of Outputs per Chip | 1 |
| Maximum Settling Time (us) | 5 |
| Digital Interface Type | Serial (3-Wire, SPI) |
| Output Type | Voltage |
| Output Polarity | Unipolar|Bipolar |
| Voltage Reference | Internal|External |
| Maximum Dual Supply Voltage (V) | ±15.75 |
| Power Supply Type | Dual |
| Maximum Power Dissipation (mW) | 150 |
| Integral Nonlinearity Error | ±6LSB |
| Full Scale Error | ±0.4%FSR |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Temperature (°C) | 85 |
| Packaging | Tube |
| Mounting | Surface Mount |
| Package Height | 2(Max) - 0.05(Min) |
| Package Width | 5.6(Max) |
| Package Length | 8.5(Max) |
| PCB changed | 24 |
| Standard Package Name | SOP |
| Supplier Package | SSOP |
| Pin Count | 24 |
| Lead Shape | Gull-wing |
