Place of Origin:
original
Brand Name:
TI
Model Number:

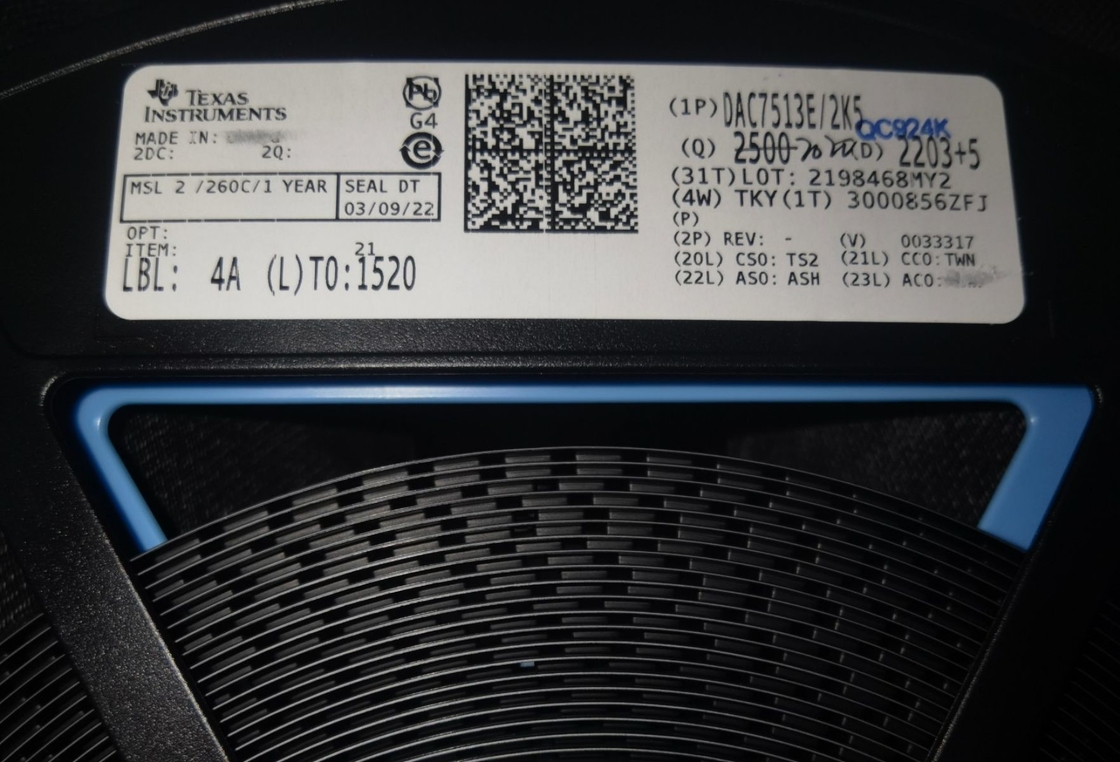

DAC7513E
Contact Us
Application:
DAC7513E is a 12 bit precision digital to analog converter (DAC) widely used in industrial control, instrumentation, automation control and other fields. It can convert digital signals into analog signals and output them to external circuits or devices, achieving the conversion between digital and analog signals.
Conclusion:
The DAC7513E has the advantages of high resolution, high speed, low power consumption, and low noise, and can provide accurate and stable analog output signals, suitable for high demand applications. At the same time, it also has functions such as SPI interface, power regulator, and internal reference voltage, making it convenient for users to use.
Parameters:
Resolution: 12 bits
Power supply voltage: 2.7V-5.5V
Output voltage range: 0V-5V
Output impedance: 0.5 Ω (typical value)
Output current: ± 5mA (typical value)
Working temperature range: -40 ℃ -+125 ℃
Packaging form: VSSOP8
| EU RoHS | Compliant |
| ECCN (US) | EAR99 |
| Part Status | Active |
| HTS | 8542.39.00.01 |
| Automotive | No |
| PPAP | No |
| Converter Type | General Purpose |
| Architecture | Resistor-String |
| Resolution | 12bit |
| Conversion Rate | 95ksps |
| Number of DAC Channels | 1 |
| Number of Outputs per Chip | 1 |
| Maximum Settling Time (us) | 10 |
| Digital Interface Type | Serial (3-Wire, SPI, QSPI, Microwire) |
| Output Type | Voltage |
| Output Polarity | Unipolar |
| Voltage Reference | External |
| Minimum Single Supply Voltage (V) | 2.7 |
| Power Supply Type | Single |
| Integral Nonlinearity Error | ±8LSB |
| Full Scale Error | -1.25%FSR |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Temperature (°C) | 105 |
| Packaging | Tape and Reel |
| Mounting | Surface Mount |
| Package Height | 0.95(Max) |
| Package Width | 3.1(Max) |
| Package Length | 3.1(Max) |
| PCB changed | 8 |
| Standard Package Name | SOP |
| Supplier Package | VSSOP |
| Pin Count | 8 |
| Lead Shape | Gull-wing |
