Place of Origin:
original
Brand Name:
TI
Model Number:
ADS131M04IPWR
Contact Us

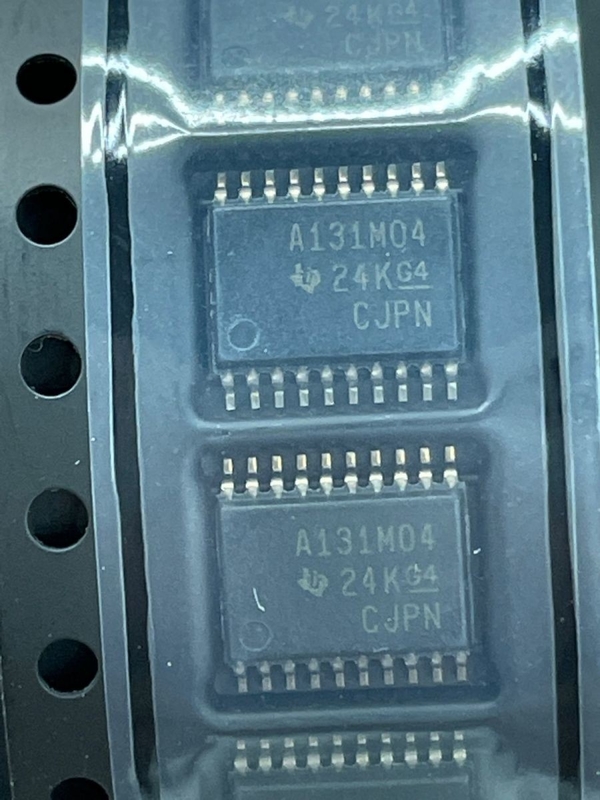

ADS131M04IPWR is a multi-channel, high-resolution, low-power, 24-bit Σ-Δ ADC. It has multiple applications, including medical monitoring, instrumentation, industrial control, and automation.
Medical monitoring: ADS131M04IPWR can be used for medical monitoring applications such as electrocardiogram (ECG) and electroencephalogram (EEG). Its high resolution and low noise level can improve signal quality and measurement accuracy.
Instrumentation: ADS131M04IPWR is suitable for applications such as laboratory instruments, audio measurement, vibration analysis, and robot control. Its multi-channel and high-precision can meet various measurement needs.
Industrial control and automation: ADS131M04IPWR can be used for industrial control and automation applications, including sensor interfaces, process control, and data acquisition. Its low power consumption makes it suitable for applications that require long-term operation.
The following are some parameters of the device:
Resolution: 24 bits
Sampling rate: 8 kSPS to 128 kSPS
Number of channels: 4
Power supply voltage range: 2.7 V to 5.5 V
Working temperature range: -40 ° C to+125 ° C
Interface: SPI
Packaging: TSSOP-20
The main conclusion of this device is that its high resolution, low power consumption, and multi-channel characteristics make it suitable for various applications. It also has low noise and can improve measurement accuracy.
| EU RoHS | Compliant |
| ECCN (US) | EAR99 |
| Part Status | Active |
| HTS | 8542.39.00.01 |
| Automotive | No |
| PPAP | No |
| Resolution | 24bit |
| Sampling Rate | 32ksps |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Temperature (°C) | 125 |
| Packaging | Tape and Reel |
| Mounting | Surface Mount |
| Package Height | 1.05(Max) |
| Package Width | 4.5(Max) |
| Package Length | 6.6(Max) |
| PCB changed | 20 |
| Standard Package Name | SOP |
| Supplier Package | TSSOP |
| Pin Count | 20 |
| Lead Shape | Gull-wing |
