Place of Origin:
original
Brand Name:
TI
Model Number:
LMV2011MA/LMV2011MAX
Contact Us

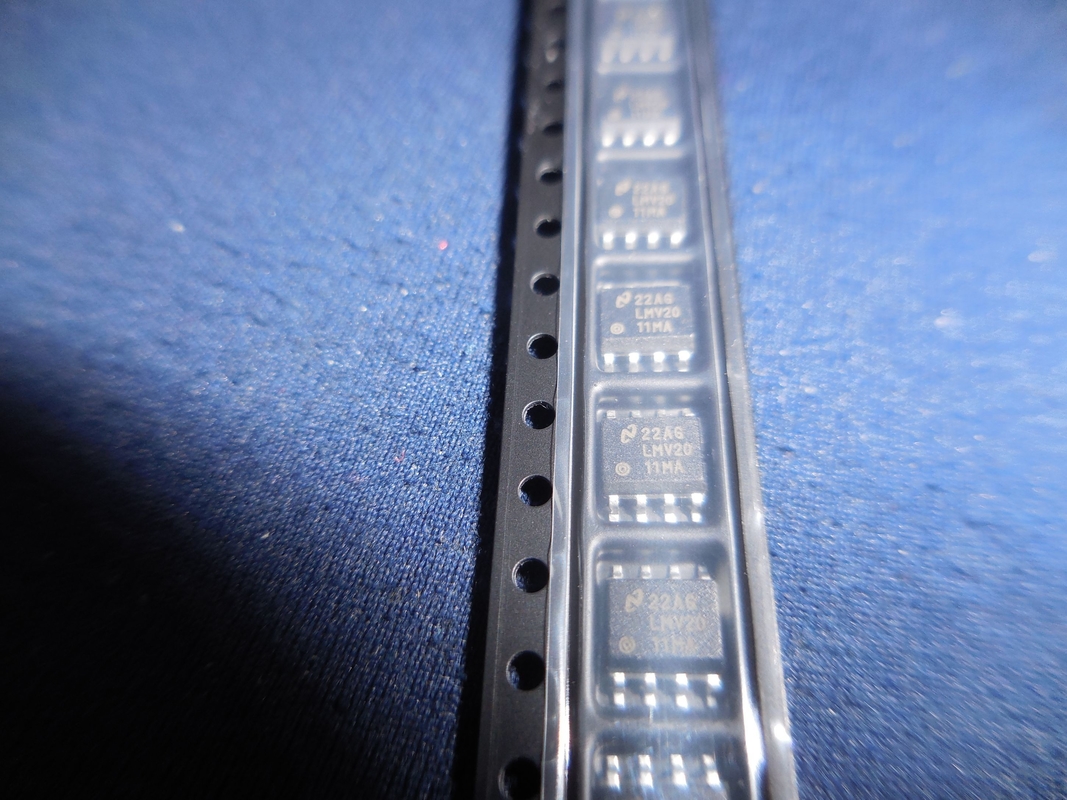

LMV2011MA is a single transistor operational amplifier with the following parameters:
Power supply voltage range: 2.7V to 5.5V
Normally open amplifier gain: 40dB to 80dB
Maximum output current: 25mA
Normally open input resistance: 1M Ω
Operating temperature range: -40 ° C to 125 ° C
This device is suitable for applications such as audio amplification, sensors, and signal transmission. Compared with LMV612MMX, LMV722MMX, and LMV824MTX, LMV2011MA has a smaller packaging and lower power consumption. Some of these applications and conclusions include:
Audio amplification: LMV2011MA is suitable for audio amplifier designs that require high gain and low distortion to improve the performance and sound quality of audio systems.
Sensor signal amplification: This amplifier can amplify small sensor signals for easier detection and analysis. It can also be used to amplify the signal output by the amplifier.
Signal transmission: LMV2011MA can also be used to transmit signals from one circuit to another to enhance signal strength and quality. This can help solve problems such as signal-to-noise ratio in signal transmission.
Low power applications: The low power consumption characteristics of LMV2011MA make it very suitable for battery powered applications.
The packaging of LMV2011MA is SOIC8, which is very suitable for applications on small circuit boards.
| EU RoHS | Not Compliant |
| ECCN (US) | EAR99 |
| Part Status | Obsolete |
| SVHC | Yes |
| SVHC Exceeds Threshold | Yes |
| Automotive | No |
| PPAP | No |
| Type | Precision Amplifier |
| Manufacturer Type | Precision Amplifier |
| Number of Channels per Chip | 1 |
| Rail to Rail | Rail to Rail Output |
| Maximum Input Offset Voltage (mV) | 0.025@5V |
| Minimum Single Supply Voltage (V) | 2.7 |
| Maximum Single Supply Voltage (V) | 5.25 |
| Maximum Input Offset Current (uA) | 0.000006(Typ)@5V |
| Typical Input Bias Current (uA) | 0.000003@5V |
| Maximum Supply Current (mA) | 1.2@5V |
| Typical Output Current (mA) | 8@5V |
| Power Supply Type | Single |
| Typical Slew Rate (V/us) | 4@5V |
| Typical Input Noise Voltage Density (nV/rtHz) | 35@5V |
| Typical Voltage Gain (dB) | 132 |
| Typical Noninverting Input Current Noise Density (pA/rtHz) | 0.15@5V |
| Minimum PSRR (dB) | 120(Typ) |
| Minimum CMRR (dB) | 130(Typ) |
| Minimum CMRR Range (dB) | >=115 |
| Typical Gain Bandwidth Product (MHz) | 3 |
| Typical Settling Time (ns) | 100000 |
| Shut Down Support | No |
| Minimum Operating Temperature (°C) | 0 |
| Maximum Operating Temperature (°C) | 70 |
| Supplier Temperature Grade | Commercial |
| Packaging | Rail |
| Mounting | Surface Mount |
| Package Height | 1.5(Max) |
| Package Width | 3.98(Max) |
| Package Length | 5(Max) |
| PCB changed | 8 |
| Standard Package Name | SO |
| Supplier Package | SOIC |
| Pin Count | 8 |
| Lead Shape | Gull-wing |
