The MV824MTX is a four way operational amplifier with the following parameters:
Power supply voltage range: 2.7V to 5.5V
Normally open amplifier gain: 40dB to 80dB
Maximum output current: 20mA
Normally open input resistance: 1M Ω
Operating temperature range: -40 ° C to 125 ° C
This device is suitable for applications such as audio amplification, sensors, and signal transmission. Compared with LMV612MMX and LMV722MMX, LMV824MTX has higher accuracy and more amplifier channels. Some of these applications and conclusions include:
Audio amplification: LMV824MTX is suitable for audio amplifier designs that require high gain and low distortion to improve the performance and sound quality of audio systems.
Sensor signal amplification: This amplifier can amplify small sensor signals for easier detection and analysis. It can also be used to amplify the signal output by the amplifier.
Signal transmission: LMV824MTX can also be used to transmit signals from one circuit to another to enhance signal strength and quality. This can help solve problems such as signal-to-noise ratio in signal transmission.
Industrial automation: LMV824MTX can also be used in industrial automation, such as measuring temperature, pressure, and current.
The packaging of LMV824MTX is TSSOP-14, with a size of 5mm x 4.4mm, which is very suitable for applications on small circuit boards.
| EU RoHS | Not Compliant |
| ECCN (US) | EAR99 |
| Part Status | NRND |
| HTS | 8542.33.00.01 |
| SVHC | Yes |
| SVHC Exceeds Threshold | Yes |
| Automotive | No |
| PPAP | No |
| Type | Low Voltage Amplifier |
| Manufacturer Type | Low Voltage Amplifier |
| Number of Channels per Chip | 4 |
| Rail to Rail | Rail to Rail Output |
| Maximum Input Offset Voltage (mV) | 3.5@5V |
| Minimum Single Supply Voltage (V) | 2.5 |
| Maximum Single Supply Voltage (V) | 5.5 |
| Minimum Dual Supply Voltage (V) | 卤1.25 |
| Maximum Dual Supply Voltage (V) | 卤2.75 |
| Maximum Input Offset Current (uA) | 0.03@5V |
| Typical Input Bias Current (uA) | 0.04@5V |
| Maximum Input Bias Current (uA) | 0.1@5V |
| Maximum Supply Current (mA) | 1.3@5V |
| Typical Output Current (mA) | 45@5V |
| Power Supply Type | Single|Dual |
| Typical Slew Rate (V/us) | 2@5V |
| Typical Input Noise Voltage Density (nV/rtHz) | 24@5V |
| Input Offset Voltage Drift (uV/C) | 1(Typ) |
| Typical Voltage Gain (dB) | 105 |
| Typical Noninverting Input Current Noise Density (pA/rtHz) | 0.25@5V |
| Minimum PSRR (dB) | 75 |
| Minimum CMRR (dB) | 72 |
| Minimum CMRR Range (dB) | 71 to 75 |
| Typical Gain Bandwidth Product (MHz) | 5.6 |
| Shut Down Support | No |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Temperature (°C) | 85 |

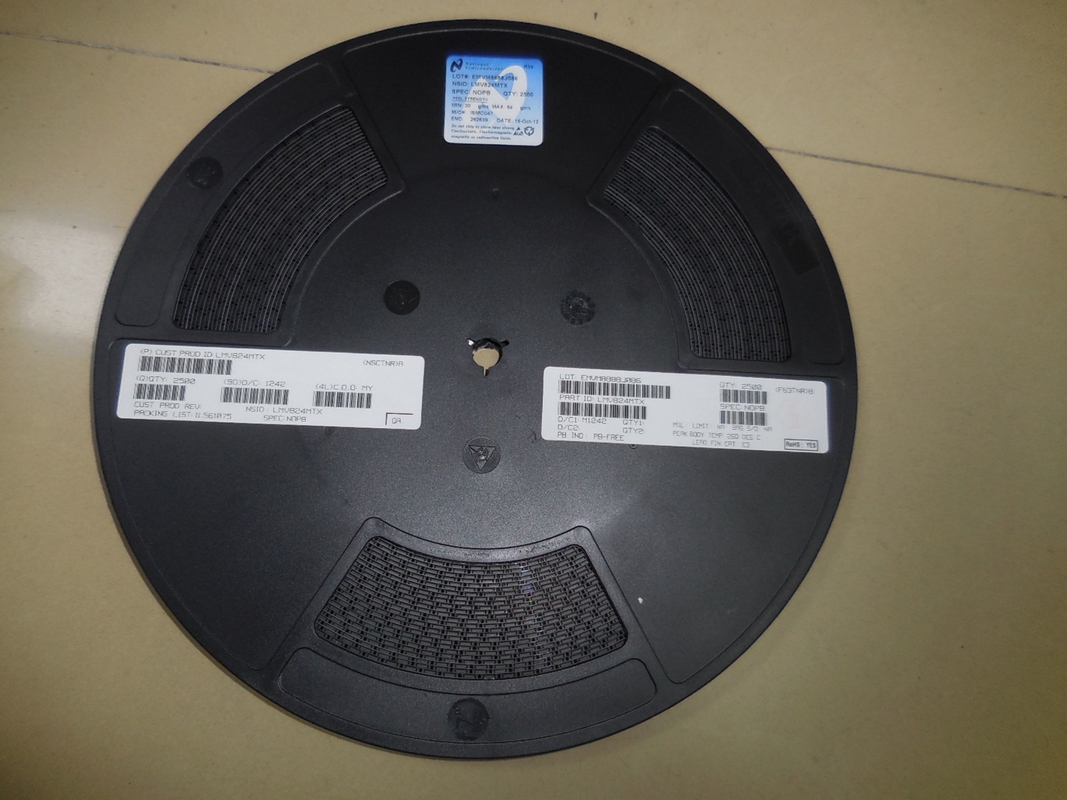

| Packaging | Tape and Reel |
| Mounting | Surface Mount |
| Package Height | 1.05(Max) |
| Package Width | 4.5(Max) |
| Package Length | 5.1(Max) |
| PCB changed | 14 |
| Standard Package Name | SOP |
| Supplier Package | TSSOP |
| Pin Count | 14 |
| Lead Shape | Gull-wing |
