Place of Origin:
original
Brand Name:
TI
Model Number:
LMV722MM/LMV722MMX
Contact Us
LMV722MMX is a dual operational amplifier with the following parameters:
Power supply voltage range: 2.7V to 5.5V
Normally open amplifier gain: 40dB to 80dB
Maximum output current: 20mA
Normally open input resistance: 100k Ω
Operating temperature range: -40 ° C to 125 ° C
This device is suitable for applications such as audio amplification, sensors, and signal transmission. Compared with LMV612MMX, LMV722MMX has higher gain and lower input resistance, making it suitable for higher precision applications. Some of these applications and conclusions include:
Audio amplification: LMV722MMX is suitable for audio amplifier designs that require high gain and low distortion to improve the performance and sound quality of audio systems.
Sensor signal amplification: This amplifier can amplify small sensor signals for easier detection and analysis. It can also be used to amplify the signal output by the amplifier.
Signal transmission: LMV722MMX can also be used to transmit signals from one circuit to another to enhance signal strength and quality. This can help solve problems such as signal-to-noise ratio in signal transmission.

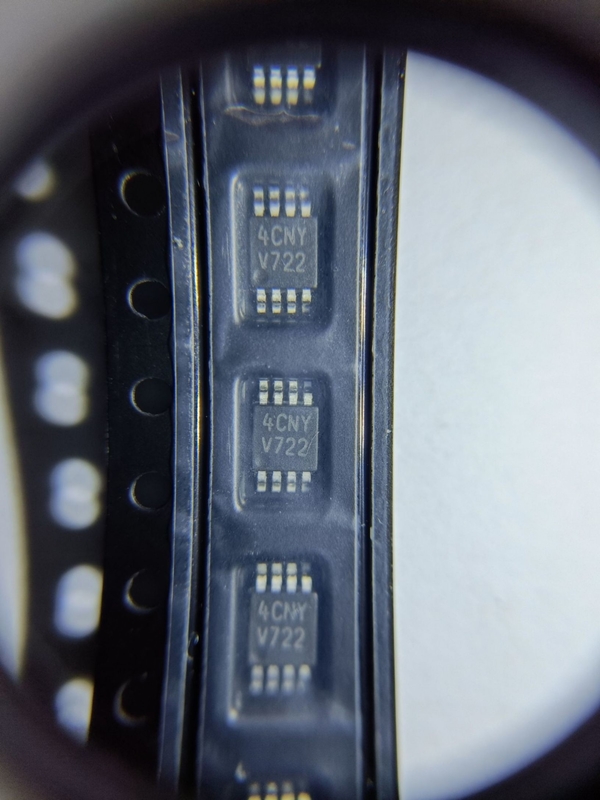

The packaging of LMV722MMX is VSSOP-8, with a size of 3.00mm x 3.00mm, which is very suitable for applications on small circuit boards.
| EU RoHS | Not Compliant |
| ECCN (US) | EAR99 |
| Part Status | Obsolete |
| SVHC | Yes |
| SVHC Exceeds Threshold | Yes |
| Automotive | No |
| PPAP | No |
| Type | Low Noise Amplifier |
| Manufacturer Type | Low Noise Amplifier |
| Number of Channels per Chip | 2 |
| Rail to Rail | Rail to Rail Output |
| Process Technology | BiCMOS |
| Output Type | CMOS |
| Maximum Input Offset Voltage (mV) | 3@5V |
| Minimum Single Supply Voltage (V) | 2.2 |
| Maximum Single Supply Voltage (V) | 5.5 |
| Maximum Input Offset Current (uA) | 0.025(Typ)@5V |
| Typical Input Bias Current (uA) | 0.26@5V |
| Maximum Supply Current (mA) | 2.4@5V |
| Typical Output Current (mA) | 52.6@5V |
| Power Supply Type | Single |
| Typical Slew Rate (V/us) | 5.25@5V |
| Typical Input Noise Voltage Density (nV/rtHz) | 8.5@5V |
| Typical Voltage Gain (dB) | 94 |
| Typical Noninverting Input Current Noise Density (pA/rtHz) | 0.2@5V |
| Minimum PSRR (dB) | 70 |
| Minimum CMRR (dB) | 70 |
| Minimum CMRR Range (dB) | 70 to 71 |
| Typical Gain Bandwidth Product (MHz) | 10 |
| Shut Down Support | No |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Temperature (°C) | 85 |
| Supplier Temperature Grade | Industrial |
| Packaging | Tape and Reel |
| Mounting | Surface Mount |
| Package Height | 0.95(Max) |
| Package Width | 3.1(Max) |
| Package Length | 3.1(Max) |
| PCB changed | 8 |
| Standard Package Name | SOP |
| Supplier Package | VSSOP |
| Pin Count | 8 |
| Lead Shape | Gull-wing |
