Place of Origin:
original
Brand Name:
TI
Model Number:

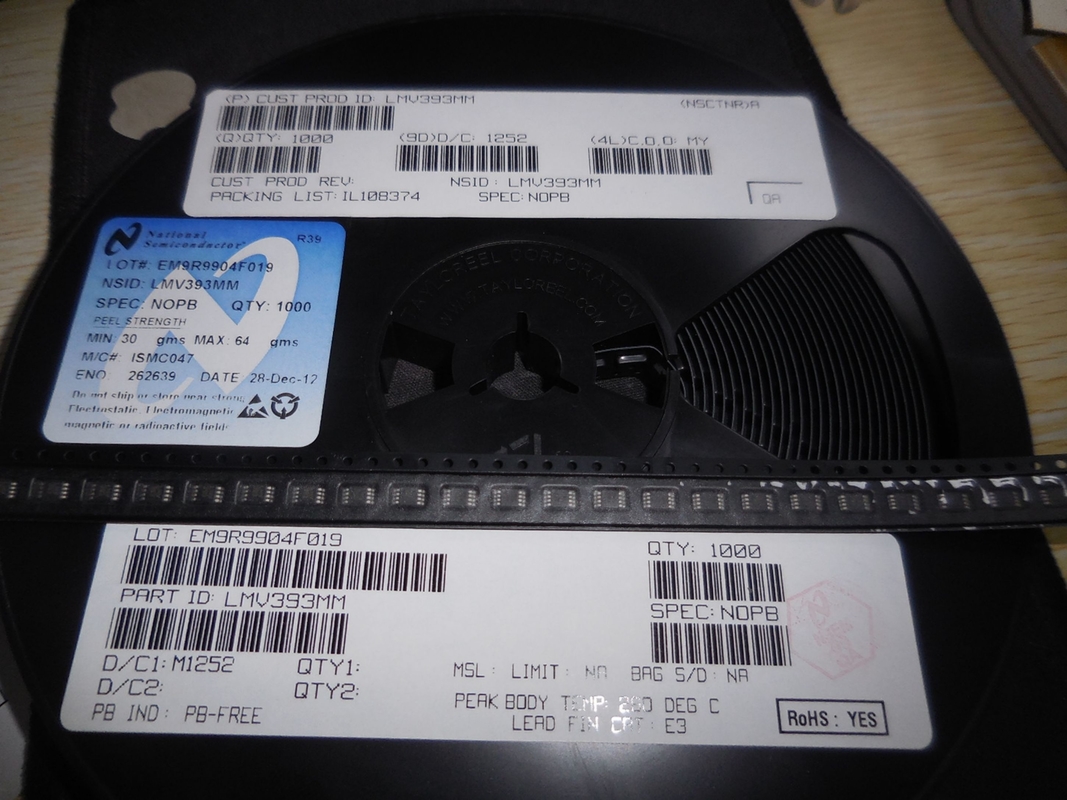

LMV393MM
Contact Us
LMV393MM/LMV393MMX is a low-power, dual comparator integrated circuit manufactured by Texas Instruments. It has a wide input voltage range and adjustable threshold voltage, suitable for low voltage battery powered applications. The following are its applications, conclusions, and parameters:
Application:
Low power circuit
Battery powered circuit
Voltage monitoring circuit
Analog signal acquisition circuit
Switch circuit
Conclusion:
LMV393MM is a low-power, dual comparator integrated circuit suitable for low-voltage battery powered applications.
It has a wide input voltage range and adjustable threshold voltage.
It has the characteristics of low power consumption, high speed, excellent input bias current, and low voltage operation.
It is suitable for applications such as low-power circuits, battery powered circuits, voltage monitoring circuits, analog signal acquisition circuits, and switching circuits.
Parameters:
Input voltage range: 1.6V to 5.5V
Output voltage range: 0V to VCC
Response time: 1.3 μ s
Input bias current: 25nA
Working temperature range: -40 ° C to 85 ° C
Packaging: VSSOP-8
| EU RoHS | Not Compliant |
| ECCN (US) | EAR99 |
| Part Status | Active |
| HTS | 8542.39.00.01 |
| SVHC | Yes |
| SVHC Exceeds Threshold | Yes |
| Automotive | No |
| PPAP | No |
| Manufacturer Type | Low Voltage Comparator |
| Number of Channels per Chip | 2 |
| Rail to Rail | Rail to Rail Output |
| Process Technology | BiCMOS |
| Maximum Propagation Delay Time (ns) | 600(Typ) |
| Output Type | Open Collector |
| Maximum Operating Supply Voltage (V) | 5 |
| Maximum Input Offset Voltage (mV) | 7@5V |
| Minimum Single Supply Voltage (V) | 2.7 |
| Maximum Single Supply Voltage (V) | 5 |
| Typical Voltage Gain (dB) | 93.98 |
| Typical Voltage Gain Range (dB) | 90 to 110 |
| Maximum Input Bias Current (uA) | 0.25@5V |
| Maximum Supply Current (mA) | 0.2@5V |
| Typical Output Current (mA) | 84@5V |
| Maximum Test Temperature (°C) | 85 |
| Minimum Test Temperature (°C) | -40 |
| Power Supply Type | Single |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Temperature (°C) | 85 |
| Supplier Temperature Grade | Industrial |
| Packaging | Tape and Reel |
| Mounting | Surface Mount |
| Package Height | 0.95(Max) |
| Package Width | 3.1(Max) |
| Package Length | 3.1(Max) |
| PCB changed | 8 |
| Standard Package Name | SOP |
| Supplier Package | VSSOP |
| Pin Count | 8 |
| Lead Shape | Gull-wing |
