Place of Origin:
original
Brand Name:
ST
Model Number:
LMV358LIDT
Contact Us

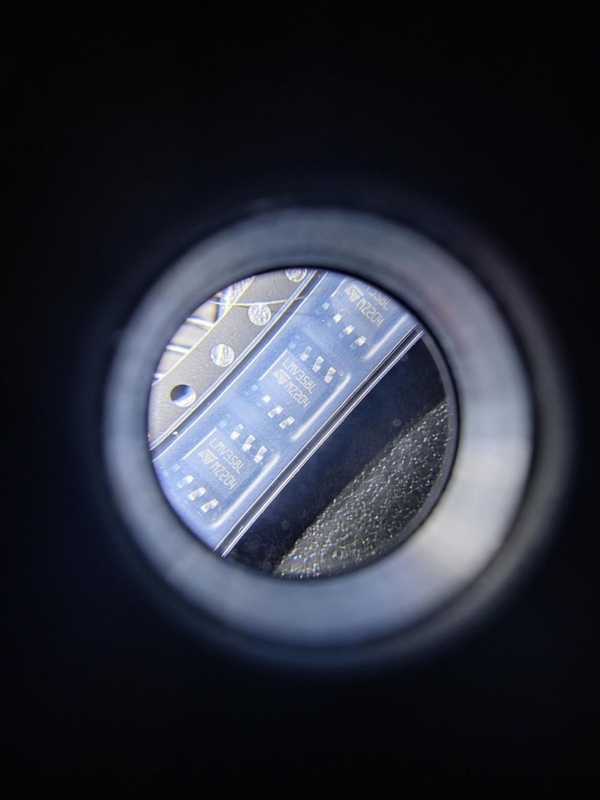

LMV358LIDT is a dual circuit low-voltage operational amplifier composed of STMICROELECTRONICS
manufacture. It can operate under a single power supply voltage, providing rail to rail input and output swing, and is designed for low-power applications. The following are its applications, conclusions, and parameters:
Application:
Audio amplifier and preamplifier
Sensor amplifier
signal conditioning circuit
Active filter
Voltage controlled oscillator
Conclusion:
LMV358LIDT is a dual circuit low-voltage operational amplifier suitable for low-power applications.
It can operate under a single power supply voltage, providing rail to rail input and output swing.
It has low power consumption, high common mode rejection ratio, low input bias current and reliable electrostatic discharge (ESD) protection.
It is suitable for applications such as audio amplifiers, sensor amplifiers, signal conditioning circuits, active filters, and voltage controlled oscillators.
Parameters:
Input voltage range: 2.7V to 5.5V
Output voltage range: 0V to VCC
Operating temperature range: -40 ° C to 125 ° C
Gain–bandwidth product: 1 MHz
Proportional slope: 0.5 V/ μ s
Input bias voltage: 1 mV
Input bias current: 10 nA
Packaging: SOIC8
| EU RoHS | Compliant |
| ECCN (US) | EAR99 |
| Part Status | Active |
| HTS | 8542.33.00.01 |
| Automotive | No |
| PPAP | No |
| Type | Low Power Amplifier |
| Manufacturer Type | Low Power Amplifier |
| Number of Channels per Chip | 2 |
| Rail to Rail | Rail to Rail Output |
| Maximum Input Offset Voltage (mV) | 7@5V |
| Minimum Single Supply Voltage (V) | 2.7 |
| Maximum Single Supply Voltage (V) | 5.5 |
| Typical Low Level Output Voltage (V) | 0.3 |
| Typical High Level Output Voltage (V) | 4.99 |
| Maximum Input Offset Current (uA) | 0.03@5V |
| Typical Input Bias Current (uA) | 0.027@5V |
| Maximum Input Bias Current (uA) | 0.06@5V |
| Maximum Quiescent Current (mA) | 0.5@5V |
| Power Supply Type | Single |
| Typical Slew Rate (V/us) | 0.7@5V |
| Typical Input Noise Voltage Density (nV/rtHz) | 30@5V |
| Input Offset Voltage Drift (uV/°C) | 5(Typ) |
| Typical Voltage Gain (dB) | 100 |
| Typical Noninverting Input Current Noise Density (pA/rtHz) | 0.3@5V |
| Minimum CMRR (dB) | 72 |
| Minimum CMRR Range (dB) | 71 to 75 |
| Typical Gain Bandwidth Product (MHz) | 1.3 |
| Shut Down Support | No |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Temperature (°C) | 125 |
| Supplier Temperature Grade | Industrial |
| Packaging | Tape and Reel |
| Mounting | Surface Mount |
| Package Height | 1.25(Min) |
| Package Width | 3.9 |
| Package Length | 4.9 |
| PCB changed | 8 |
| Standard Package Name | SO |
| Supplier Package | SO N |
| Pin Count | 8 |
| Lead Shape | Gull-wing |
