Place of Origin:
original
Brand Name:
TI
Model Number:
LMV358IDGKR
Contact Us
LMV358IDGKR is a dual-channel, low-voltage operational amplifier (op-amp) integrated circuit (IC) manufactured by Texas Instruments. It is designed to operate with a single supply voltage, providing rail-to-rail input and output swing with a low input offset voltage.
Applications:
Audio amplifiers and preamplifiers.
Sensor amplifiers.
Signal conditioning circuits.
Active filters.
Voltage-controlled oscillators.
Features:
Dual independent op-amps in a single package.
Wide input voltage range: 2.7V to 5.5V.
Rail-to-rail input and output swing.
Low power consumption: 0.5 mA per channel.
High common-mode rejection ratio (CMRR): 70 dB.
Low input offset voltage: 1 mV.
Unity-gain stable.
ESD protection: 2 kV (human body model).
Parameters:
Input voltage range: 2.7V to 5.5V.
Output voltage range: 0V to VCC.
Operating temperature range: -40°C to 125°C.
Gain bandwidth product: 1 MHz.
Slew rate: 0.5 V/μs.
Input offset voltage: 1 mV.
Input offset current: 10 nA.

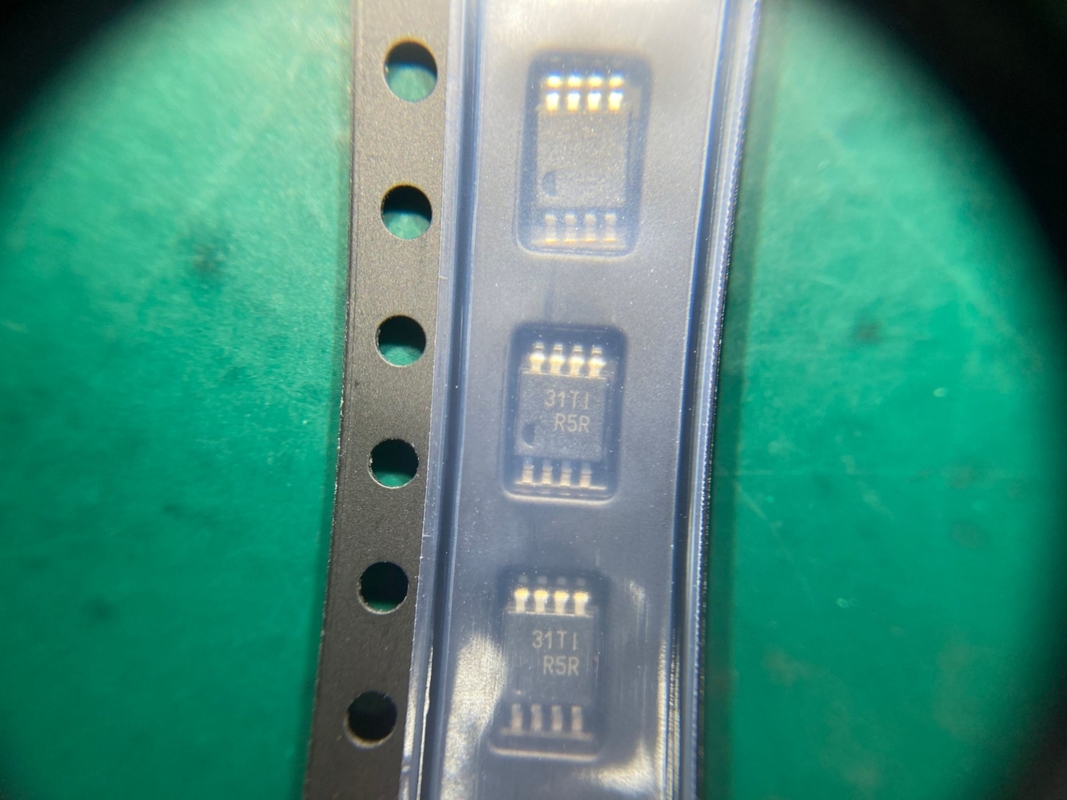

Packaging: VSSOP-8.
| EU RoHS | Compliant |
| ECCN (US) | EAR99 |
| Part Status | Active |
| HTS | 8542.33.00.01 |
| Automotive | No |
| PPAP | No |
| Type | Low Voltage Amplifier |
| Manufacturer Type | Low Voltage Amplifier |
| Number of Channels per Chip | 2 |
| Rail to Rail | Rail to Rail Output |
| Output Type | CMOS |
| Maximum Input Offset Voltage (mV) | 7@5V |
| Minimum Single Supply Voltage (V) | 2.7 |
| Maximum Single Supply Voltage (V) | 5.5 |
| Maximum Input Offset Current (uA) | 0.05@5V |
| Typical Input Bias Current (uA) | 0.015@5V |
| Maximum Input Bias Current (uA) | 0.25@5V |
| Maximum Supply Current (mA) | 0.44@5V |
| Typical Output Current (mA) | 60 |
| Power Supply Type | Single |
| Typical Slew Rate (V/us) | 1@5V |
| Typical Input Noise Voltage Density (nV/rtHz) | 39@5V |
| Typical Voltage Gain (dB) | 100 |
| Typical Noninverting Input Current Noise Density (pA/rtHz) | 0.21@5V |
| Minimum CMRR (dB) | 50 |
| Minimum CMRR Range (dB) | 50 to 60 |
| Typical Gain Bandwidth Product (MHz) | 1 |
| Shut Down Support | No |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Temperature (°C) | 125 |

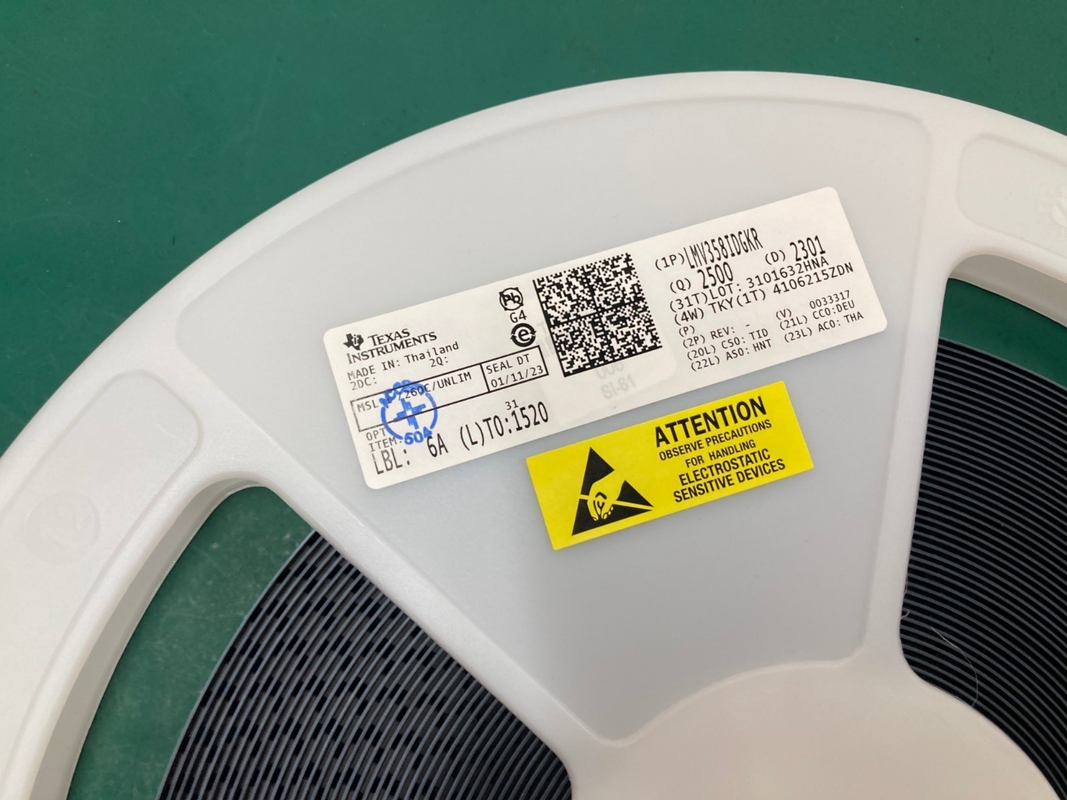

| Packaging | Tape and Reel |
| Mounting | Surface Mount |
| Package Height | 0.95(Max) |
| Package Width | 3.1(Max) |
| Package Length | 3.1(Max) |
| PCB changed | 8 |
| Standard Package Name | SOP |
| Supplier Package | VSSOP |
| Pin Count | 8 |
| Lead Shape | Gull-wing |
