Place of Origin:
original
Brand Name:
TI
Model Number:
LMV331IDBVR
Contact Us
Application:
LMV331IDBVR can be used for the following applications:
Portable devices powered by batteries, such as calculators and smartphones;
Non contact switches and sensors;
Power detection and fault protection;
Voltage comparison and signal processing.
Conclusion:
LMV331IDBVR is a high-precision, low-power, and reliable comparator;
It has advantages such as high-speed response, wide input voltage range, low bias current, and low output noise;
LMV331IDBVR performs well in low voltage applications, especially in portable devices powered by batteries;
LMV331IDBVR can be used in many different applications, including power detection, voltage comparison, and signal processing.
Parameters:
Input voltage range: 2.7V~5.5V;
Output voltage range: 0V~VCC;
Working temperature range: -40 ℃~85 ℃;
Response time: 15ns;
Bias current: 50nA;
Output driving capacity: 1mA;
Packaging: SOT-23-5
| EU RoHS | Compliant |
| ECCN (US) | EAR99 |
| Part Status | Active |
| HTS | 8542.39.00.01 |
| SVHC | Yes |
| Automotive | No |
| PPAP | No |
| Manufacturer Type | Low Voltage Comparator |
| Number of Channels per Chip | 1 |
| Rail to Rail | Rail to Rail Output |
| Maximum Propagation Delay Time (ns) | 600(Typ) |
| Output Type | Open Collector |
| Maximum Operating Supply Voltage (V) | 5.5 |
| Maximum Input Offset Voltage (mV) | 7@5V |
| Minimum Single Supply Voltage (V) | 2.7 |
| Maximum Single Supply Voltage (V) | 5.5 |
| Typical Voltage Gain (dB) | 93.98 |
| Typical Voltage Gain Range (dB) | 90 to 110 |
| Maximum Input Bias Current (uA) | 0.25@5V |
| Maximum Supply Current (mA) | 0.12@5V |
| Typical Output Current (mA) | 84@5V |
| Maximum Test Temperature (°C) | 125 |
| Minimum Test Temperature (°C) | -40 |
| Power Supply Type | Single |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Temperature (°C) | 125 |

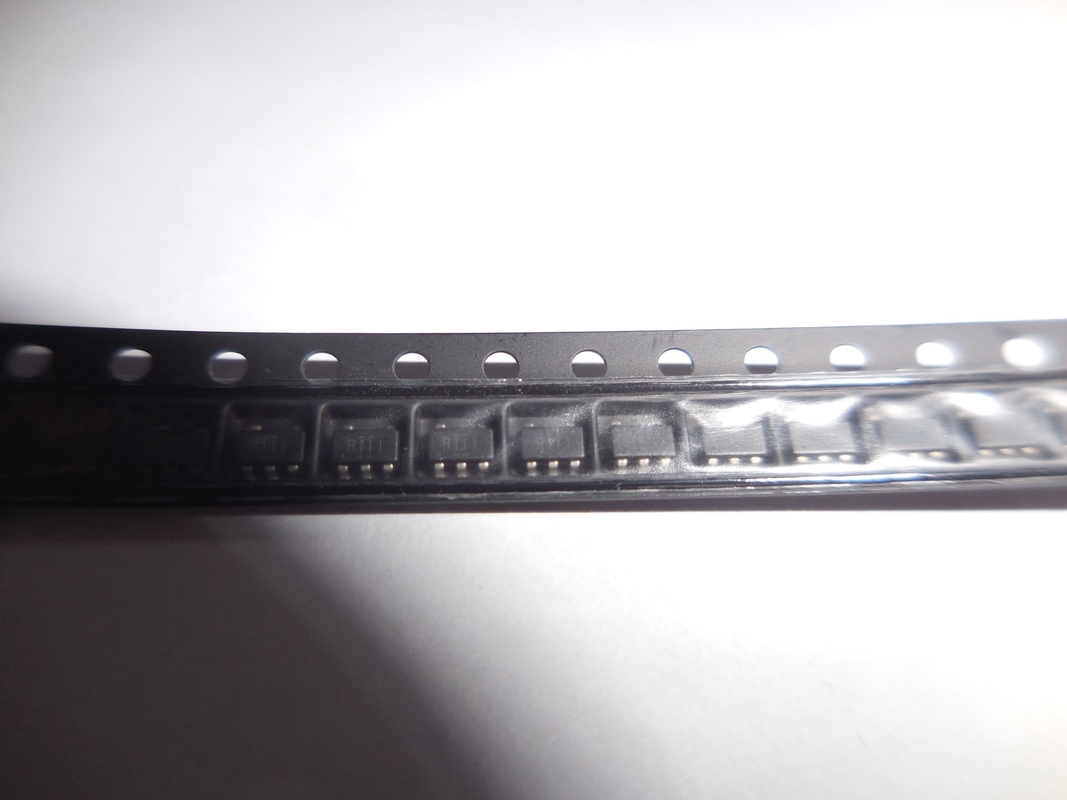

| Packaging | Tape and Reel |
| Mounting | Surface Mount |
| Package Height | 1.1 |
| Package Width | 1.75(Max) |
| Package Length | 3.05(Max) |
| PCB changed | 5 |
| Standard Package Name | SOT |
| Supplier Package | SOT-23 |
| Pin Count | 5 |
| Lead Shape | Gull-wing |
