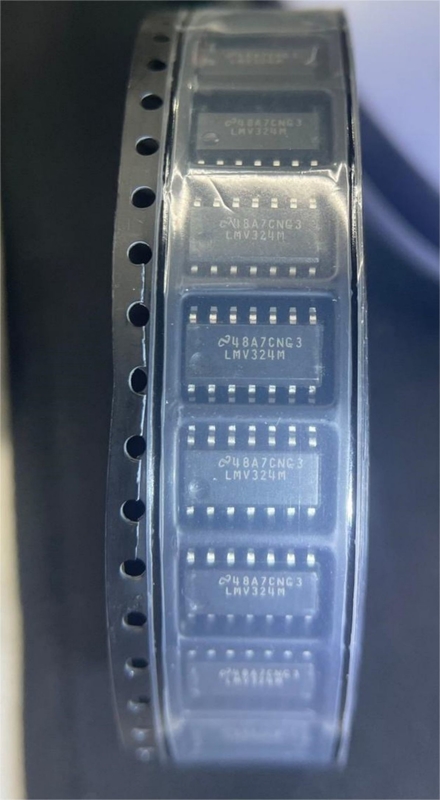

LMV324M is a low-voltage differential operational amplifier with four independent operational amplifiers. It is suitable for single power supply systems and can operate at power voltages ranging from 2.7V to 5.5V. LMV324M has the characteristics of low power consumption, low input bias current, low noise, low input offset voltage and high Gain–bandwidth product, and is widely used in power management, battery power supply, signal conditioning, filtering, instrument amplifier and other fields.
Main parameters of LMV324M:
Power supply voltage range: 2.7V to 5.5V
Working temperature range: -40 ℃ to+125 ℃
Packaging type: SOIC, MSOP, TSSOP
Low input bias current: 10nA
Low input offset voltage: 3mV
High Gain–bandwidth product: 1MHz
Low power consumption: 0.65mA/amplifier
Open circuit gain: 100dB
Input voltage range: -0.3V to Vcc+0.3V
Overload protection: ± 16V
Current output: 25mA
Application of LMV324M:
Power management
Battery powered
Signal conditioning
wave filtering
Instrument amplifier
temperature measurement
Optical detection
Touch control
Audio amplifier
Sensor interface.
| Product Technical Specifications | |
| EU RoHS | Not Compliant聽 |
| ECCN (US) | EAR99 |
| Part Status | NRND |
| HTS | 8542.33.00.01 |
| SVHC | Yes |
| SVHC Exceeds Threshold | Yes |
| Automotive | No |
| PPAP | No |
| Type | Low Voltage Amplifier |
| Manufacturer Type | Low Voltage Amplifier |
| Number of Channels per Chip | 4 |
| Rail to Rail | Rail to Rail Output |
| Process Technology | BiCMOS |
| Output Type | CMOS |
| Maximum Input Offset Voltage (mV) | 7@5V |
| Minimum Single Supply Voltage (V) | 2.7 |
| Maximum Single Supply Voltage (V) | 5.5 |
| Maximum Input Offset Current (uA) | 0.05@5V |
| Typical Input Bias Current (uA) | 0.015@5V |
| Maximum Input Bias Current (uA) | 0.25@5V |
| Maximum Supply Current (mA) | 0.83@5V |
| Typical Output Current (mA) | 60 |
| Power Supply Type | Single |
| Typical Slew Rate (V/us) | 1@5V |
| Typical Input Noise Voltage Density (nV/rtHz) | 39@5V |
| Typical Voltage Gain (dB) | 100 |
| Typical Noninverting Input Current Noise Density (pA/rtHz) | 0.21@5V |
| Minimum PSRR (dB) | 50 |
| Minimum CMRR (dB) | 50 |
| Minimum CMRR Range (dB) | 50 to 60 |
| Typical Gain Bandwidth Product (MHz) | 1 |
| Shut Down Support | No |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Temperature (°C) | 125 |
| Supplier Temperature Grade | Industrial |
| Packaging | Tube |
| Mounting | Surface Mount |
| Package Height | 1.5(Max) |
| Package Width | 4(Max) |
| Package Length | 8.75(Max) |
| PCB changed | 14 |
| Standard Package Name | SO |
| Supplier Package | SOIC |
| Pin Count | 14 |
| Lead Shape | Gull-wing |
