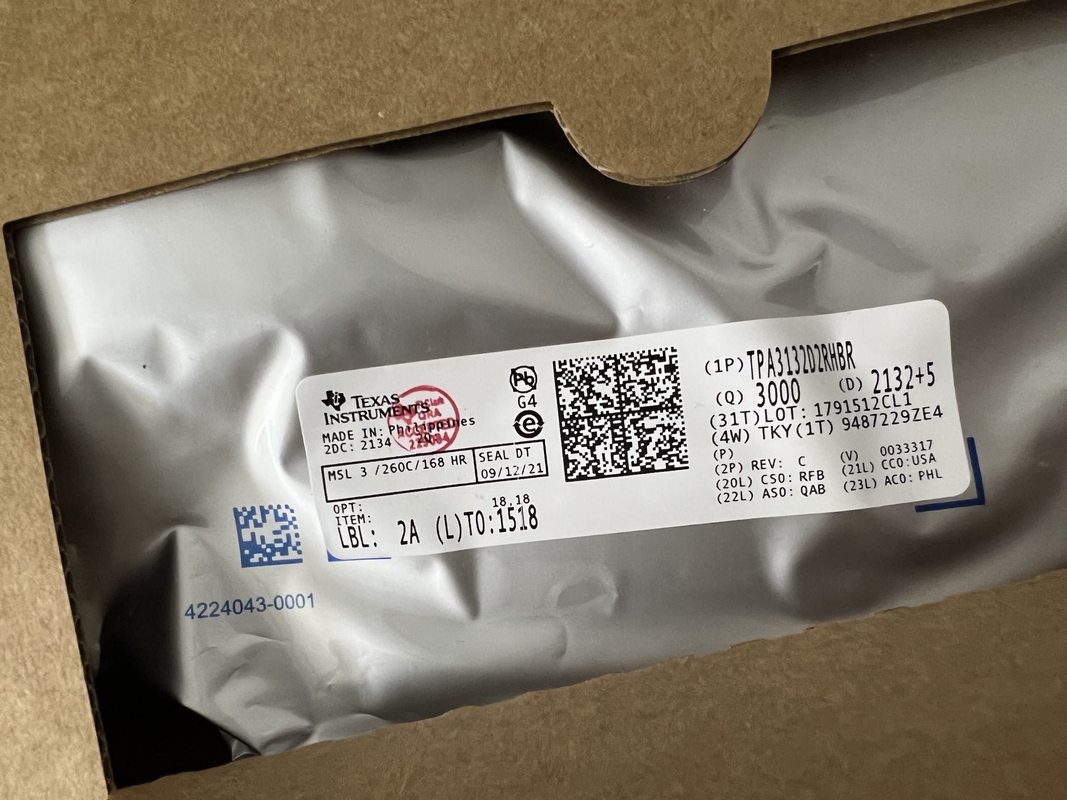

TPA3132D2RHBR New And Original VQFN-32 Integrated Circuit
ISO9001.pdf
TPA3132D2RHBR is an audio power amplifier, and the following are its main parameters:
Input voltage range: 4.5V to 32V
Output power: 2 x 25W
Output impedance: 4 Ω to 8 Ω
Working temperature range: -40 ℃ to 85 ℃
Packaging: VQFN-32
The following are some applications of TPA3132D2RHBR:
Television and home theater: TPA3132D2RHBR can be used in audio amplifier circuits in television and home theater equipment, providing users with a high-quality sound experience.
Computer speakers: Due to its compact packaging and high power output, TPA3132D2RHBR can also be used in personal audio devices such as computer speakers.
Conclusion: TPA3132D2RHBR is a high-quality audio power amplifier suitable for various audio application scenarios such as television, home theater, and computer speakers. It has a high input voltage range, high power output, and a wide operating temperature range, which can meet the needs of different scenarios. Its packaging is VQFN-32, suitable for SMT mounting.
| Product Technical Specifications | |
| EU RoHS | Compliant |
| ECCN (US) | EAR99 |
| Part Status | Active |
| HTS | 8542.33.00.01 |
| Automotive | No |
| PPAP | No |
| Function | Speaker |
| Amplifier Type | Class-D |
| THDN | 0.1%@8Ohm@2W |
| Output Signal Type | Differential |
| Output Type | 2-Channel Stereo |
| Input Voltage | -0.3V to 6.3V |
| Minimum Dual Supply Voltage (V) | 4.5 |
| Typical Dual Supply Voltage (V) | 5|9|12|15|18|24 |
| Maximum Dual Supply Voltage (V) | 26 |
| Minimum Load Resistance (Ohm) | 1.6 |
| Power Supply Type | Dual |
| Typical Output Power x Channels @ Load (W) | 42x2@4Ohm |
| Minimum Operating Temperature (C) | -40 |
| Maximum Operating Temperature (C) | 85 |
| Packaging | Tape and Reel |
| Mounting | Surface Mount |
| Package Height | 0.95(Max) |
| Package Width | 5.15(Max) |
| Package Length | 5.15(Max) |
| PCB changed | 32 |
| Standard Package Name | QFN |
| Supplier Package | VQFN EP |
| Pin Count | 32 |
| Lead Shape | No Lead |
