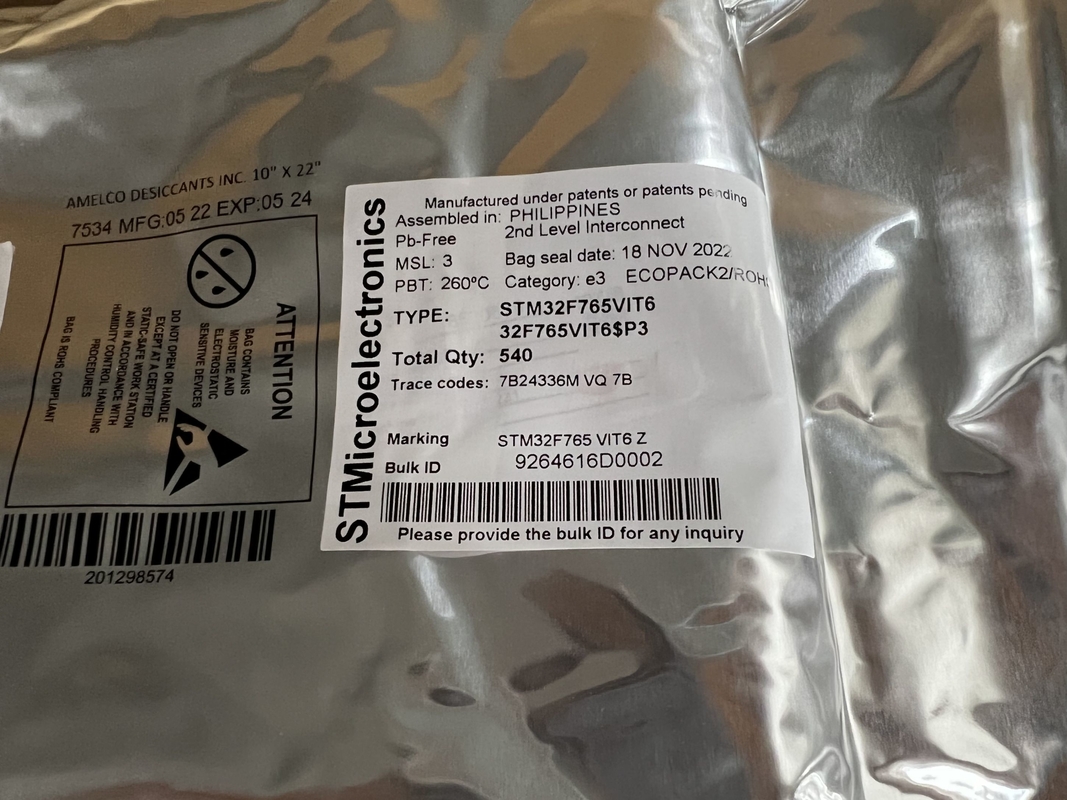

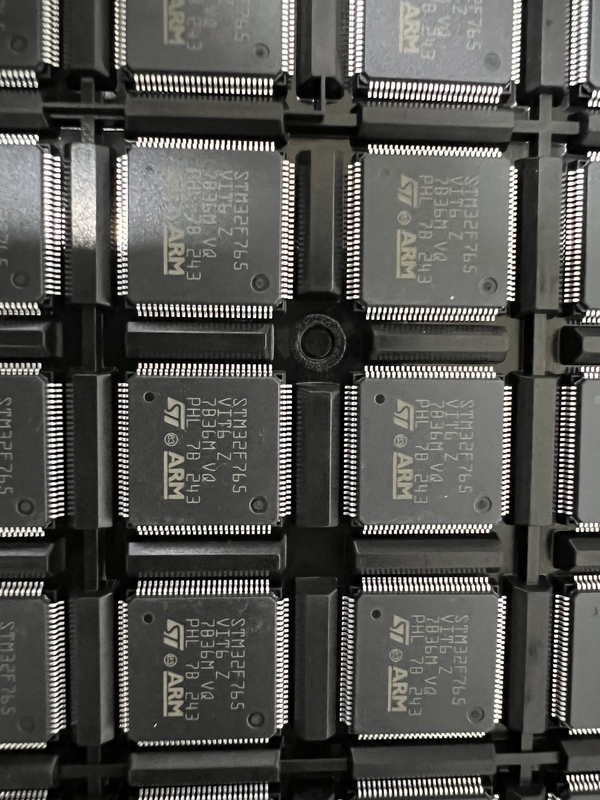

STM32F765VIT6 New And Original LQFP100 Integrated Circuit
ISO9001.pdf
STM32F765VIT6 is a 32-bit microcontroller based on the ARM Cortex-M7 kernel. The following are its main parameters:
CPU frequency: 216MHz
Flash memory capacity: 2MB
RAM capacity: 512KB
I/O quantity: 144
Communication interfaces: UART, SPI, I ² C. CAN, etc
Packaging: LQFP-100
The following are some applications of STM32F765VIT6:
Industrial control: STM32F765VIT6 can be used for data acquisition, controller, motion control, etc. in industrial control.
Communication equipment: STM32F765VIT6 can also be used for network routers, switches, modems, etc. in communication equipment.
Smart Home: Due to its high performance and low power consumption, STM32F765VIT6 is a commonly used controller in smart home devices, such as smart door locks, smart lights, etc.
Conclusion: STM32F765VIT6 is a high-performance, low-power 32-bit microcontroller suitable for various fields such as industrial control, communication equipment, and smart home. It has a high-speed CPU and rich communication interfaces, which can meet the needs of various application scenarios. Its packaging is LQFP-100, suitable for SMT mounting.
| Product Technical Specifications | |
| EU RoHS | Compliant |
| ECCN (US) | 3A991a.2. |
| Part Status | Active |
| HTS | 8542.31.00.01 |
| Automotive | No |
| PPAP | No |
| Family Name | STM32F |
| Instruction Set Architecture | RISC |
| Device Core | ARM Cortex M7 |
| Core Architecture | ARM |
| Maximum CPU Frequency (MHz) | 216 |
| Maximum Clock Rate (MHz) | 216 |
| Data Bus Width (bit) | 32 |
| Program Memory Type | Flash |
| Program Memory Size | 2MB |
| RAM Size | 532KB |
| Programmability | Yes |
| Process Technology | CMOS |
| Interface Type | CAN/Ethernet/I2C/I2S/SPI/UART/USART/USB |
| Number of I/Os | 82 |
| No. of Timers | 15 |
| PWM | 4 |
| Number of ADCs | Triple |
| ADC Channels | 16/16/16 |
| ADC Resolution (bit) | 2012/12/12 |
| Number of DACs | Single |
| DAC Channels | 2 |
| DAC Resolution (bit) | 12 |
| USART | 4 |
| UART | 4 |
| USB | 2 |
| SPI | 4 |
| I2C | 4 |
| I2S | 3 |
| CAN | 3 |
| Ethernet | 1 |
| Watchdog | 2 |
| Parallel Master Port | No |
| Real Time Clock | Yes |
| Special Features | CAN Controller |
| Minimum Operating Supply Voltage (V) | 1.7 |
| Typical Operating Supply Voltage (V) | 3.3 |
| Maximum Operating Supply Voltage (V) | 3.6 |
| Maximum Power Dissipation (mW) | 465 |
| Minimum Operating Temperature (C) | -40 |
| Maximum Operating Temperature (C) | 85 |
| Supplier Temperature Grade | Industrial |
| Packaging | Tray |
| Mounting | Surface Mount |
| Package Height | 1.4 |
| Package Width | 14 |
| Package Length | 14 |
| PCB changed | 100 |
| Standard Package Name | QFP |
| Supplier Package | LQFP |
| Pin Count | 100 |
| Lead Shape | Gull-wing |
