Place of Origin:
original
Brand Name:
ALTERA
Model Number:
5CGXFC7C6F23I7N
Contact Us

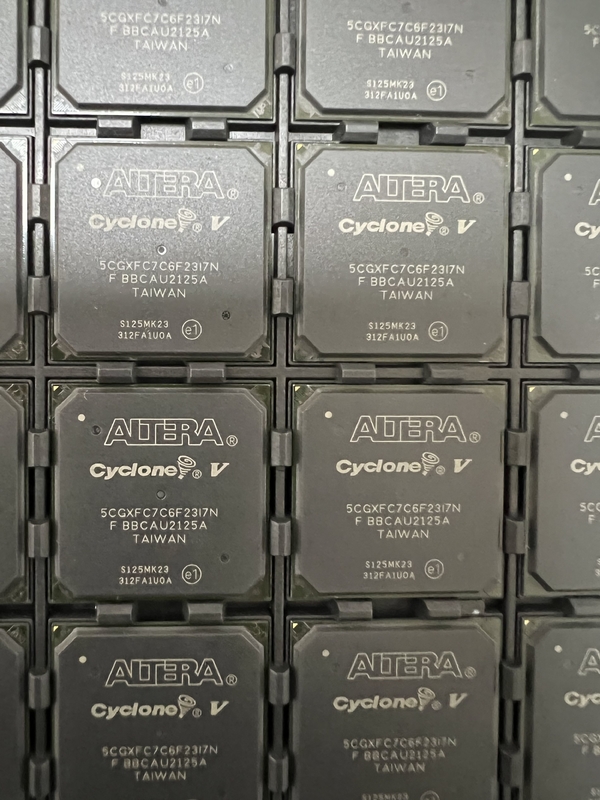

5CGXFC7C6F23I7N New And Original BGA484 Integrated Circuit
5CGXFC7C6F23I7N is a FPGA chip of the Cyclone V GX series. The following are the main parameters of 5CGXFC7C6F23I7N:
FPGA type: Cyclone V GX
Number of logical units: 358000
Maximum storage capacity: 6144 Kbits
Maximum user I/O count: 622
RAM capacity: 1556 Kbits
DSP block count: 96
The following are some applications of 5CGXFC7C6F23I7N:
Video processing: 5CGXFC7C6F23I7N supports high-definition video decoding and encoding, and can be used for applications such as video processing, video transmission, and video storage.
Communication: 5CGXFC7C6F23I7N has rich communication interfaces, such as PCI Express, Gigabit Ethernet, and USB, which can be used for network communication and data exchange applications.
Industrial control: 5CGXFC7C6F23I7N has high-speed signal processing and rich interfaces, which can be used in industrial control and automation applications.
Conclusion: 5CGXFC7C6F23I7N is a high-performance, low-power FPGA chip suitable for various application scenarios such as video processing, communication, and industrial control. It has rich communication interfaces, high-speed signal processing, and a large number of logical units and storage capacity, which can meet the needs of various application scenarios.
| Product Technical Specifications | |
| EU RoHS | Compliant |
| ECCN (US) | 3A991 |
| Part Status | Active |
| HTS | 8542.39.00.01 |
| Automotive | No |
| PPAP | No |
| Family Name | Cyclone庐 V GX |
| Process Technology | 28nm |
| User I/Os | 240 |
| Number of Registers | 225920 |
| Operating Supply Voltage (V) | 1.1 |
| Shift Registers | Utilize Memory |
| Logic Elements | 149500 |
| Number of Multipliers | 312 (18x18) |
| Program Memory Type | SRAM |
| Embedded Memory (Kbit) | 6860 |
| Total Number of Block RAM | 686 |
| EMACs | 2 |
| Device Logic Units | 149500 |
| Number of Global Clocks | 16 |
| Device Number of DLLs/PLLs | 7 |
| Transceiver Channels | 9 |
| JTAG Support | Yes |
| Transceiver Speed (Gbps) | 3.125 |
| Dedicated DSP | 156 |
| PCIe | 2 |
| Programmability | Yes |
| Reprogrammability Support | Yes |
| Copy Protection | No |
| In-System Programmability | Yes |
| Speed Grade | 7 |
| Differential I/O Standards | LVPECL|LVDS |
| Single-Ended I/O Standards | LVTTL|LVCMOS |
| External Memory Interface | DDR2 SDRAM|DDR3 SDRAM|LPDDR2 |
| Minimum Operating Supply Voltage (V) | 1.07 |
| Maximum Operating Supply Voltage (V) | 1.13 |
| I/O Voltage (V) | 1.2|1.25|1.35|1.5|1.8|2.5|3|3.3 |
| Minimum Operating Temperature (C) | -40 |
| Maximum Operating Temperature (C) | 100 |
| Supplier Temperature Grade | Industrial |
| Tradename | Cyclone |
| Mounting | Surface Mount |
| Package Height | 1.35 |
| Package Width | 23 |
| Package Length | 23 |
| PCB changed | 484 |
| Standard Package Name | BGA |
| Supplier Package | FBGA |
| Pin Count | 484 |
| Lead Shape | Ball |
