Place of Origin:
original
Brand Name:
ST
Model Number:
VNH7100BASTR
Contact Us

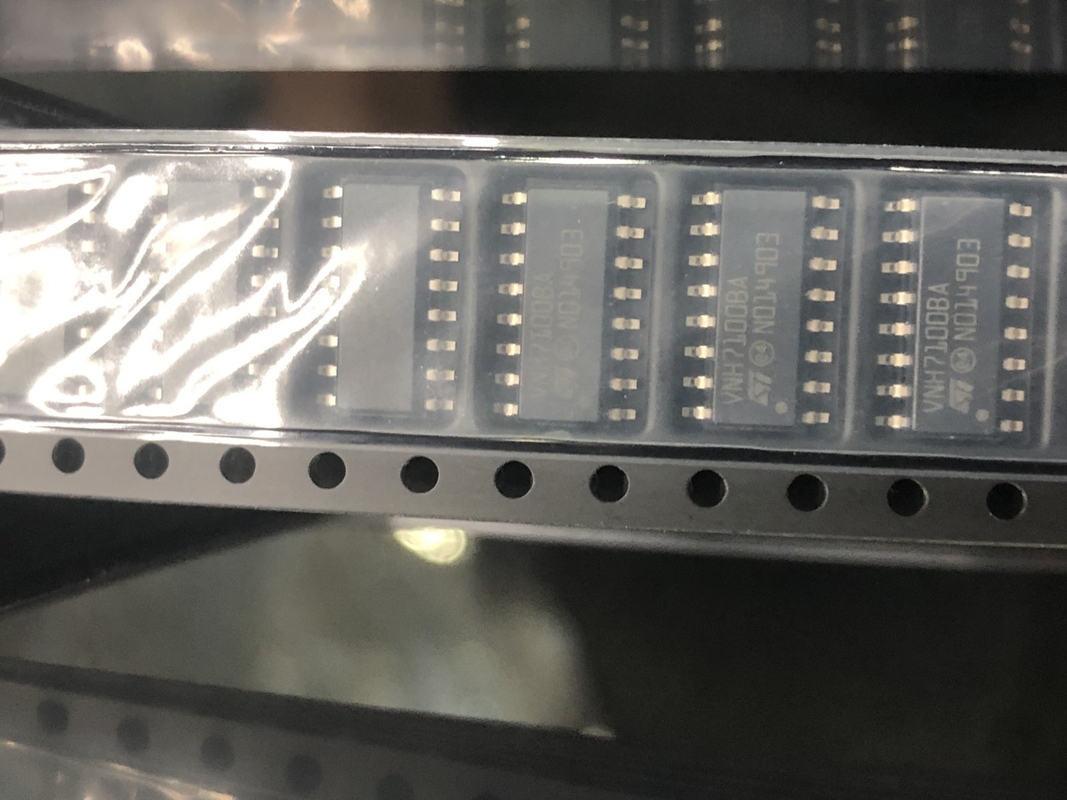

VNH7100BASTR New And Original SOP16 Integrated Circuit
| Product Technical Specifications | |
| EU RoHS | Compliant |
| ECCN (US) | EAR99 |
| Part Status | Active |
| HTS | 8542.39.00.01 |
| Automotive | Yes |
| PPAP | Unknown |
| Type | Motor Driver |
| Control Interface | PWM |
| Output Configuration | H-Bridge |
| Output Voltage (V) | 5(Min) |
| Maximum Output Current (A) | 15 |
| Minimum Operating Supply Voltage (V) | 4 |
| Operating Supply Voltage (V) | 4 to 28 |
| Maximum Operating Supply Voltage (V) | 28 |
| Maximum Operating Current (mA) | 6 |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Temperature (°C) | 150 |
| Packaging | Tape and Reel |
| Mounting | Surface Mount |
| Package Height | 1.6(Max) |
| Package Width | 4(Max) |
| Package Length | 10(Max) |
| PCB changed | 16 |
| Standard Package Name | SO |
| Supplier Package | SO N |
| Pin Count | 16 |
| Lead Shape | Gull-wing |
