Place of Origin:
original
Brand Name:
ST
Model Number:
VNH3SP30TR
Contact Us

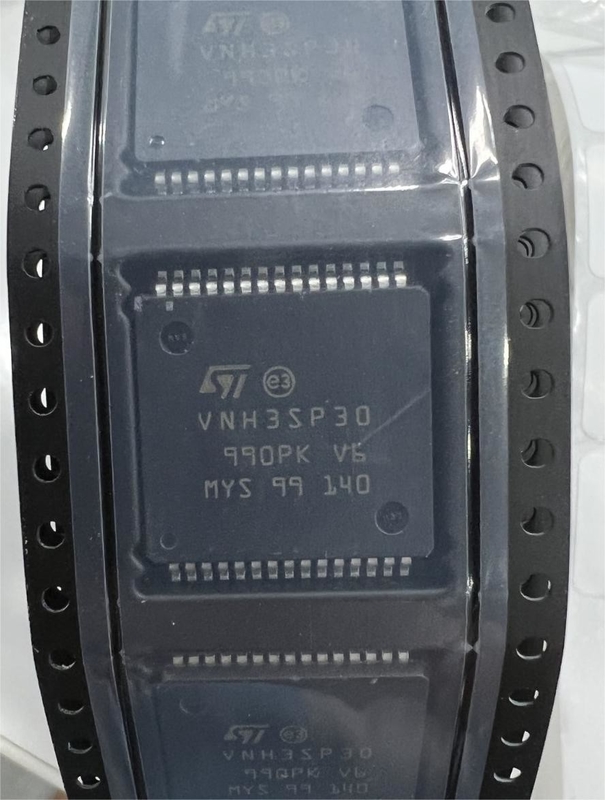

VNH3SP30TR New And Original HSOP-30 Integrated Circuit
| Product Technical Specifications | |
| EU RoHS | Compliant with Exemption |
| ECCN (US) | EAR99 |
| Part Status | Active |
| HTS | 8542.39.00.01 |
| SVHC | Yes |
| SVHC Exceeds Threshold | Yes |
| Automotive | Yes |
| PPAP | Unknown |
| Type | Motor Driver |
| Process Technology | STripFET |
| Output Configuration | H-Bridge |
| Minimum Operating Supply Voltage (V) | 5.5 |
| Operating Supply Voltage (V) | 5.5 to 36 |
| Maximum Operating Supply Voltage (V) | 36 |
| Maximum Operating Current (mA) | 15 |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Temperature (°C) | 150 |
| Supplier Temperature Grade | Automotive |
| Packaging | Tape and Reel |
| Mounting | Surface Mount |
| Package Height | 2.25(Max) |
| Package Width | 16 |
| Package Length | 17.2 |
| PCB changed | 30 |
| Standard Package Name | SOP |
| Supplier Package | MultiPowerSO |
| Pin Count | 30 |
| Lead Shape | Gull-wing |
