Place of Origin:
original
Brand Name:
STMICROELECTRONICS
Model Number:
STM32H723ZGT6
Contact Us

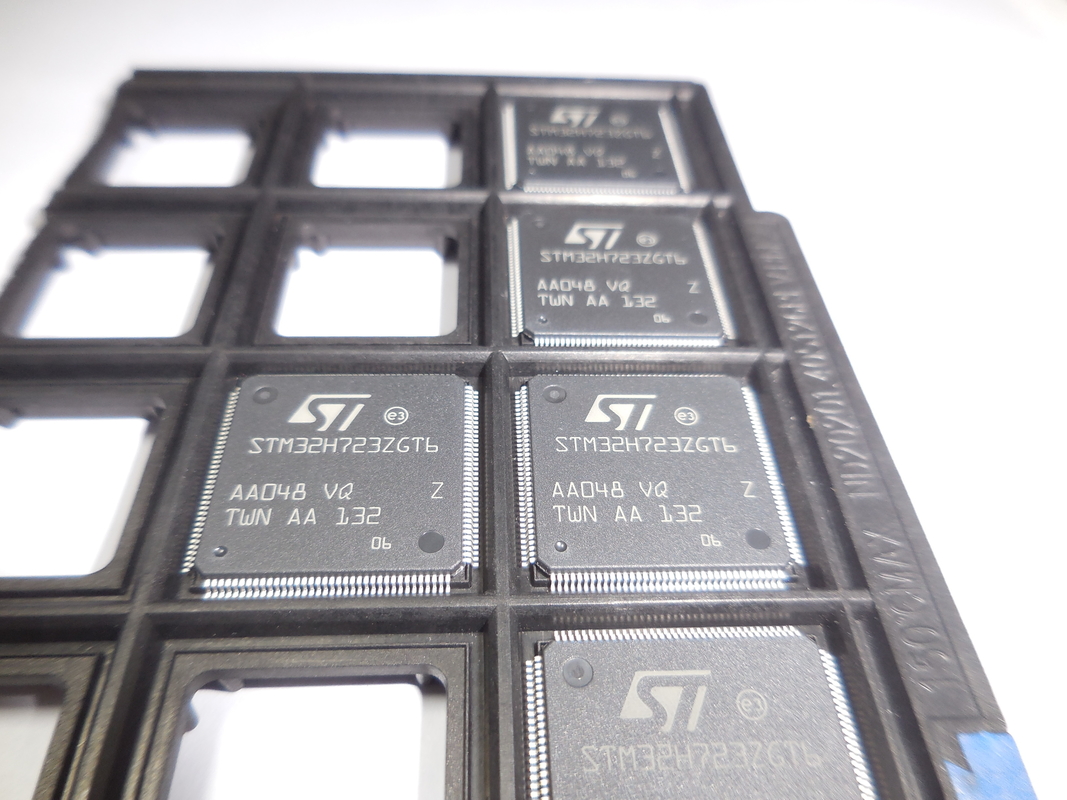

STM32H723ZGT6 New And Original LQFP144 Integrated Circuit
| Product Technical Specifications | |
| EU RoHS | Compliant |
| ECCN (US) | 3A991a.2. |
| Part Status | Active |
| HTS | 8542.31.00.01 |
| Automotive | No |
| PPAP | No |
| Family Name | STM32H |
| Instruction Set Architecture | RISC |
| Device Core | ARM Cortex M7 |
| Core Architecture | ARM |
| Maximum CPU Frequency (MHz) | 550 |
| Maximum Clock Rate (MHz) | 550 |
| Data Bus Width (bit) | 32 |
| Program Memory Type | Flash |
| Program Memory Size | 1MB |
| RAM Size | 564KB |
| Programmability | Yes |
| Process Technology | 40nm |
| Interface Type | CAN/Ethernet/I2C/I2S/SPI/UART/USART/USB |
| Number of I/Os | 112 |
| No. of Timers | 19 |
| Number of ADCs | Triple |
| ADC Channels | 16/14/12 |
| ADC Resolution (bit) | 16/16/12 |
| Number of DACs | Single |
| DAC Channels | 2 |
| DAC Resolution (bit) | 12 |
| USART | 5 |
| UART | 6 |
| USB | 1 |
| SPI | 6 |
| I2C | 5 |
| I2S | 4 |
| CAN | 3 |
| Ethernet | 1 |
| Analog Comparators | 2 |
| Minimum Operating Supply Voltage (V) | 1.62 |
| Typical Operating Supply Voltage (V) | 1.8|2.5|3.3 |
| Maximum Operating Supply Voltage (V) | 3.6 |
| Minimum Operating Temperature (C) | -40 |
| Maximum Operating Temperature (C) | 85 |
| Supplier Temperature Grade | Industrial |
| Packaging | Tray |
| Mounting | Surface Mount |
| Package Height | 1.4 |
| Package Width | 20 |
| Package Length | 20 |
| PCB changed | 144 |
| Standard Package Name | QFP |
| Supplier Package | LQFP |
| Pin Count | 144 |
| Lead Shape | Gull-wing |
