Place of Origin:
original
Brand Name:
TEXAS INSTRUMENTS
Model Number:
SN6501DBVR
Contact Us

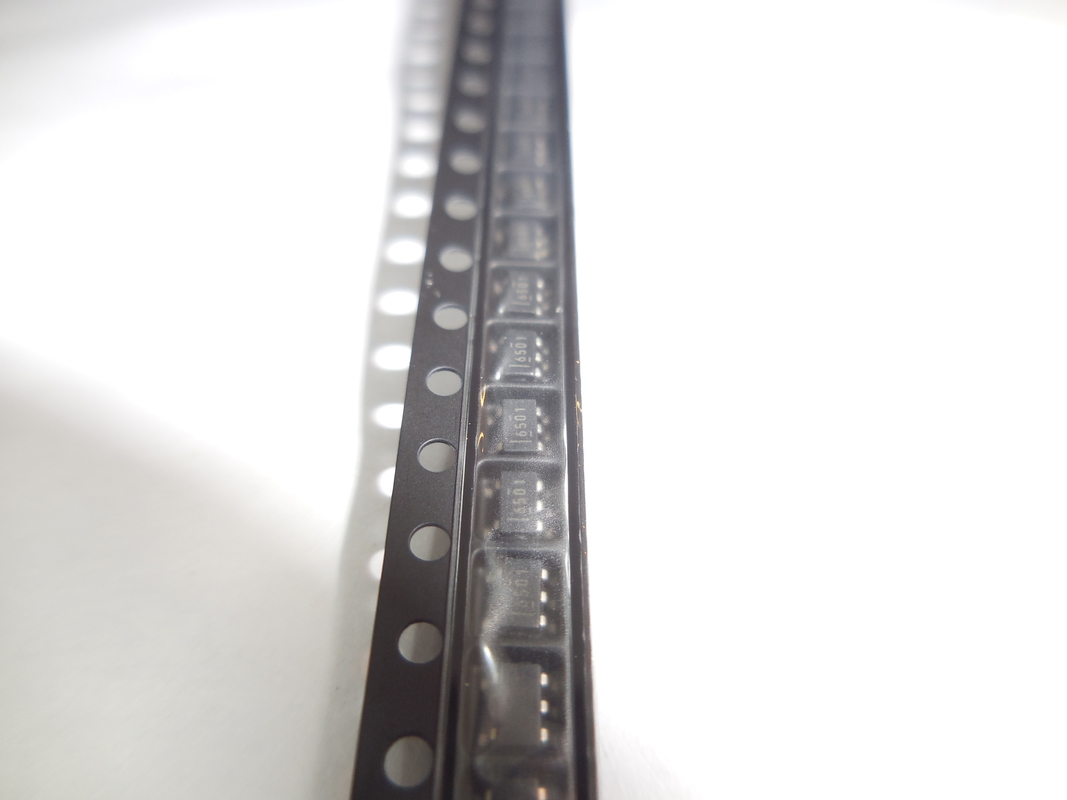

SN6501DBVR New And Original SOT23-5 Integrated Circuit
| Product Technical Specifications | |
| EU RoHS | Compliant |
| ECCN (US) | EAR99 |
| Part Status | Active |
| HTS | 8542.39.00.01 |
| Automotive | No |
| PPAP | No |
| Type | Non-Inverting|Inverting|Step Up|Step Down |
| Isolation | Isolated |
| Output Type | Adjustable |
| Switching Frequency (kHz) | 300 to 620 |
| Switching Regulator | Yes |
| Number of Outputs | 1 |
| Output Voltage (V) | 0 to 11 |
| Maximum Output Current (A) | 0.35 |
| Minimum Input Voltage (V) | 3 |
| Maximum Input Voltage (V) | 5.5 |
| Operating Supply Voltage (V) | 3 to 5.5 |
| Maximum ESD Protection Voltage (kV) | 卤1.5@CDM/卤4@HBM/卤0.2@MM |
| Minimum Operating Temperature (C) | -40 |
| Maximum Operating Temperature (C) | 125 |
| Supplier Temperature Grade | Automotive |
| Packaging | Tape and Reel |
| Mounting | Surface Mount |
| Package Height | 1.1 |
| Package Width | 1.75(Max) |
| Package Length | 3.05(Max) |
| PCB changed | 5 |
| Standard Package Name | SOT |
| Supplier Package | SOT-23 |
| Pin Count | 5 |
| Lead Shape | Gull-wing |
