Place of Origin:
original
Brand Name:
Nexperia
Model Number:

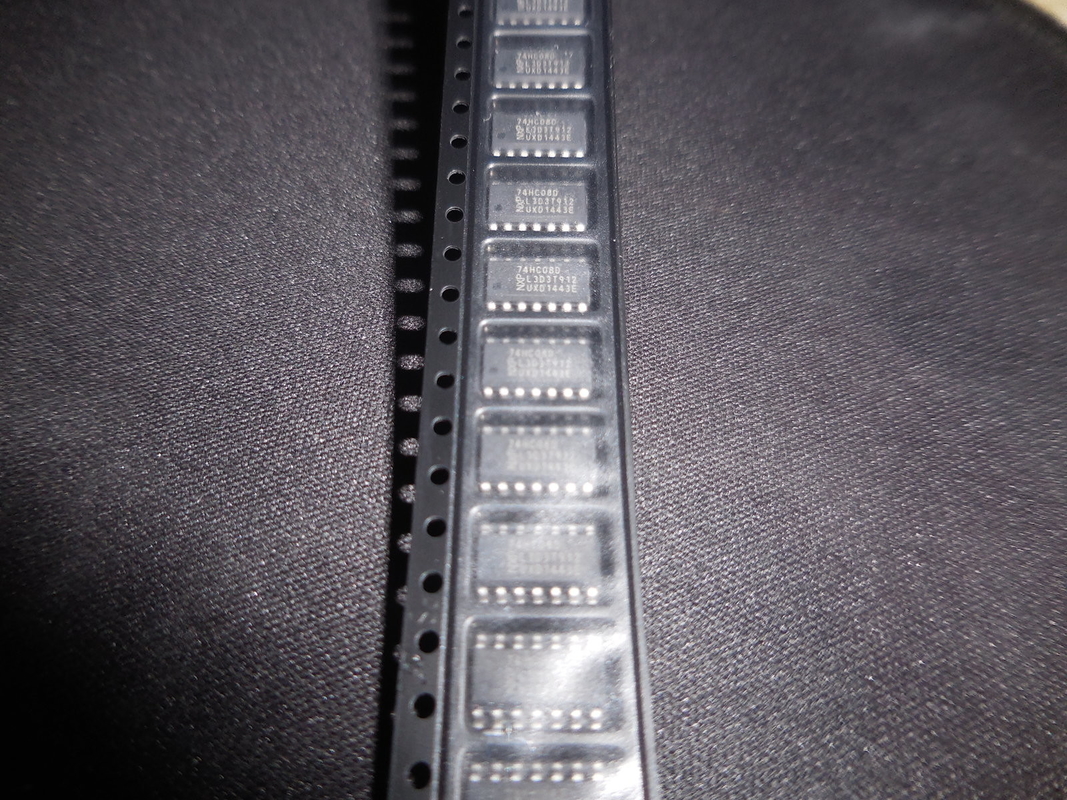

74HC08D
Contact Us
| Product Attribute | Attribute Value |
| Manufacturer: | Nexperia |
| Product Category: | Logic Gates |
| RoHS: | Details |
| Product: | Single-Function Gate |
| Logic Function: | AND |
| Logic Family: | 74HC |
| Number of Gates: | 4 Gate |
| Number of Input Lines: | 2 Input |
| Number of Output Lines: | 1 Output |
| High Level Output Current: | - 5.2 mA |
| Low Level Output Current: | 5.2 mA |
| Propagation Delay Time: | 90 ns |
| Supply Voltage - Max: | 6 V |
| Supply Voltage - Min: | 2 V |
| Minimum Operating Temperature: | - 40 C |
| Maximum Operating Temperature: | + 125 C |
| Mounting Style: | SMD/SMT |
| Package / Case: | SOP-14 |
| Brand: | Nexperia |
| Function: | AND |
| Height: | 1.45 mm |
| Length: | 8.75 mm |
| Logic Type: | Quad AND Gate |
| Operating Supply Voltage: | 5 V |
| Product Type: | Logic Gates |
| Factory Pack Quantity: | 57 |
| Subcategory: | Logic ICs |
| Width: | 4 mm |
| Part # Aliases: | 74HC08D,652 |
| Unit Weight: | 0.008501 oz |
