Place of Origin:
original
Brand Name:
Nexperia
Model Number:

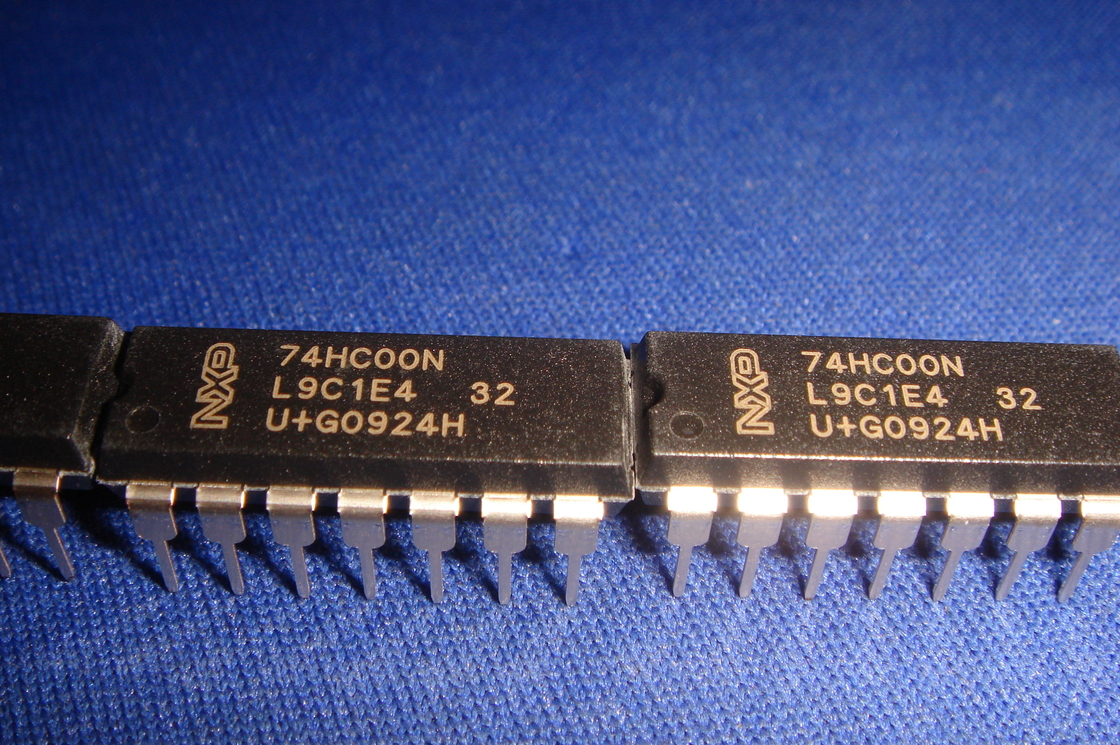

74HC00N
Contact Us
| Product Attribute | Attribute Value |
| Manufacturer: | Nexperia |
| Product Category: | Logic Gates |
| RoHS: | Details |
| Product: | Single-Function Gate |
| Logic Function: | NAND |
| Logic Family: | 74HC |
| Number of Gates: | 4 Gate |
| Number of Input Lines: | 8 Input |
| Number of Output Lines: | 4 Output |
| High Level Output Current: | - 5.2 mA |
| Low Level Output Current: | 5.2 mA |
| Propagation Delay Time: | 7 ns |
| Supply Voltage - Max: | 6 V |
| Supply Voltage - Min: | 2 V |
| Minimum Operating Temperature: | - 40 C |
| Maximum Operating Temperature: | + 125 C |
| Mounting Style: | Through Hole |
| Package / Case: | DIP-14 |
| Packaging: | Tube |
| Brand: | Nexperia |
| Function: | NAND |
| Height: | 3.2 mm (Max) |
| Length: | 19.5 mm (Max) |
| Logic Type: | Quad NAND Gate |
| Operating Supply Voltage: | 2 V to 6 V |
| Product Type: | Logic Gates |
| Factory Pack Quantity: | 1000 |
| Subcategory: | Logic ICs |
| Width: | 6.48 mm (Max) |
| Part # Aliases: | 74HC00N |
| Unit Weight: | 0.071183 oz |
