Place of Origin:
original
Model Number:

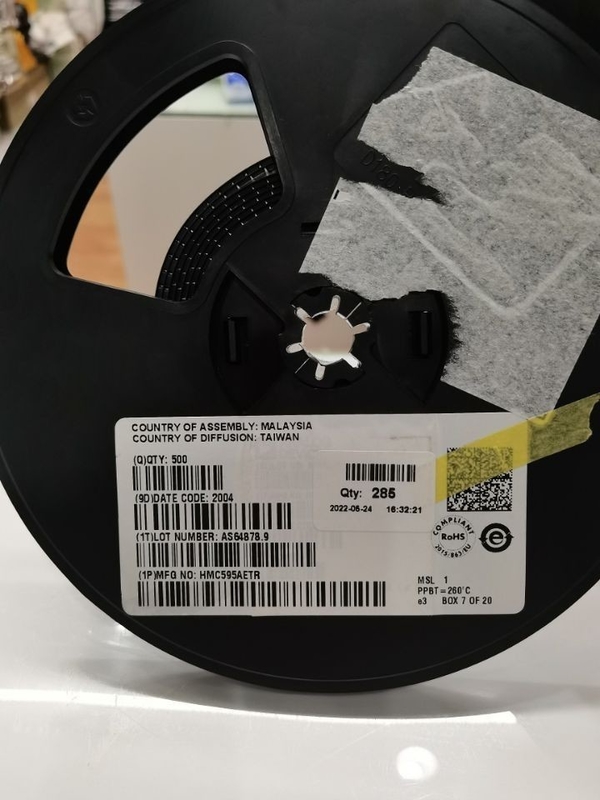

HMC595AETR
Contact Us
| Product Technical Specifications | |
| EU RoHS | Compliant |
| ECCN (US) | EAR99 |
| Part Status | Active |
| HTS | 8542.39.00.01 |
| Automotive | No |
| PPAP | No |
| Switch Type | SPDT |
| Switch Configuration | Single SPDT |
| Number of Switches | 1 |
| Switching Speed (ns) | 50(Typ) |
| Frequency Band (MHz) | 0 to 3000 |
| Maximum Frequency (MHz) | 3000 |
| Minimum Isolation Voltage (dB) | 14 |
| Maximum Insertion Loss (dB) | 0.8 |
| Typical Input 1dB Compressed Power (dBm) | 39 |
| Technology | GaAs MMIC/TTL |
| High Control Voltage (V) | 3 to 8 |
| Maximum Power Dissipation (mW) | 597 |
| Minimum Operating Temperature (C) | -40 |
| Maximum Operating Temperature (C) | 85 |
| Packaging | Tape and Reel |
| Mounting | Surface Mount |
| Package Height | 1.15 |
| Package Width | 1.6 |
| Package Length | 2.9 |
| PCB changed | 6 |
| Standard Package Name | SOT |
| Supplier Package | SOT-23 |
| Pin Count | 6 |
| Lead Shape | Gull-wing |
