Place of Origin:
original
Model Number:
HMC504LC4B
Contact Us
| Product Technical Specifications | |
| EU RoHS | Compliant |
| ECCN (US) | 5A991h. |
| Part Status | Active |
| Automotive | No |
| PPAP | No |
| Manufacturer Type | Low Noise Amplifier |
| Number of Channels per Chip | 1 |
| Maximum Operating Frequency (MHz) | 27000 |
| Typical Power Gain (dB) | 17@27000MHz |
| Typical Output Power (dBm) | 17@27000MHz |
| Typical Output Intercept Point (dBm) | 26@27000MHz |
| Maximum Input Return Loss (dB) | 7(Typ)@27000MHz |
| Maximum Output Return Loss (dB) | 9.5(Typ)@27000MHz |
| Typical Noise Figure (dB) | 4.5@27000MHz |
| Maximum Operating Supply Voltage (V) | 4.5 |
| Typical Single Supply Voltage (V) | 4 |
| Maximum Single Supply Voltage (V) | 4.5 |
| Maximum Supply Current (mA) | 90(Typ)@4V |
| Power Supply Type | Single |
| Maximum Power Dissipation (mW) | 1900 |
| Minimum Operating Temperature (C) | -55 |
| Maximum Operating Temperature (C) | 85 |
| Packaging | Tape and Reel |
| Mounting | Surface Mount |
| Package Height | 1.1 |
| Package Width | 3.9 |
| Package Length | 3.9 |
| PCB changed | 24 |
| Supplier Package | CLLCC EP |
| Pin Count | 24 |

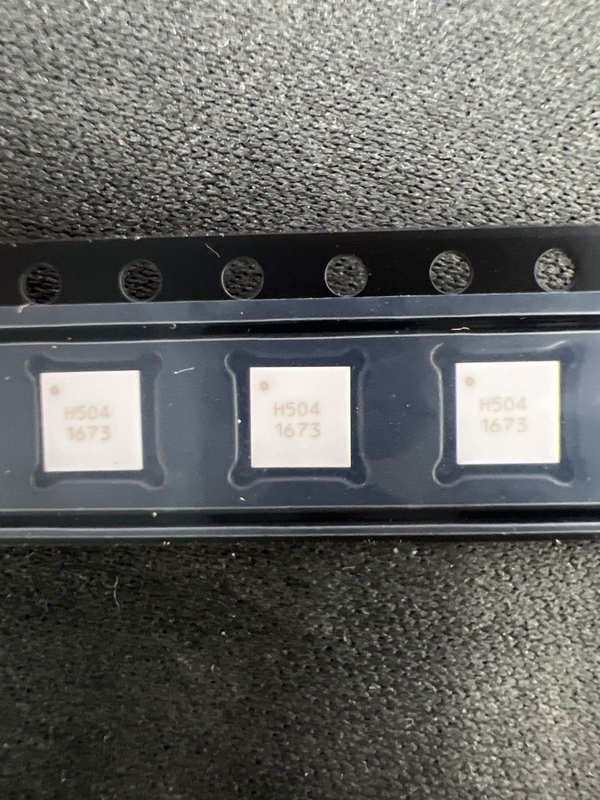

Do your project specifications require a clear ro frequency? If so, look no further than the general purpose amplifier HMC504LC4B buffer amplifier from Analog Devices. Its maximum power dissipation is 1900 mW. This RF amplifier chip has a minimum operating temperature of -55 °C and a maximum of 85 °C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. It has a single channel per chip. This device uses a single power supply.
