Place of Origin:
original
Model Number:

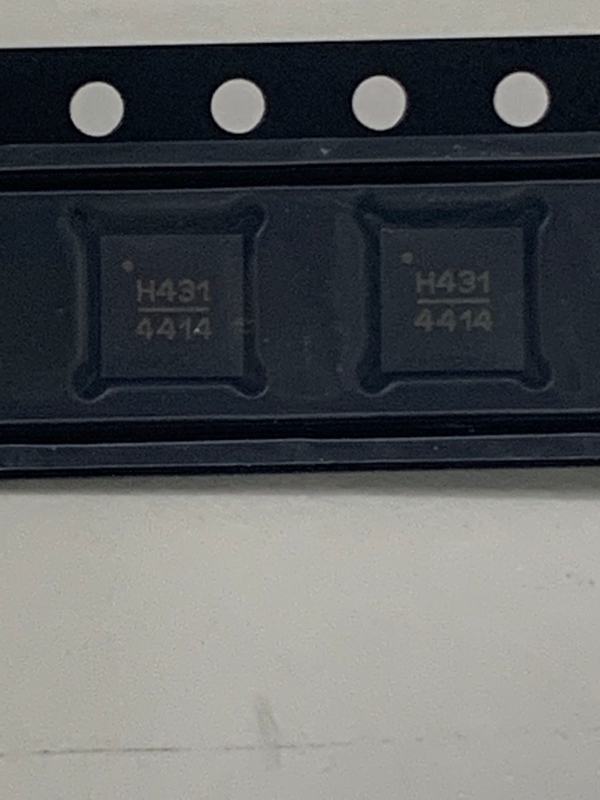

HMC431LP4E
Contact Us
| Product Technical Specifications | |
| EU RoHS | Compliant |
| ECCN (US) | EAR99 |
| Part Status | Active |
| HTS | 8542.33.00.01 |
| Automotive | No |
| PPAP | No |
| Type | Voltage Controlled Oscillator (VCO) |
| Lower Frequency (MHz) | 5500 |
| Upper Frequency (MHz) | 6100 |
| Output Frequency (MHz) | 5500 to 6100 |
| Frequency Range (MHz) | 5500 to 6100 |
| Typical Phase Noise (dBc/Hz) | -102@100KHz |
| Minimum Operating Supply Voltage (V) | 2.75 |
| Maximum Operating Supply Voltage (V) | 3.25 |
| Typical Operating Supply Voltage (V) | 3 |
| Tuning Voltage (V) | 0 to 10 |
| Maximum Supply Current (mA) | 34(Typ) |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Temperature (°C) | 85 |
| Mounting | Surface Mount |
| Package Height | 0.95(Max) |
| Package Width | 4.1(Max) |
| Package Length | 4.1(Max) |
| PCB changed | 24 |
| Standard Package Name | QFN |
| Supplier Package | QFN EP |
| Pin Count | 24 |
| Lead Shape | No Lead |
