Place of Origin:
original
Brand Name:
NEXPERIA
Model Number:
BUK9832-55A
Contact Us
| Product Technical Specifications | |
| EU RoHS | Compliant |
| ECCN (US) | EAR99 |
| Part Status | Active |
| HTS | 8541.40.70.80 |
| SVHC | Yes |
| Automotive | Yes |
| PPAP | Unknown |
| Product Category | Power MOSFET |
| Configuration | Single Dual Drain |
| Process Technology | TMOS |
| Channel Mode | Enhancement |
| Channel Type | N |
| Number of Elements per Chip | 1 |
| Maximum Drain Source Voltage (V) | 55 |
| Maximum Gate Source Voltage (V) | 10 |
| Maximum Continuous Drain Current (A) | 12 |
| Maximum Drain Source Resistance (MOhm) | 29@10V |
| Typical Input Capacitance @ Vds (pF) | 1195@25V |
| Maximum Power Dissipation (mW) | 8000 |
| Typical Fall Time (ns) | 68 |
| Typical Rise Time (ns) | 125 |
| Typical Turn-Off Delay Time (ns) | 64 |
| Typical Turn-On Delay Time (ns) | 14 |
| Minimum Operating Temperature (C) | -55 |
| Maximum Operating Temperature (C) | 150 |
| Supplier Temperature Grade | Automotive |

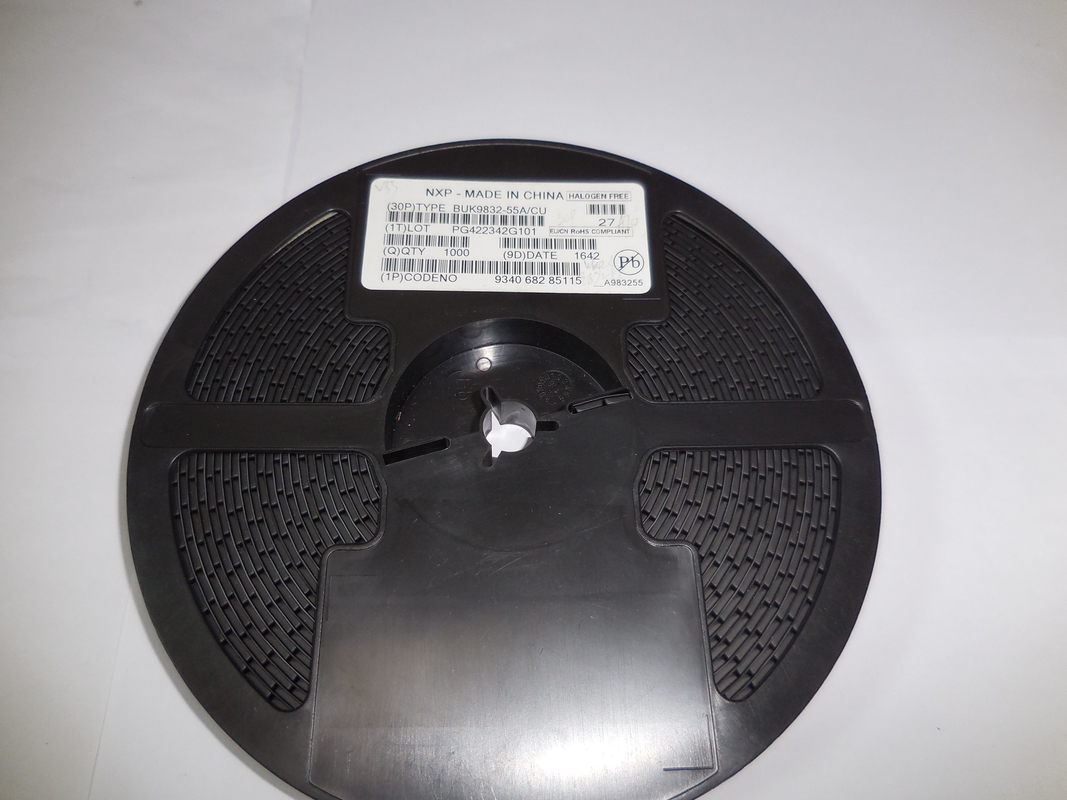

| Packaging | Tape and Reel |
| Mounting | Surface Mount |
| Package Height | 1.7(Max) |
| Package Width | 3.7(Max) |
| Package Length | 6.7(Max) |
| PCB changed | 3 |
| Tab | Tab |
| Supplier Package | SC-73 |
| Pin Count | 4 |
