Place of Origin:
original
Brand Name:
NEXPERIA
Model Number:

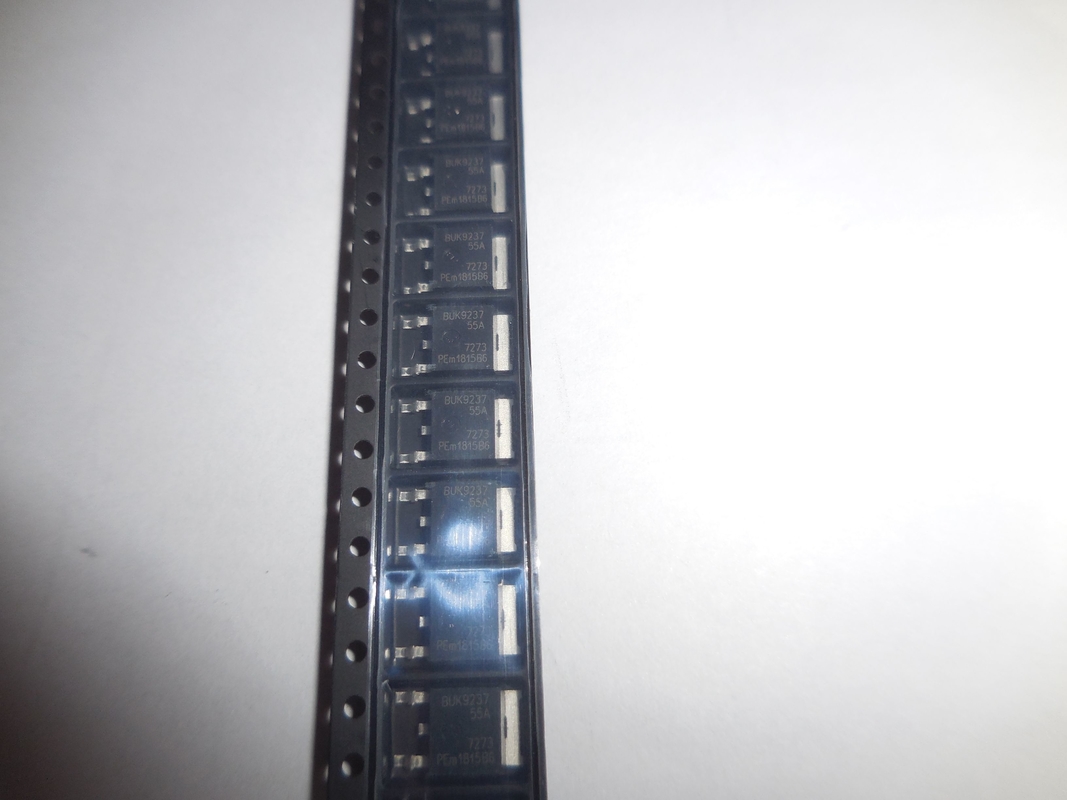

BUK9237-55A
Contact Us
| Product Technical Specifications | |
| EU RoHS | Compliant with Exemption |
| ECCN (US) | EAR99 |
| Part Status | Obsolete |
| HTS | 8541.29.00.95 |
| SVHC | Yes |
| SVHC Exceeds Threshold | Yes |
| Automotive | Yes |
| PPAP | Unknown |
| Product Category | Power MOSFET |
| Configuration | Single |
| Process Technology | TrenchFET |
| Channel Mode | Enhancement |
| Channel Type | N |
| Number of Elements per Chip | 1 |
| Maximum Drain Source Voltage (V) | 55 |
| Maximum Gate Source Voltage (V) | 15 |
| Maximum Gate Threshold Voltage (V) | 2 |
| Maximum Continuous Drain Current (A) | 32 |
| Maximum Gate Source Leakage Current (nA) | 100 |
| Maximum IDSS (uA) | 10 |
| Maximum Drain Source Resistance (MOhm) | 33@10V |
| Typical Gate Charge @ Vgs (nC) | 17.6@5V |
| Typical Input Capacitance @ Vds (pF) | 927@25V |
| Maximum Power Dissipation (mW) | 77000 |
| Typical Fall Time (ns) | 73 |
| Typical Rise Time (ns) | 36 |
| Typical Turn-Off Delay Time (ns) | 95 |
| Typical Turn-On Delay Time (ns) | 6 |
| Minimum Operating Temperature (C) | -55 |
| Maximum Operating Temperature (C) | 175 |
| Packaging | Tape and Reel |
| Mounting | Surface Mount |
| Package Height | 2.38(Max) |
| Package Width | 6.22(Max) |
| Package Length | 6.73(Max) |
| PCB changed | 2 |
| Tab | Tab |
| Supplier Package | DPAK |
| Pin Count | 3 |
