Place of Origin:
original
Brand Name:
NXP
Model Number:

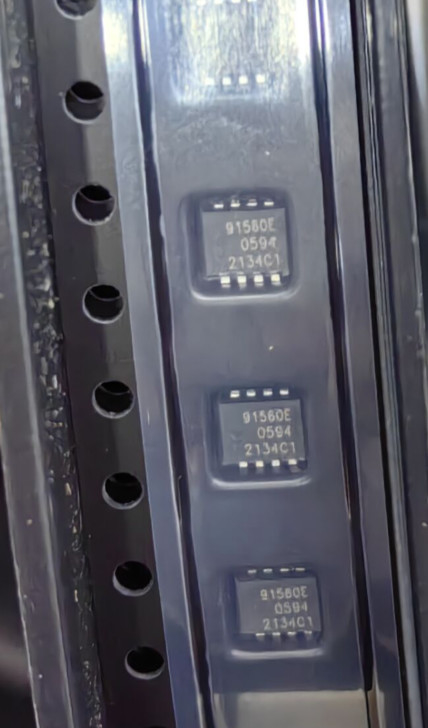

BUK9M15-60E
Contact Us
| Product Technical Specifications | |
| EU RoHS | Compliant with Exemption |
| ECCN (US) | EAR99 |
| Part Status | Active |
| HTS | 8541.29.00.95 |
| SVHC | Yes |
| SVHC Exceeds Threshold | Yes |
| Automotive | Yes |
| PPAP | Unknown |
| Product Category | Power MOSFET |
| Configuration | Single Triple Source |
| Process Technology | TMOS |
| Channel Mode | Enhancement |
| Channel Type | N |
| Number of Elements per Chip | 1 |
| Maximum Drain Source Voltage (V) | 60 |
| Maximum Gate Source Voltage (V) | 10 |
| Maximum Gate Threshold Voltage (V) | 2.1 |
| Maximum Continuous Drain Current (A) | 47 |
| Maximum Gate Source Leakage Current (nA) | 100 |
| Maximum IDSS (uA) | 1 |
| Maximum Drain Source Resistance (MOhm) | 13@10V |
| Typical Gate Charge @ Vgs (nC) | 17@5V |
| Typical Input Capacitance @ Vds (pF) | 1677@25V |
| Typical Reverse Transfer Capacitance @ Vds (pF) | 85@25V |
| Maximum Power Dissipation (mW) | 75000 |
| Typical Fall Time (ns) | 15.4 |
| Typical Rise Time (ns) | 16.9 |
| Typical Turn-Off Delay Time (ns) | 24 |
| Typical Turn-On Delay Time (ns) | 10.3 |
| Minimum Operating Temperature (C) | -55 |
| Maximum Operating Temperature (C) | 175 |
| Supplier Temperature Grade | Automotive |
| Packaging | Tape and Reel |
| Mounting | Surface Mount |
| Package Height | 0.9(Max) |
| Package Width | 2.6 |
| Package Length | 3.4(Max) |
| PCB changed | 8 |
| Supplier Package | LFPAK EP |
| Pin Count | 8 |
