Place of Origin:
original
Brand Name:
NXP
Model Number:

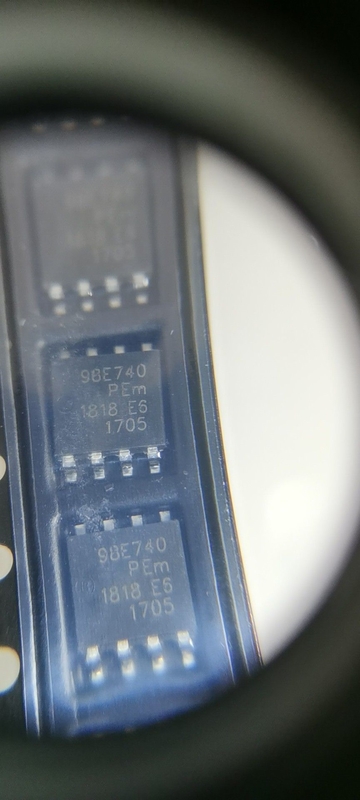

BUK9K8R7-40E
Contact Us
| Product Technical Specifications | |
| EU RoHS | Compliant with Exemption |
| ECCN (US) | EAR99 |
| Part Status | Active |
| HTS | 8541.29.00.95 |
| SVHC | Yes |
| SVHC Exceeds Threshold | Yes |
| Automotive | Yes |
| PPAP | Unknown |
| Product Category | Power MOSFET |
| Configuration | Dual Dual Drain |
| Process Technology | TMOS |
| Channel Mode | Enhancement |
| Channel Type | N |
| Number of Elements per Chip | 2 |
| Maximum Drain Source Voltage (V) | 40 |
| Maximum Gate Source Voltage (V) | 15 |
| Maximum Gate Threshold Voltage (V) | 2.1 |
| Maximum Continuous Drain Current (A) | 30 |
| Maximum Gate Source Leakage Current (nA) | 100 |
| Maximum IDSS (uA) | 1 |
| Maximum Drain Source Resistance (MOhm) | 8@10V |
| Typical Gate Charge @ Vgs (nC) | 15.7@5V |
| Typical Input Capacitance @ Vds (pF) | 1583@25V |
| Maximum Power Dissipation (mW) | 53000 |
| Typical Fall Time (ns) | 18.2 |
| Typical Rise Time (ns) | 19.8 |
| Typical Turn-Off Delay Time (ns) | 20.5 |
| Typical Turn-On Delay Time (ns) | 10.8 |
| Minimum Operating Temperature (C) | -55 |
| Maximum Operating Temperature (C) | 175 |
| Supplier Temperature Grade | Automotive |
| Packaging | Tape and Reel |
| Mounting | Surface Mount |
| Package Height | 1.05(Max) |
| Package Width | 4.7(Max) |
| Package Length | 5.3(Max) |
| PCB changed | 8 |
| Supplier Package | LFPAK-D |
| Pin Count | 8 |
