Place of Origin:
original
Brand Name:
NXP
Model Number:

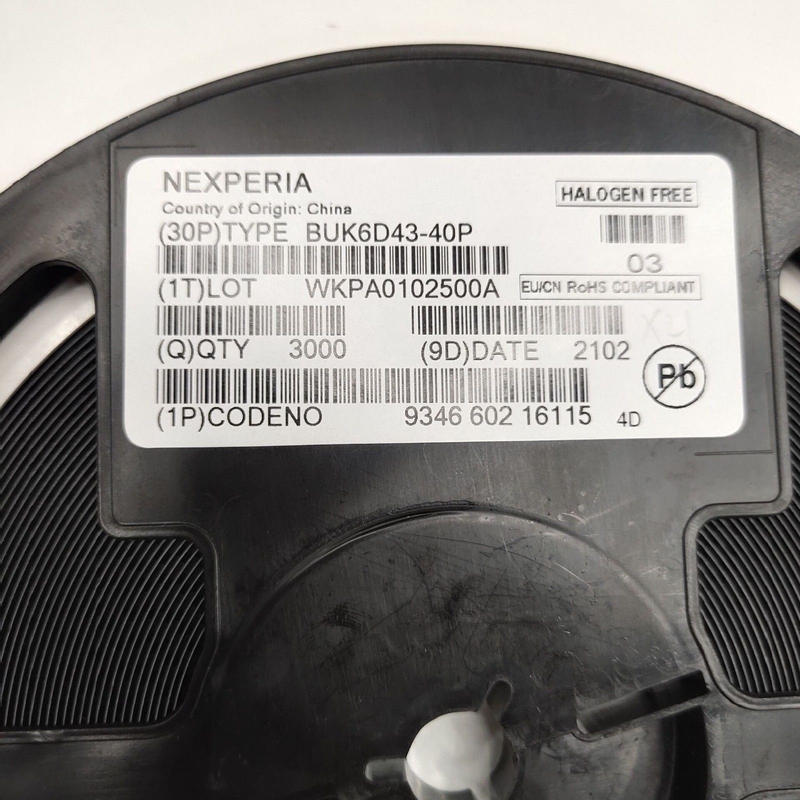

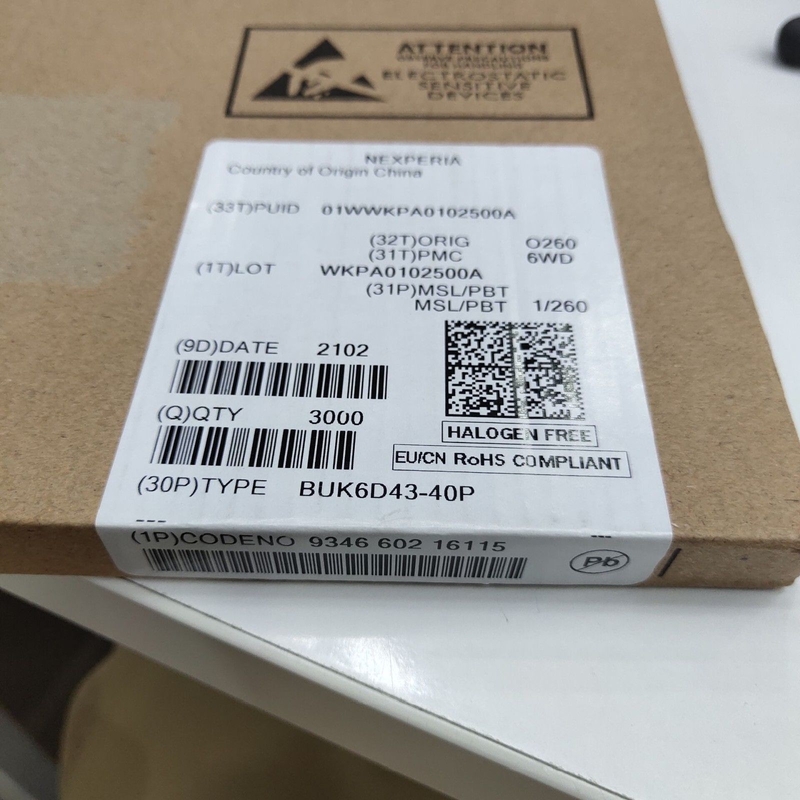

BUK6D43-40P
Contact Us
| Product Technical Specifications | |
| EU RoHS | Compliant |
| ECCN (US) | EAR99 |
| Part Status | Active |
| HTS | 8541.29.00.95 |
| SVHC | Yes |
| Automotive | Yes |
| PPAP | Unknown |
| Product Category | Power MOSFET |
| Configuration | Single Quad Drain |
| Channel Mode | Enhancement |
| Channel Type | P |
| Number of Elements per Chip | 1 |
| Maximum Drain Source Voltage (V) | 40 |
| Maximum Gate Source Voltage (V) | 20 |
| Maximum Gate Threshold Voltage (V) | 2.7 |
| Operating Junction Temperature (C) | -55 to 175 |
| Maximum Continuous Drain Current (A) | 6 |
| Maximum Gate Source Leakage Current (nA) | 100 |
| Maximum IDSS (uA) | 1 |
| Maximum Drain Source Resistance (MOhm) | 43@10V |
| Typical Gate Charge @ Vgs (nC) | 24@10V |
| Typical Gate Charge @ 10V (nC) | 24 |
| Typical Input Capacitance @ Vds (pF) | 1260@20V |
| Minimum Gate Threshold Voltage (V) | 1.4 |
| Typical Output Capacitance (pF) | 106 |
| Maximum Power Dissipation (mW) | 2300 |
| Typical Fall Time (ns) | 14 |
| Typical Rise Time (ns) | 23 |
| Typical Turn-Off Delay Time (ns) | 35 |
| Typical Turn-On Delay Time (ns) | 9 |
| Minimum Operating Temperature (C) | -55 |
| Maximum Operating Temperature (C) | 175 |
| Supplier Temperature Grade | Automotive |
| Packaging | Tape and Reel |
| Maximum Positive Gate Source Voltage (V) | 20 |
| Maximum Pulsed Drain Current @ TC=25C (A) | 56 |
| Maximum Junction Ambient Thermal Resistance on PCB (掳C/W) | 66 |
| Maximum Diode Forward Voltage (V) | 1.2 |
| Mounting | Surface Mount |
| Package Height | 0.61(Max) |
| Package Width | 2.1(Max) |
| Package Length | 2.1(Max) |
| PCB changed | 6 |
| Standard Package Name | DFN |
| Supplier Package | DFN-MD EP |
| Pin Count | 6 |
