Place of Origin:
original
Brand Name:
INFINEON
Model Number:

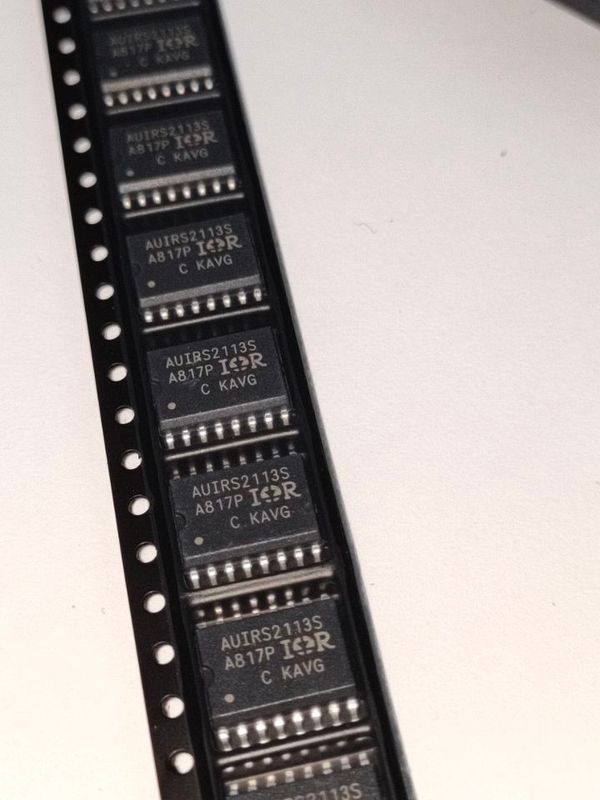

AUIRS2113STR
Contact Us
| Product Technical Specifications | |
| EU RoHS | Compliant聽 |
| ECCN (US) | EAR99 |
| Part Status | Obsolete |
| HTS | 8542.39.00.01 |
| Automotive | Yes |
| PPAP | Unknown |
| Driver Type | High and Low Side |
| Driver Configuration | Non-Inverting |
| Number of Drivers | 2 |
| High and Low Sides Dependency | Independent |
| Type | IGBT|MOSFET |
| Number of Outputs | 2 |
| Maximum Rise Time (ns) | 40 |
| Maximum Fall Time (ns) | 30 |
| Maximum Propagation Delay Time (ns) | 230 |
| Input Logic Compatibility | CMOS|LSTTL |
| Minimum Operating Supply Voltage (V) | 10 |
| Maximum Operating Supply Voltage (V) | 20 |
| Typical Input Low Threshold Voltage (V) | 6(Max) |
| Typical Input High Threshold Voltage (V) | 9.5(Min) |
| Maximum Power Dissipation (mW) | 1250 |
| Minimum Operating Temperature (掳C) | -40 |
| Maximum Operating Temperature (掳C) | 125 |
| Supplier Temperature Grade | Automotive |
| Special Features | Under Voltage Lockout |
| Maximum Turn-On Delay Time (ns) | 35 |
| Maximum Turn-Off Delay Time (ns) | 35 |
| Packaging | Tape and Reel |
| Mounting | Surface Mount |
| Package Height | 2.35(Max) |
| Package Width | 7.6(Max) |
| Package Length | 10.5(Max) |
| PCB changed | 16 |
| Standard Package Name | SO |
| Supplier Package | SOIC W |
| Pin Count | 16 |
| Lead Shape | Gull-wing |
