Place of Origin:
original
Brand Name:
INFINEON
Model Number:

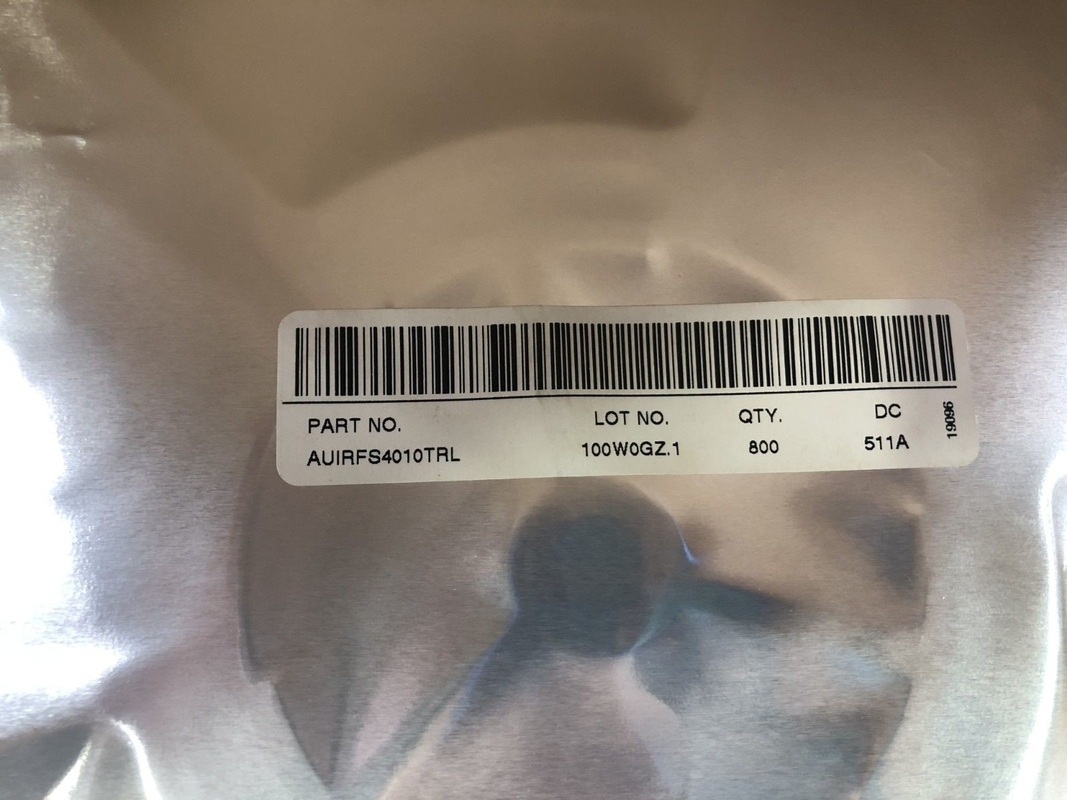

AUIRFS4010TRL
Contact Us
| Product Technical Specifications | |
| EU RoHS | Compliant with Exemption |
| ECCN (US) | EAR99 |
| Part Status | NRND |
| HTS | 8541.29.00.95 |
| SVHC | Yes |
| SVHC Exceeds Threshold | Yes |
| Automotive | Yes |
| PPAP | Unknown |
| Product Category | Power MOSFET |
| Material | Si |
| Configuration | Single |
| Process Technology | HEXFET |
| Channel Mode | Enhancement |
| Channel Type | N |
| Number of Elements per Chip | 1 |
| Maximum Drain Source Voltage (V) | 100 |
| Maximum Gate Source Voltage (V) | ±20 |
| Maximum Gate Threshold Voltage (V) | 4 |
| Maximum Continuous Drain Current (A) | 180 |
| Maximum Drain Source Resistance (MOhm) | 4.7@10V |
| Typical Gate Charge @ Vgs (nC) | 143@10V |
| Typical Gate Charge @ 10V (nC) | 143 |
| Typical Input Capacitance @ Vds (pF) | 9575@50V |
| Maximum Power Dissipation (mW) | 375000 |
| Typical Fall Time (ns) | 77 |
| Typical Rise Time (ns) | 86 |
| Typical Turn-Off Delay Time (ns) | 100 |
| Typical Turn-On Delay Time (ns) | 21 |
| Minimum Operating Temperature (°C) | -55 |
| Maximum Operating Temperature (°C) | 175 |
| Supplier Temperature Grade | Automotive |
| Packaging | Tape and Reel |
| Mounting | Surface Mount |
| Package Height | 4.83(Max) |
| Package Width | 9.65(Max) |
| Package Length | 10.67(Max) |
| PCB changed | 2 |
| Tab | Tab |
| Standard Package Name | TO-263 |
| Supplier Package | D2PAK |
| Pin Count | 3 |
| Lead Shape | Gull-wing |
