Place of Origin:
original
Brand Name:
NXP
Model Number:
TJA1051T
Contact Us

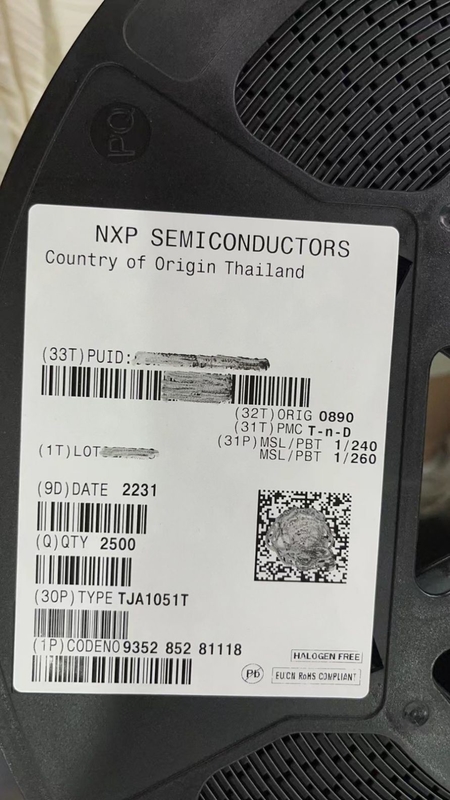

TJA1051T New And Original SOP-8 Integrated Circuit
| Product Technical Specifications | |
| EU RoHS | Compliant |
| ECCN (US) | EAR99 |
| Part Status | NRND |
| HTS | 8542.39.00.01 |
| SVHC | Yes |
| Automotive | Yes |
| PPAP | Yes |
| Product Category | Transceiver |
| Manufacture Type | High Speed CAN Transceiver |
| Maximum Data Rate | 5Mbps |
| Number of Transceivers | 1 |
| Standard Supported | ISO 11898-2|SAE J2284-1|SAE J2284-5 |
| Minimum Operating Supply Voltage (V) | 4.5 |
| Typical Operating Supply Voltage (V) | 5 |
| Maximum Operating Supply Voltage (V) | 5.5 |
| Maximum Supply Current (mA) | 70 |
| Power Down Mode | Normal|Silent |
| Minimum Operating Temperature | -40 |
| Maximum Operating Temperature | 150 |
| Supplier Temperature Grade | Automotive |
| Packaging | Tape and Reel |
| Mounting | Surface Mount |
| Package Height | 1.45(Max) |
| Package Width | 4(Max) |
| Package Length | 5(Max) |
| PCB changed | 8 |
| Standard Package Name | SO |
| Supplier Package | SO |
| Pin Count | 8 |
