Place of Origin:
original
Brand Name:
NXP
Model Number:
TJA1043TK
Contact Us

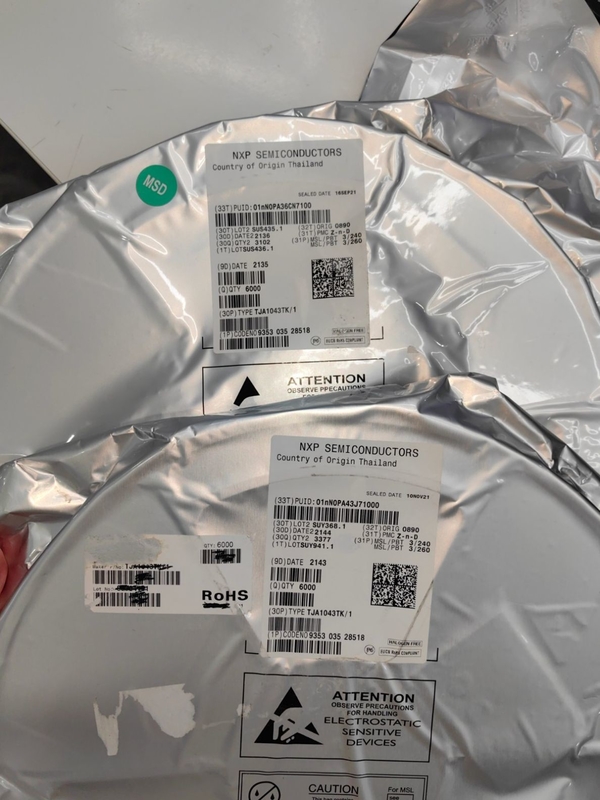

TJA1043TK New And Original HVSON14 Integrated Circuit
| Product Technical Specifications | |
| EU RoHS | Compliant |
| ECCN (US) | EAR99 |
| Part Status | NRND |
| HTS | 8542.39.00.01 |
| Automotive | Yes |
| PPAP | Yes |
| Product Category | Transceiver |
| Manufacture Type | High Speed CAN Transceiver |
| Maximum Data Rate | 5Mbps |
| Number of Transceivers | 1 |
| Standard Supported | ISO 11898-2|ISO 11898-5 |
| Minimum Operating Supply Voltage (V) | 4.5 |
| Typical Operating Supply Voltage (V) | 5 |
| Maximum Operating Supply Voltage (V) | 5.5 |
| Maximum Supply Current (mA) | 65 |
| Power Down Mode | Normal|Sleep|Standby |
| Minimum Operating Temperature | -40 |
| Maximum Operating Temperature | 150 |
| Packaging | Tape and Reel |
| Mounting | Surface Mount |
| Package Height | 0.82 |
| Package Width | 3 |
| Package Length | 4.5 |
| PCB changed | 14 |
| Standard Package Name | SON |
| Supplier Package | HVSON EP |
| Pin Count | 14 |
| Lead Shape | No Lead |
