Place of Origin:
original
Brand Name:
NXP
Model Number:
S912XET256J2MAL
Contact Us

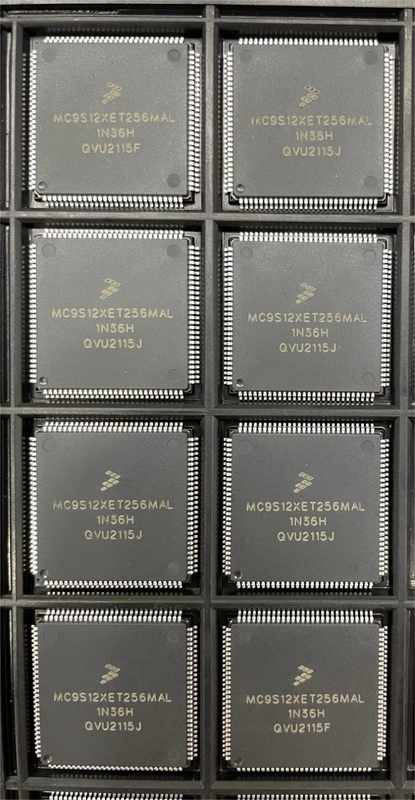

S912XET256J2MAL New And Original LQFP112 Integrated Circuit
| Product Technical Specifications | |
| EU RoHS | Compliant |
| ECCN (US) | 3A991A2 |
| Part Status | Active |
| HTS | 8542.31.00.01 |
| SVHC | Yes |
| Automotive | Yes |
| PPAP | Yes |
| Family Name | S12X |
| Instruction Set Architecture | RISC |
| Device Core | HCS12X |
| Core Architecture | S12 |
| Maximum CPU Frequency (MHz) | 50 |
| Maximum Clock Rate (MHz) | 50 |
| Data Bus Width (bit) | 16 |
| Program Memory Type | Flash |
| Program Memory Size | 256KB |
| RAM Size | 16KB |
| Maximum Expanded Memory Size | 4MB |
| Programmability | Yes |
| Interface Type | CAN/I2C/SCI/SPI |
| Number of I/Os | 91 |
| No. of Timers | 1 |
| PWM | 8 |
| Number of ADCs | Dual |
| ADC Channels | 16/16 |
| ADC Resolution (bit) | |
| USART | 0 |
| UART | 0 |
| USB | 0 |
| SPI | 3 |
| I2C | 2 |
| I2S | 0 |
| CAN | 5 |
| Ethernet | 0 |
| Watchdog | 1 |
| Analog Comparators | 4 |
| Special Features | CAN Controller |
| Minimum Operating Supply Voltage (V) | 1.72|2.7|3.13 |
| Typical Operating Supply Voltage (V) | 1.8|2.8|5 |
| Maximum Operating Supply Voltage (V) | 1.98|2.9|5.5 |
| Minimum Operating Temperature | -40 |
| Maximum Operating Temperature | 125 |
| Packaging | Tray |
| Mounting | Surface Mount |
| Package Height | 1.45(Max) |
| Package Width | 20 |
| Package Length | 20 |
| PCB changed | 112 |
| Standard Package Name | QFP |
| Supplier Package | LQFP |
| Pin Count | 112 |
| Lead Shape | Gull-wing |
