Place of Origin:
original
Brand Name:
NXP
Model Number:
S9S12G48AMLF
Contact Us

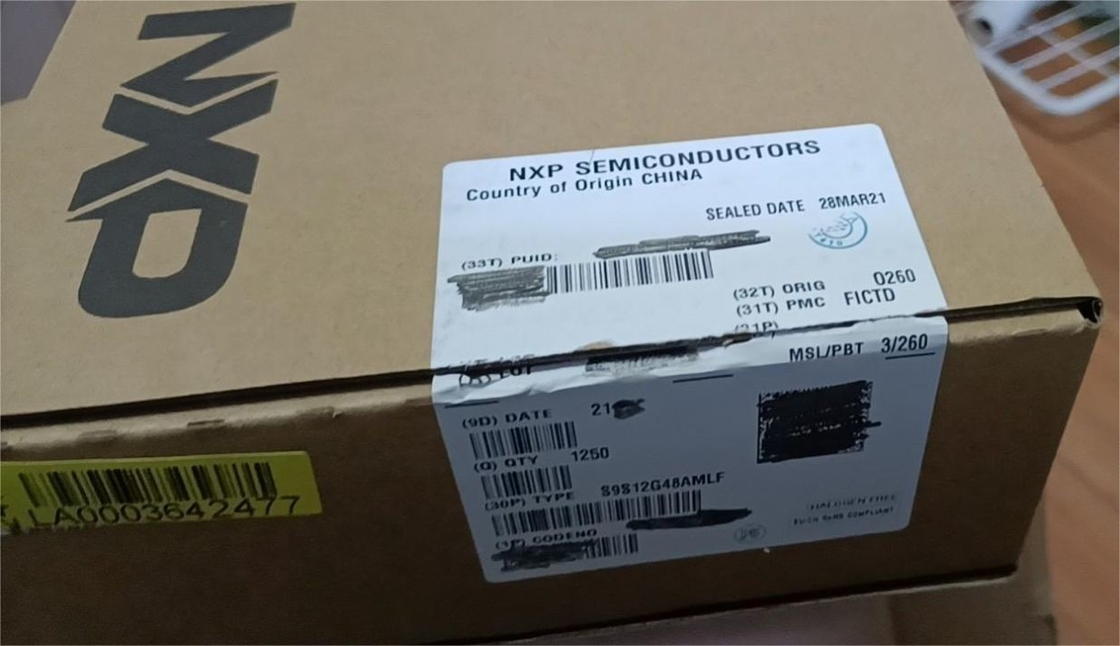

S9S12G48AMLF New And Original LQFP48 Integrated Circuit
| Product Technical Specifications | |
| EU RoHS | Compliant聽 |
| ECCN (US) | 3A991.a.2 |
| Part Status | Active |
| Automotive | Yes |
| PPAP | Yes |
| Family Name | S12 |
| Instruction Set Architecture | CISC |
| Device Core | S12 |
| Core Architecture | S12 |
| Maximum CPU Frequency (MHz) | 25 |
| Maximum Clock Rate (MHz) | 25 |
| Data Bus Width (bit) | 16 |
| Program Memory Type | Flash |
| Program Memory Size | 48KB |
| RAM Size | 4KB |
| Maximum Expanded Memory Size | 256KB |
| Interface Type | CAN/SCI/SPI |
| Number of I/Os | 40 |
| No. of Timers | 1 |
| PWM | 6 |
| Number of ADCs | Single |
| ADC Channels | 12 |
| ADC Resolution (bit) | 10 |
| USART | 0 |
| UART | 0 |
| USB | 0 |
| SPI | 2 |
| I2C | 0 |
| I2S | 0 |
| CAN | 1 |
| Ethernet | 0 |
| Special Features | CAN Controller |
| Minimum Operating Supply Voltage (V) | 3.13 |
| Typical Operating Supply Voltage (V) | 5 |
| Maximum Operating Supply Voltage (V) | 5.5 |
| Minimum Operating Temperature (掳C) | -40 |
| Maximum Operating Temperature (掳C) | 125 |
| Packaging | Tray |
| Mounting | Surface Mount |
| Package Height | 1.45(Max) |
| Package Width | 7 |
| Package Length | 7 |
| PCB changed | 48 |
| Supplier Package | LQFP |
| Pin Count | 48 |
| Lead Shape | Gull-wing |
