Place of Origin:
original
Brand Name:
ON
Model Number:
NCV47711PDAJR2G
Contact Us

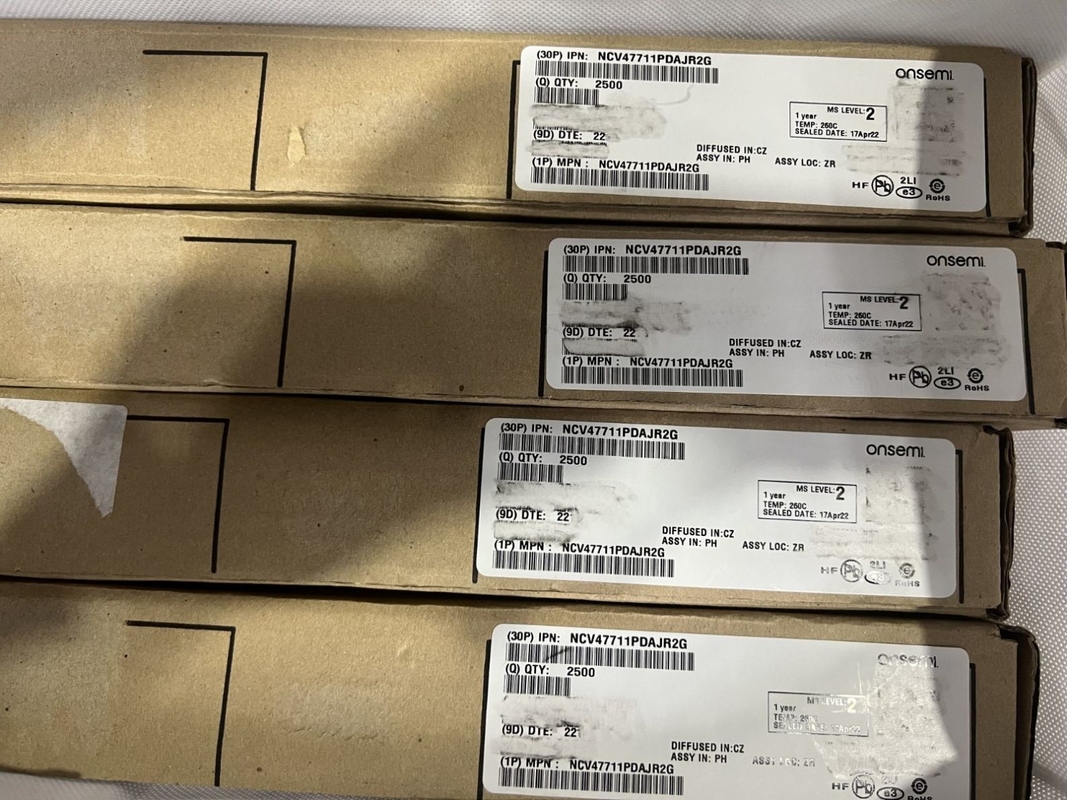

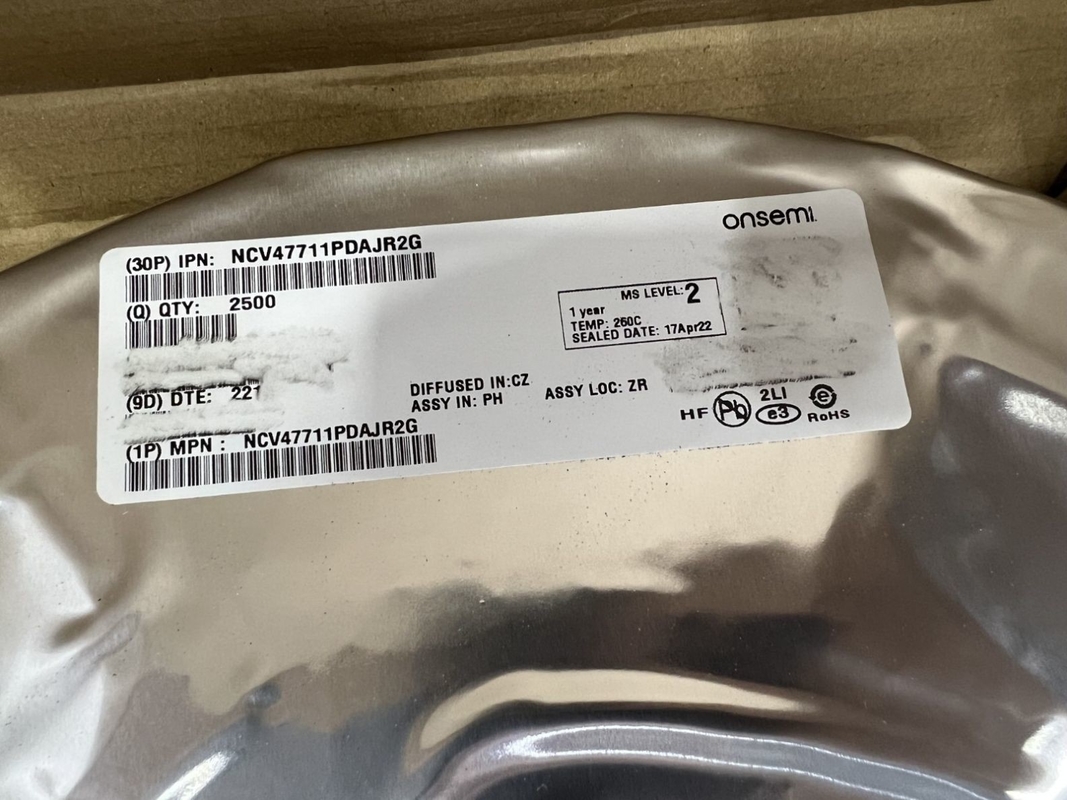

NCV47711PDAJR2G New And Original SOP8 Integrated Circuit
| Product Technical Specifications | |
| EU RoHS | Compliant聽 |
| ECCN (US) | EAR99 |
| Part Status | Active |
| HTS | 8542.39.00.01 |
| Automotive | Yes |
| PPAP | Yes |
| Type | LDO |
| Number of Outputs | 1 |
| Polarity | Positive |
| Accuracy (%) | 卤3 |
| Output Type | Adjustable |
| Output Voltage (V) | 5 to 20 |
| Maximum Output Current (A) | 0.35 |
| Minimum Input Voltage (V) | 5.5 |
| Maximum Input Voltage (V) | 40 |
| Maximum Dropout Voltage @ Current (V) | 0.5@150mA |
| Line Regulation | 0.1%(Typ) |
| Load Regulation | 0.14%(Typ) |
| Maximum Quiescent Current (mA) | 0.23 |
| Junction to Ambient | 70掳C/W |
| Special Features | Current Limit|Thermal Shutdown Protection |
| Minimum Operating Temperature (掳C) | -40 |
| Maximum Operating Temperature (掳C) | 150 |
| Supplier Temperature Grade | Automotive |
| Packaging | Tape and Reel |
| Mounting | Surface Mount |
| Package Height | 1.65(Max) |
| Package Width | 3.9 |
| Package Length | 4.9 |
| PCB changed | 8 |
| Standard Package Name | SO |
| Supplier Package | SOIC EP |
| Pin Count | 8 |
| Lead Shape | Gull-wing |
