Place of Origin:
original
Brand Name:
ON
Model Number:
NCV7725DQBR2
Contact Us

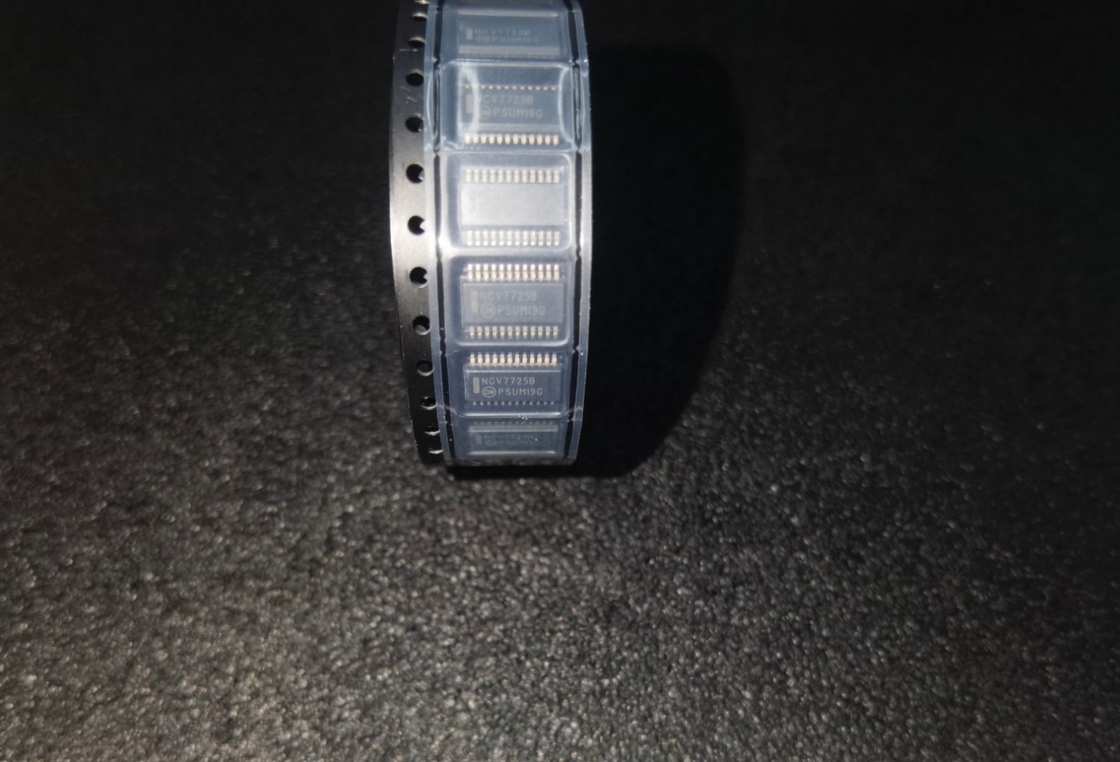

NCV7725DQBR2 New And Original SSOP24 Integrated Circuit
| Product Technical Specifications | ||
| EU RoHS | Compliant聽 | |
| ECCN (US) | EAR99 | |
| Part Status | Active | |
| HTS | 8542.39.00.01 | |
| Automotive | Yes | |
| PPAP | Yes | |
| Type | Motor Driver | |
| Motor Type | DC Motor | |
| Control Interface | PWM | |
| Output Configuration | H-Bridge | |
| Output Voltage (V) | -0.3 to 45 | |
| Maximum Output Current (A) | 0.5 | |
| Maximum Peak Output Current (A) | 1.1 | |
| Minimum Operating Supply Voltage (V) | 3.15 | |
| Operating Supply Voltage (V) | 3.15 to 5.25 | |
| Maximum Operating Supply Voltage (V) | 5.25 | |
| Maximum Operating Current (mA) | 3 | |
| Minimum Operating Temperature (掳C) | -40 | |
| Maximum Operating Temperature (掳C) | 125 | |
| Packaging | Tape and Reel | |
| Mounting | Surface Mount | |
| Package Height | 1.65(Max) | |
| Package Width | 3.9 | |
| Package Length | 8.64 | |
| PCB changed | 24 | |
| Supplier Package | SSOP N EP | |
| Pin Count | 24 |
