Place of Origin:
original
Brand Name:
NXP
Model Number:

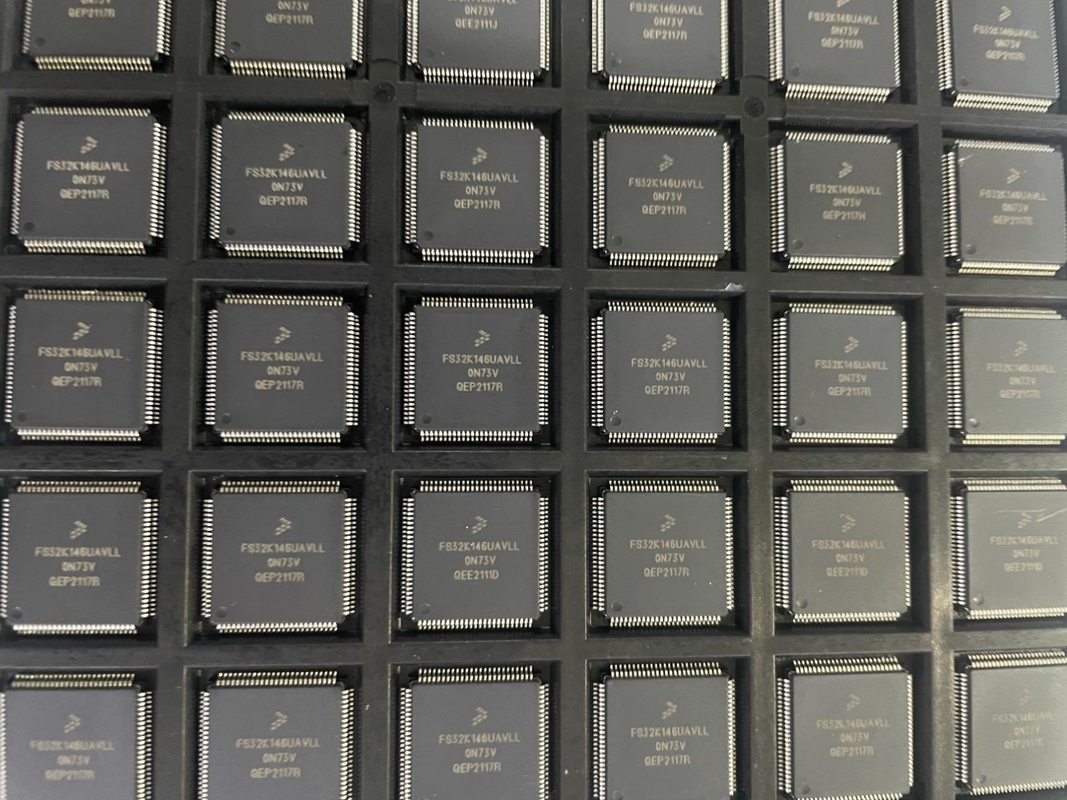

FS32K146UAT0VLLT
Contact Us
| Product Properties | |
| type | describe |
| classification | Integrated Circuit (IC) |
| Embedded | |
| micro controller | |
| manufacturer | NXP USA Inc. |
| series | S32K |
| packing | Tray |
| Product Status | On sale |
| Core processor | ARM® Cortex®-M4F |
| Kernel specifications | 32-bit single core |
| speed | 112MHz |
| Connectivity | CANbus,FlexIO,I²C,LINbus,SPI,UART/USART |
| peripheral | POR,PWM,WDT |
| Number of I/Os | 89 |
| Program storage capacity | 1MB(1M x 8) |
| Program memory type | Flash Memory |
| EEPROM capacity | 4K x 8 |
| RAM size | 128K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Data converter | A/D 24x12b SAR; D/A1x8b |
| Oscillator type | interior |
| working temperature | -40°C ~ 105°C(TA) |
| Installation type | Surface Mount |
| Package/Enclosure | 100-LQFP |
| Supplier Device Packaging | 100-LQFP(14x14) |
| Basic Product Number | FS32K146 |
| Resource Type | interlinkage |
| Specification | S32K1xx |
| Environmental Information | NXP USA Inc RoHS Cert |
| NXP USA Inc REACH | |
| Featured Products | Ticket Vending Machine |
| PCN Design/Specification | S32K1xx 18/Nov/2021 |
| PCN assembly/source | Mult Dev A/T Site 28/Apr/2021 |
| PCN packaging | Mult Dev Pkg Seal 15/Dec/2020 |
| All Dev Label Update 15/Dec/2020 | |
| Environmental and Export Classification | |
| attribute | describe |
| RoHS Status | Comply with ROHS3 specifications |
| REACH status | Non REACH products |
| ECCN | 5A992C |
| HTSUS | 8542.31.0001 |
| attribute | describe |
| Other names | 9.35E+11 |
| Standard packaging | four hundred and fifty |
