Place of Origin:
original
Brand Name:
NXP
Certification:
ISO 9001
Model Number:

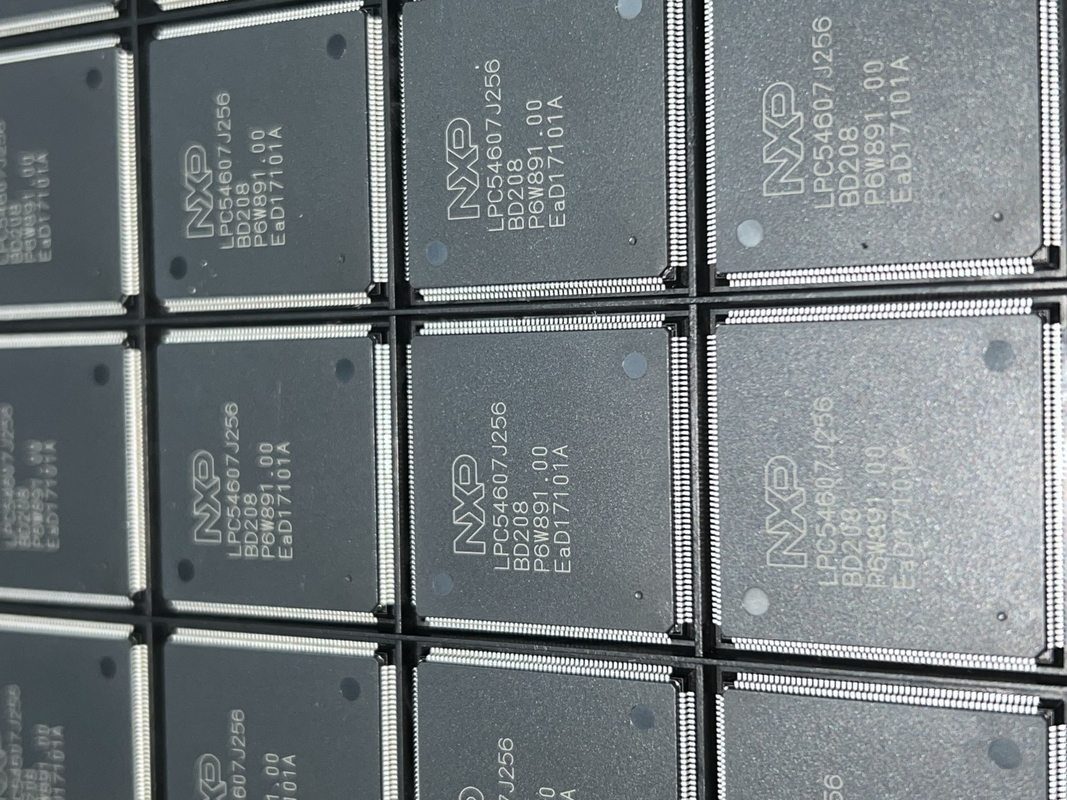

LPC54607J256BD208
Contact Us
| ECCN (US) | 3A991.a.2 |
| Part Status | Active |
| HTS | 8542.31.00.01 |
| SVHC | Yes |
| Automotive | No |
| PPAP | No |
| Family Name | LPC546xx |
| Instruction Set Architecture | RISC |
| Device Core | ARM Cortex M4 |
| Core Architecture | ARM |
| Maximum CPU Frequency (MHz) | 180 |
| Maximum Clock Rate (MHz) | 180 |
| Data Bus Width (bit) | 32 |
| Program Memory Type | Flash |
| Program Memory Size | 256KB |
| RAM Size | 136KB |
| Maximum Expanded Memory Size | 4GB |
| Programmability | Yes |
| Interface Type | I2C/SPI/USART/USB |
| Number of I/Os | 171 |
| No. of Timers | 5 |
| Timers Resolution (bit) | 32 |
| PWM | 1 |
| Number of ADCs | Single |
| ADC Channels | 12 |
| ADC Resolution (bit) | 12 |
| USART | 1 |
| UART | 0 |
| USB | 1 |
| SPI | 1 |
| I2C | 1 |
| I2S | 0 |
| CAN | 0 |
| Ethernet | 0 |
| Watchdog | 1 |
| Analog Comparators | 2 |
| Parallel Master Port | No |
| Special Features | LCD Controller |
| Minimum Operating Supply Voltage (V) | 1.71 |
| Typical Operating Supply Voltage (V) | 3.3 |
| Maximum Operating Supply Voltage (V) | 3.6 |
| Maximum Power Dissipation (mW) | 1200 |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Temperature (°C) | 105 |
| Packaging | Tray |
| Mounting | Surface Mount |
| Package Height | 1.45(Max) |
| Package Width | 28.1(Max) |
| Package Length | 28.1(Max) |
| PCB changed | 208 |
| Standard Package Name | QFP |
| Supplier Package | LQFP |
| Pin Count | 208 |
| Lead Shape | Gull-wing |
