Place of Origin:
original
Brand Name:
NXP
Certification:
ISO 9001
Model Number:

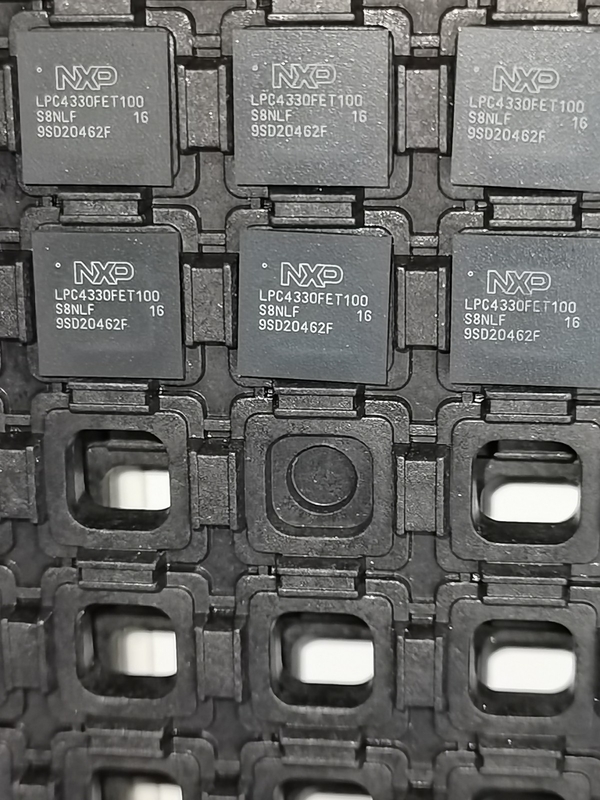

LPC4330FET100
Contact Us
| ECCN (US) | EAR99 |
| Part Status | Unconfirmed |
| HTS | 8542.31.00.01 |
| Automotive | No |
| PPAP | No |
| Family Name | LPC4300 |
| Instruction Set Architecture | RISC |
| Device Core | ARM Cortex M4/M0 |
| Core Architecture | ARM |
| Maximum CPU Frequency (MHz) | 204 |
| Maximum Clock Rate (MHz) | 204 |
| Data Bus Width (bit) | 32 |
| Program Memory Type | ROMLess |
| RAM Size | 264KB |
| Programmability | No |
| Interface Type | CAN/I2C/I2S/Ethernet/SPI/UART/USART/USB |
| Number of I/Os | 49 |
| No. of Timers | 6 |
| PWM | 1 |
| Number of ADCs | Dual |
| ADC Channels | 8/8 |
| ADC Resolution (bit) | 10/10 |
| Number of DACs | Single |
| DAC Channels | 1 |
| DAC Resolution (bit) | 10 |
| USART | 3 |
| UART | 1 |
| USB | 2 |
| SPI | 4 |
| I2C | 2 |
| I2S | 2 |
| CAN | 2 |
| Ethernet | 1 |
| Watchdog | 1 |
| Special Features | CAN Controller |
| Minimum Operating Supply Voltage (V) | 2.2 |
| Typical Operating Supply Voltage (V) | 3.3|2.5 |
| Maximum Operating Supply Voltage (V) | 3.6 |
| Maximum Power Dissipation (mW) | 1500 |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Temperature (°C) | 85 |
| Mounting | Surface Mount |
| Package Height | 0.8(Max) |
| Package Width | 9.1(Max) |
| Package Length | 9.1(Max) |
| PCB changed | 100 |
| Standard Package Name | BGA |
| Supplier Package | TFBGA |
| Pin Count | 100 |
| Lead Shape | Ball |
