Place of Origin:
original
Brand Name:
NXP
Certification:
ISO 9001
Model Number:

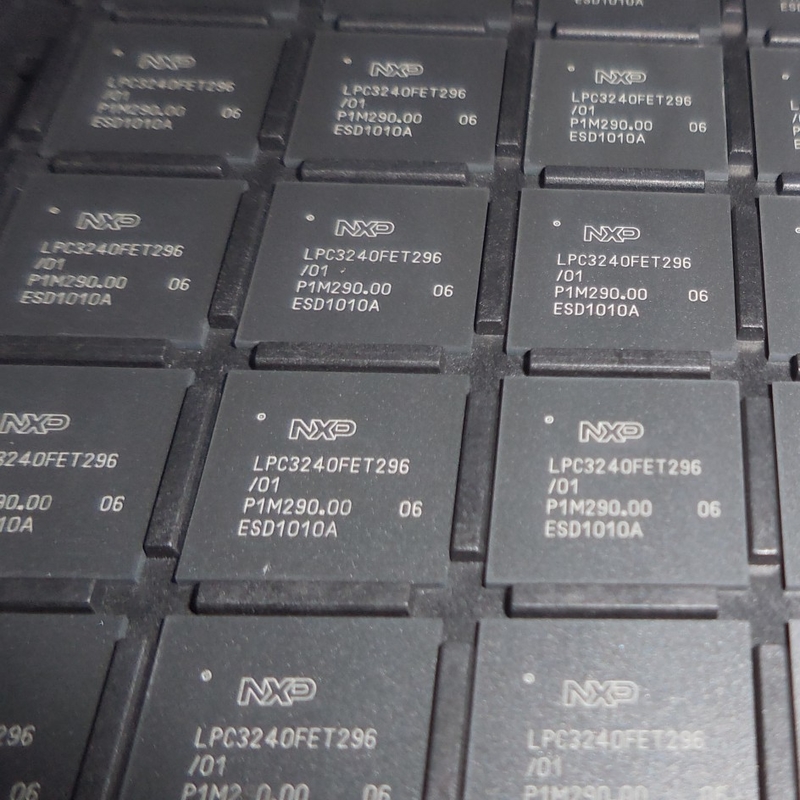

LPC3240FET296
Contact Us
| EU RoHS | Compliant |
| ECCN (US) | 3A991.a.2 |
| Part Status | Unconfirmed |
| Automotive | No |
| PPAP | No |
| Family Name | LPC3000 |
| Instruction Set Architecture | RISC |
| Device Core | ARM926EJ-S |
| Core Architecture | ARM |
| Maximum CPU Frequency (MHz) | 266 |
| Maximum Clock Rate (MHz) | 266 |
| Data Bus Width (bit) | 16|32 |
| Program Memory Type | ROMLess |
| RAM Size | 256KB |
| Programmability | No |
| Interface Type | Ethernet/I2C/I2S/SPI/UART/USB |
| Number of I/Os | 51 |
| No. of Timers | 6 |
| PWM | 2 |
| Number of ADCs | Single |
| ADC Channels | 8 |
| ADC Resolution (bit) | 10 |
| USART | 0 |
| UART | 7 |
| USB | 1 |
| SPI | 2 |
| I2C | 2 |
| I2S | 2 |
| CAN | 0 |
| Ethernet | 1 |
| Watchdog | 1 |
| Minimum Operating Supply Voltage (V) | 0.9|1.7|2.7 |
| Typical Operating Supply Voltage (V) | 1.8|2.5|3.3 |
| Maximum Operating Supply Voltage (V) | 1.39|3.6 |
| Maximum Power Dissipation (mW) | 1120 |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Temperature (°C) | 85 |
| Supplier Temperature Grade | Industrial |
| Mounting | Surface Mount |
| Package Height | 0.8(Max) |
| Package Width | 15.1(Max) |
| Package Length | 15.1(Max) |
| PCB changed | 296 |
| Standard Package Name | BGA |
| Supplier Package | TFBGA |
| Pin Count | 296 |
| Lead Shape | Ball |
