Place of Origin:
original
Brand Name:
NXP
Certification:
ISO 9001
Model Number:

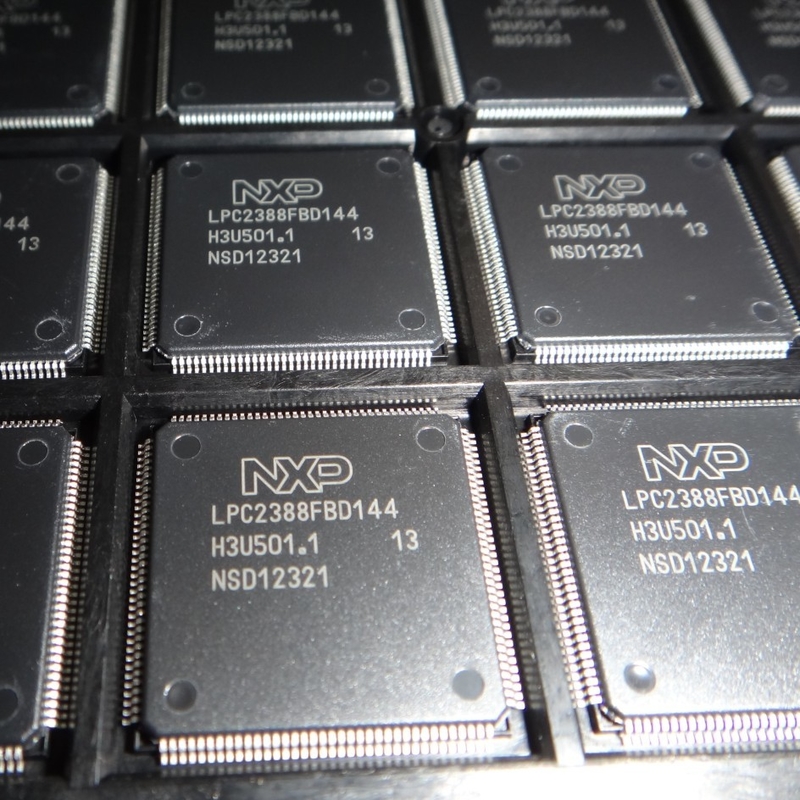

LPC2388FBD144
Contact Us
| EU RoHS | Compliant |
| ECCN (US) | 3A991a.2. |
| Part Status | Active |
| HTS | 8542.31.00.01 |
| SVHC | Yes |
| Automotive | No |
| PPAP | No |
| Family Name | LPC2000 |
| Instruction Set Architecture | RISC |
| Device Core | ARM7TDMI-S |
| Core Architecture | ARM |
| Maximum CPU Frequency (MHz) | 72 |
| Maximum Clock Rate (MHz) | 72 |
| Data Bus Width (bit) | 16|32 |
| Program Memory Type | Flash |
| Program Memory Size | 512KB |
| RAM Size | 98KB |
| Maximum Expanded Memory Size | 4GB |
| Programmability | Yes |
| Interface Type | CAN/Ethernet/I2C/I2S/SPI/UART/USB |
| Number of I/Os | 104 |
| No. of Timers | 4 |
| Timers Resolution (bit) | 32/32/32/32 |
| PWM | 1 |
| Number of ADCs | Single |
| ADC Channels | 8 |
| ADC Resolution (bit) | 10 |
| Number of DACs | Single |
| DAC Channels | 1 |
| DAC Resolution (bit) | 10 |
| USART | 0 |
| UART | 4 |
| USB | 1 |
| SPI | 1 |
| I2C | 3 |
| I2S | 1 |
| CAN | 2 |
| Ethernet | 1 |
| Watchdog | 1 |
| Parallel Master Port | No |
| Real Time Clock | Yes |
| Special Features | CAN Controller |
| Minimum Operating Supply Voltage (V) | 3 |
| Typical Operating Supply Voltage (V) | 3.3 |
| Maximum Operating Supply Voltage (V) | 3.6 |
| Maximum Power Dissipation (mW) | 1500 |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Temperature (°C) | 85 |
| Packaging | Tray |
| Mounting | Surface Mount |
| Package Height | 1.45(Max) |
| Package Width | 20.1(Max) |
| Package Length | 20.1(Max) |
| PCB changed | 144 |
| Standard Package Name | QFP |
| Supplier Package | LQFP |
| Pin Count | 144 |
| Lead Shape | Gull-wing |
