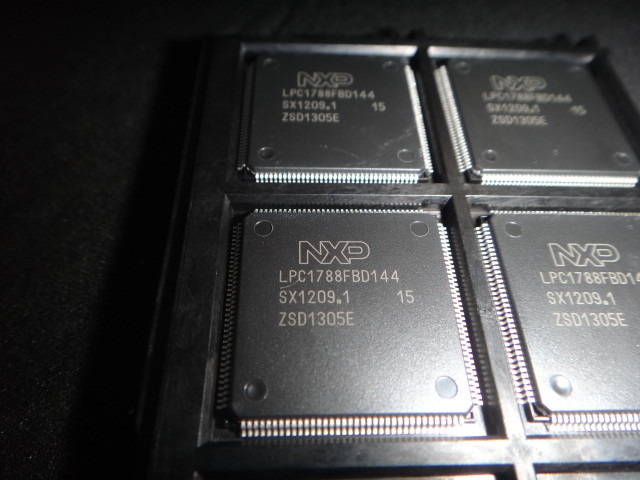

Name: LPC1788FBD144 QFP144 Integrated Circuit Chip IC Microcontroller Brand New Original Unused
Brand: NXP
SKU: LPC1788FBD144
Rating: 4.6 (128 reviews)

Home > Products > NXP IC Chip >

LPC1788FBD144 QFP144 Integrated Circuit Chip IC Microcontroller Brand New Original Unused

Place of Origin:

original

Brand Name:

NXP

Certification:

ISO 9001

Model Number:

LPC1788FBD144

Request A Quote

Product Details

Manufacturer::

NXP

Package / Box::

QFP144

Payment & Shipping Terms

Minimum Order Quantity

Packaging Details

QFP144

Delivery Time

Stock

8000+

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

165230

MCIMX536AVV8C Microcontroller Integrated Circuit BGA529

Get Best Price

Video

MCIMX535DVV1C Microcontroller IC BGA529 FREESCALE

Get Best Price

Video

MCIMX357CVM5B Microcontroller Integrated Circuit BGA400

Get Best Price

Video

MCIMX515DJM8C Microcontroller Chip BGA529

Get Best Price

+8613380499166

kezhiwei@lianyixinic.com

Contact Now

Product Description

ISO9001.pdf

Product Technical Specifications

EU RoHS	Compliant聽
ECCN (US)	EAR99
Part Status	Unconfirmed
SVHC	Yes
Automotive	Yes
PPAP	Yes
Family Name	LPC1700
Instruction Set Architecture	RISC
Device Core	ARM Cortex M3
Core Architecture	ARM
Maximum CPU Frequency (MHz)	120
Maximum Clock Rate (MHz)	120
Data Bus Width (bit)	32
Program Memory Type	Flash
Program Memory Size	512KB
RAM Size	96KB
Maximum Expanded Memory Size	1GB
Programmability	Yes
Interface Type	CAN/Ethernet/I2C/I2S/UART/USB
Number of I/Os	165
No. of Timers	4
PWM	2
Number of ADCs	Single
ADC Channels	8
ADC Resolution (bit)	12
Number of DACs	Single
DAC Channels	1
DAC Resolution (bit)	10
USART	0
UART	5
USB	1
SPI	0
I2C	3
I2S	1
CAN	2
Ethernet	1
Watchdog	1
Minimum Operating Supply Voltage (V)	2.4
Typical Operating Supply Voltage (V)	3.3
Maximum Operating Supply Voltage (V)	3.6
Maximum Power Dissipation (mW)	1500
Minimum Operating Temperature (掳C)	-40
Maximum Operating Temperature (掳C)	85
Mounting	Surface Mount
Package Height	1.45(Max)
Package Width	20.1(Max)
Package Length	20.1(Max)
PCB changed	144
Standard Package Name	QFP
Supplier Package	LQFP
Pin Count	144
Lead Shape	Gull-wing
