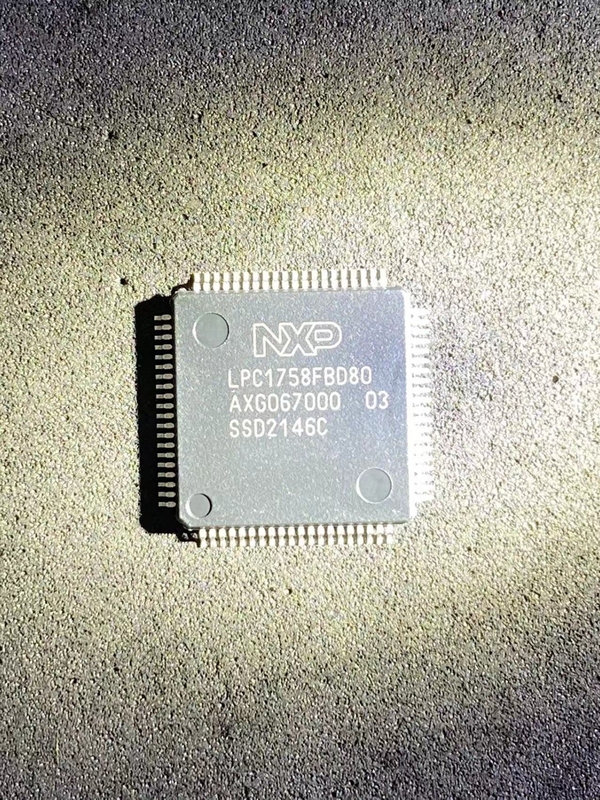

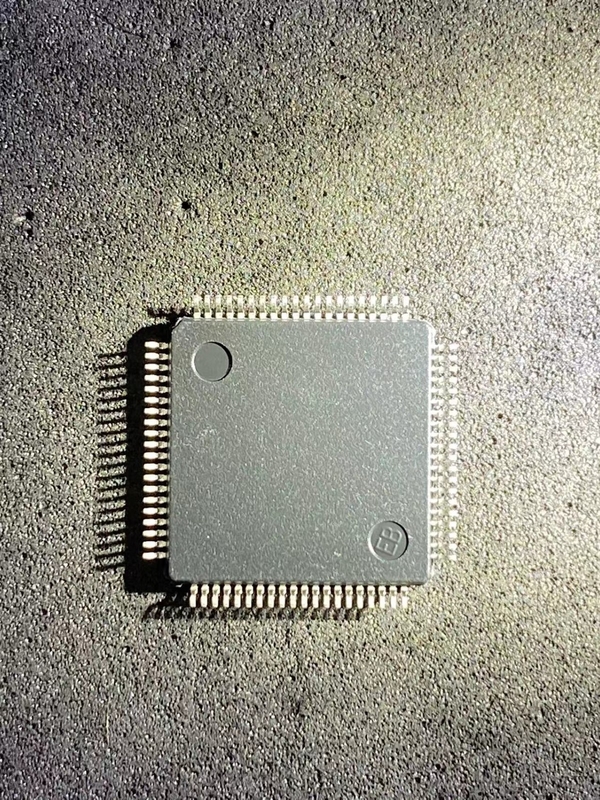

Name: LPC1758FBD80 QFP80 Integrated Circuit Chip IC Microcontroller Brand New Original Unused
Brand: HK LIANYIXIN INDUSTRIAL CO., LIMITED
SKU: LPC1758FBD80
Price: Negotiable USD
Availability: InStock

Home > Products > NXP IC Chip >

LPC1758FBD80 QFP80 Integrated Circuit Chip IC Microcontroller Brand New Original Unused

Place of Origin:

original

Brand Name:

NXP

Certification:

ISO 9001

Model Number:

LPC1758FBD80

Request A Quote

Product Details

Manufacturer::

NXP

Package / Box::

QFP80

Payment & Shipping Terms

Minimum Order Quantity

Packaging Details

2000

Delivery Time

Stock

8000+

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

165230

MCIMX536AVV8C Microcontroller Integrated Circuit BGA529

Get Best Price

Video

MCIMX535DVV1C Microcontroller IC BGA529 FREESCALE

Get Best Price

Video

MCIMX357CVM5B Microcontroller Integrated Circuit BGA400

Get Best Price

Video

MCIMX515DJM8C Microcontroller Chip BGA529

Get Best Price

+8613380499166

kezhiwei@lianyixinic.com

Contact Now

Product Description

ISO9001.pdf

Product Technical Specifications

EU RoHS	Compliant聽
ECCN (US)	EAR99
Part Status	Active
HTS	8542.31.00.01
SVHC	Yes
Automotive	No
PPAP	No
Family Name	LPC1700
Instruction Set Architecture	RISC
Device Core	ARM Cortex M3
Core Architecture	ARM
Maximum CPU Frequency (MHz)	100
Maximum Clock Rate (MHz)	100
Data Bus Width (bit)	32
Program Memory Type	Flash
Program Memory Size	512KB
RAM Size	64KB
Data Memory Size	64KB
Programmability	Yes
Interface Type	CAN/Ethernet/I2C/I2S/SPI/UART/USB
Number of I/Os	52
No. of Timers	4
Timers Resolution (bit)	32
PWM	2
Number of ADCs	Single
ADC Channels	6
ADC Resolution (bit)	12
Number of DACs	Single
DAC Channels	1
DAC Resolution (bit)	10
USART	0
UART	4
USB	1
SPI	1
I2C	2
I2S	2
CAN	2
Ethernet	1
Watchdog	1
Special Features	CAN Controller
Minimum Operating Supply Voltage (V)	2.4
Typical Operating Supply Voltage (V)	2.5\|3.3
Maximum Operating Supply Voltage (V)	3.6
Maximum Power Dissipation (mW)	1500
Minimum Operating Temperature (掳C)	-40
Maximum Operating Temperature (掳C)	85
Packaging	Tray
Mounting	Surface Mount
Package Height	1.5(Max)
Package Width	12.1(Max)
Package Length	12.1(Max)
PCB changed	80
Standard Package Name	QFP
Supplier Package	LQFP
Pin Count	80
Lead Shape	Gull-wing
