Place of Origin:
original
Brand Name:
TI
Model Number:

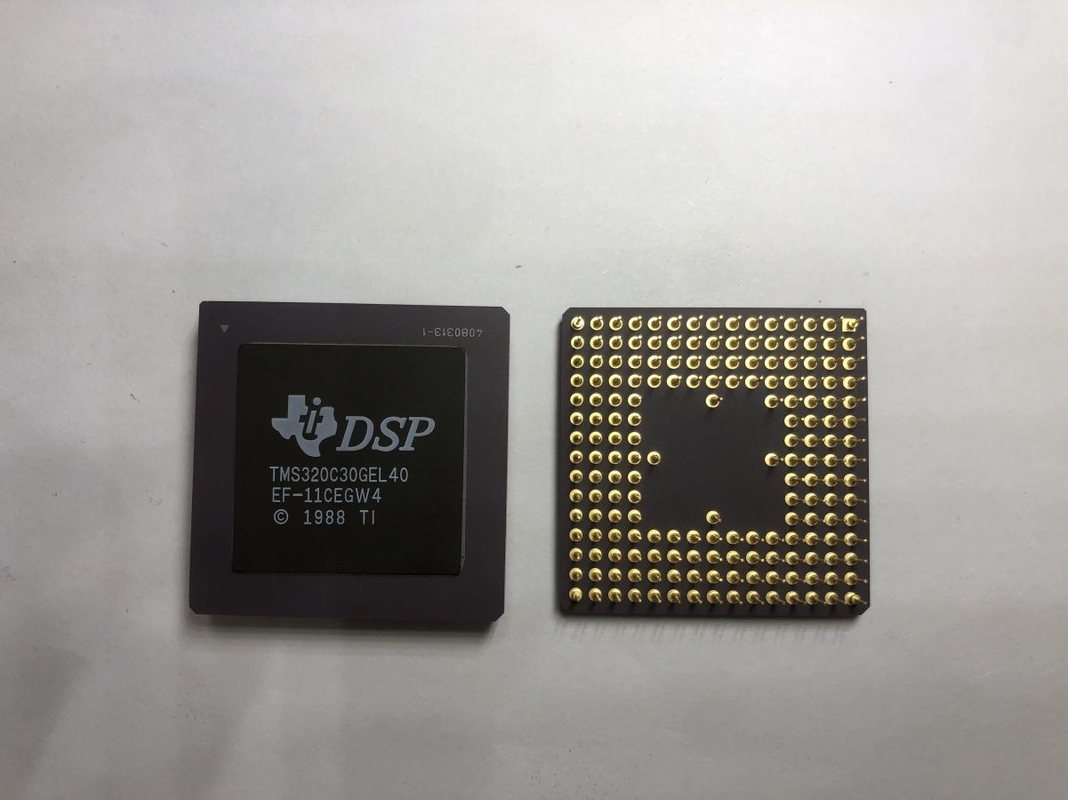

TMS320C30GEL
Contact Us
| Product Technical Specifications | |
| EU RoHS | Not Compliant |
| ECCN (US) | 3A991.a.2 |
| Part Status | Obsolete |
| HTS | 8542330001 |
| Automotive | No |
| PPAP | No |
| Family Name | TMS320 |
| Numeric and Arithmetic Format | Floating-Point |
| Data Bus Width (bit) | 32 |
| Device Million Instructions per Second (MIPS) | 25 |
| Program Memory Type | ROM |
| Program Memory Size | 16KB |
| RAM Size | 8KB |
| Programmability | Yes |
| Device Input Clock Speed (MHz) | 50 |
| USART | 0 |
| UART | 0 |
| USB | 0 |
| SPI | 0 |
| I2C | 0 |
| I2S | 0 |
| CAN | 0 |
| Ethernet | 0 |
| Minimum Operating Supply Voltage (V) | 4.75 |
| Typical Operating Supply Voltage (V) | 5 |
| Maximum Operating Supply Voltage (V) | 5.25 |
| Minimum High Level Output Voltage (V) | 2.4 |
| Maximum Low Level Output Voltage (V) | 0.6 |
| Maximum Power Dissipation (mW) | 3150 |
| Minimum Operating Temperature (°C) | 0 |
| Maximum Operating Temperature (°C) | 85 |
| Mounting | Through Hole |
| Package Width | 40.4(Max) |
| Package Length | 40.4(Max) |
| PCB changed | 181 |
| Standard Package Name | PGA |
| Supplier Package | CPGA |
| Pin Count | 181 |
| Lead Shape | Through Hole |
